Description

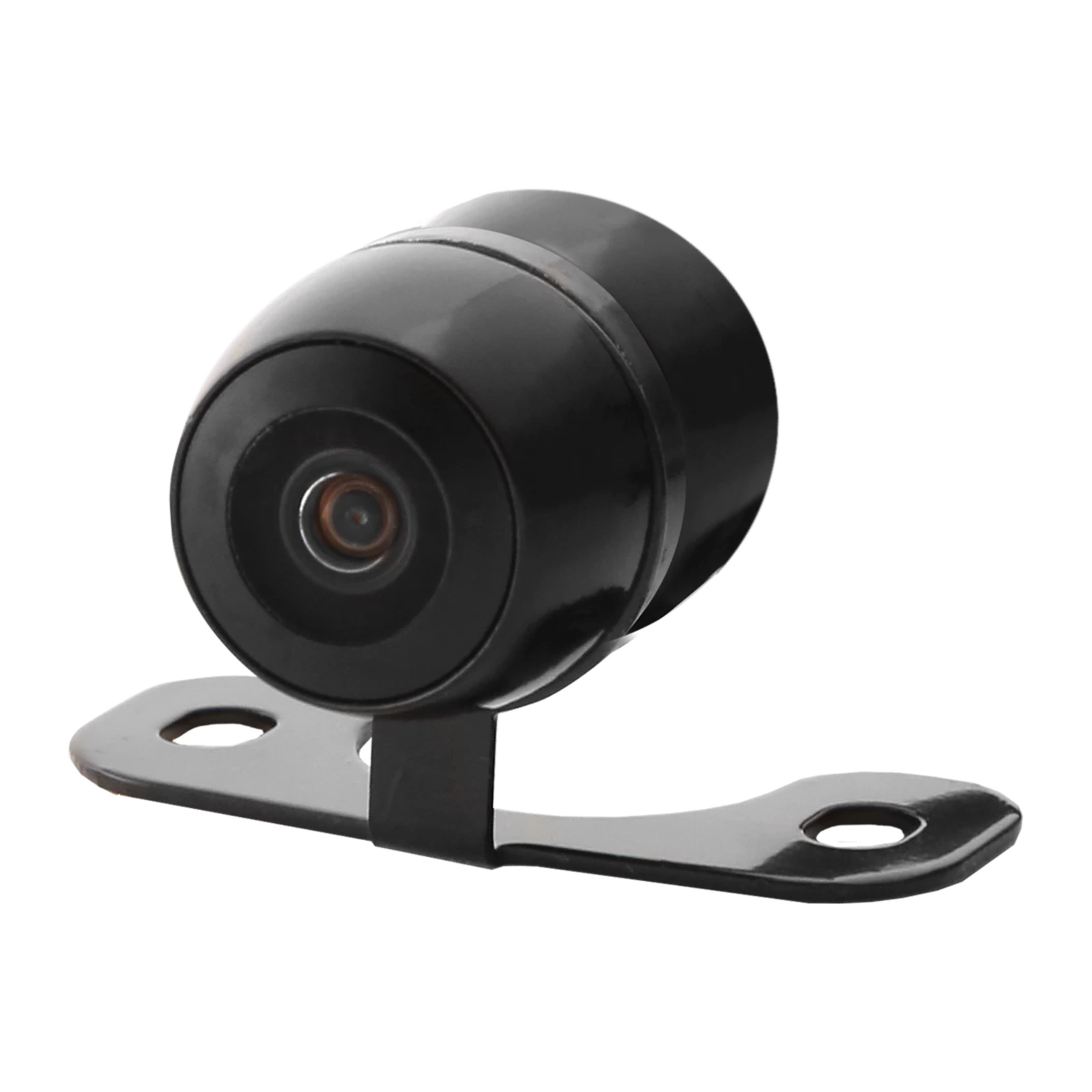

The ECCO EC2021-C is a compact round CMOS colour camera with a wide 170° lens – the camera supplied with ECCO’s EC8007 mirror system.
It measures just 21 × 36 × 43 mm, draws 2 W, has 728 × 582 resolution and is IP69K sealed, with a threaded 4-pin connection.
It operates from −30 °C to +70 °C and is backed by a 2-year ECCO warranty.
Key Benefits
- Wide 170° lens
- Tiny 21 × 36 × 43 mm body
- IP69K sealed
- Threaded 4-pin connection
- 2-year ECCO warranty
Specifications
- Part number – EC2021-C
- Brand – ECCO
- Product type – Camera
- Connection – Wired
- Sensor – CMOS colour
- Lens angle – 170°
- Resolution – 728 × 582
- Power – 2 W
- Dimensions – 21 × 36 × 43 mm
- Operating temperature – −30 °C to +70 °C
- Infrared LEDs – None
- Approvals – IP69K
- Warranty – 2 years (ECCO)
Applications
- Reversing and rear-view duty
- Side and blind-spot coverage
- Trailer and body-mounted cameras
- Replacement or expansion cameras
