Description

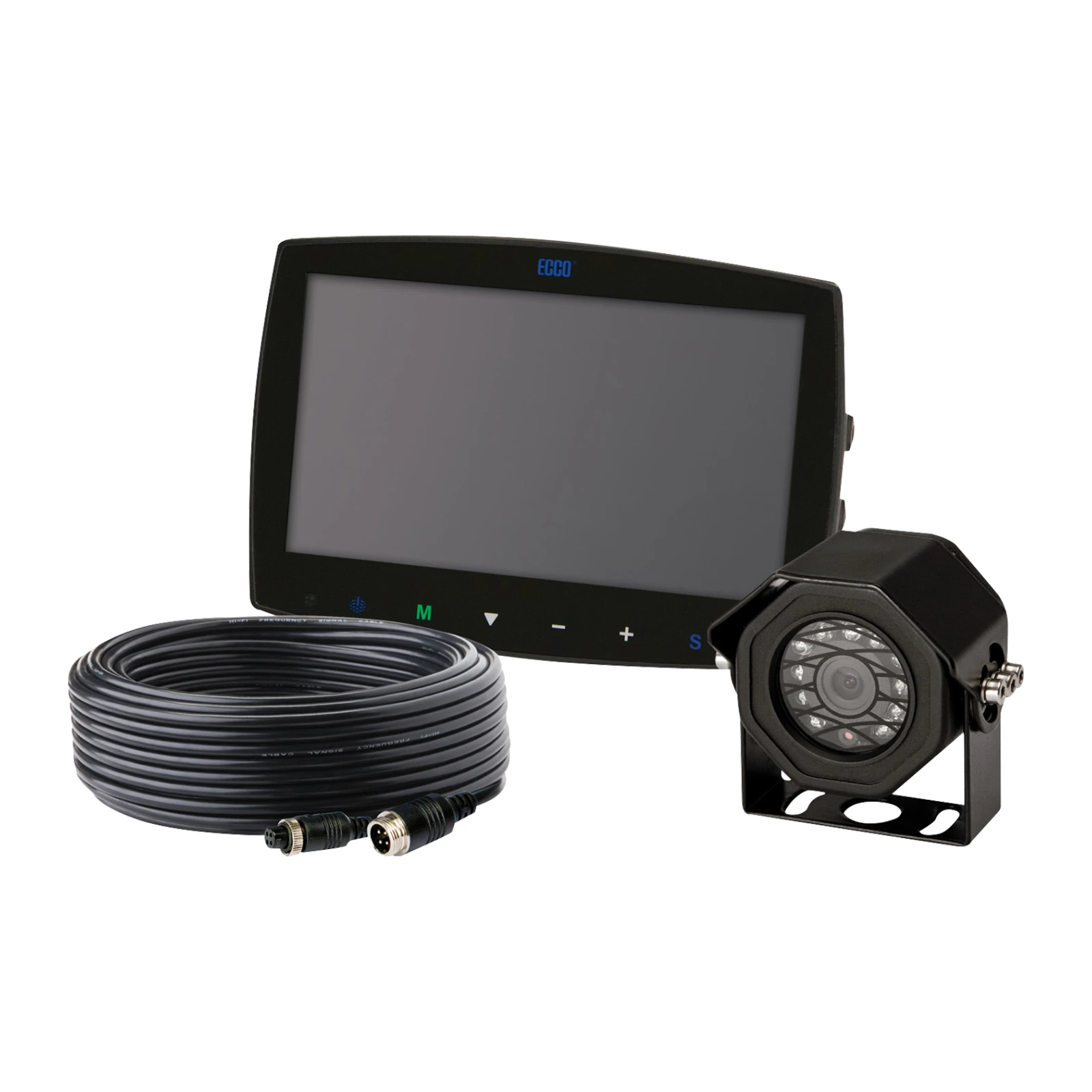

The ECCO EC7000-QK is a Gemineye™ 7″ quad view LCD colour camera system. The EC7000-QM monitor shows up to four cameras in split-screen or quad view, giving drivers of trucks, buses and mobile plant a complete picture around the vehicle on one widescreen display.
It is supplied with the EC2014-C colour infrared camera – a CMOS colour sensor with 11 infrared LEDs and a day/night light sensor, 120° lens (1/3″), built-in microphone, 3 W draw, IP69K sealing and 10G vibration rating, with a threaded 4-pin connection. The monitor has an internal controller, audio, day/night light sensor, mirror image, remote control and sunshade, and draws 6.4 W.
The system runs on 12–24V and expands to four cameras. A PCY-EC7000-QM power harness and EZ7000-QM DVR connection cable are available. Monitor approvals FCC, CE, RoHS; the camera is IP69K. ECCO backs the system with a 2-year ECCO warranty.
Key Benefits
- 7″ quad view / split-screen colour monitor
- EC2014-C IR camera with audio included
- Expandable to 4 cameras
- Mirror image, remote control and sunshade
- IP69K camera, 12–24V
- 2-year ECCO warranty
Specifications
- Part number – EC7000-QK
- Brand – ECCO
- Product type – Complete System
- Connection – Wired
- Screen size – 7″
- Monitor – EC7000-QM 7″ quad view LCD colour, 213 × 152 × 71 mm, 1.5 kg
- Camera – EC2014-C CMOS colour infrared, 11 IR LEDs, 120°
- Max cameras – 4
- Monitor features – Quad view, audio, day/night sensor, mirror image, remote, sunshade
- Power – 6.4 W (monitor)
- Operating voltage – 12–24V DC
- Operating temperature – −30 °C to +70 °C
- Approvals – FCC, CE, RoHS; camera IP69K
- Warranty – 2 years (ECCO)
Applications
- Trucks, buses and coaches
- Caravans, horse floats and trailers
- Earthmoving, mining and agricultural plant
- Utes, vans and service vehicles
