Description

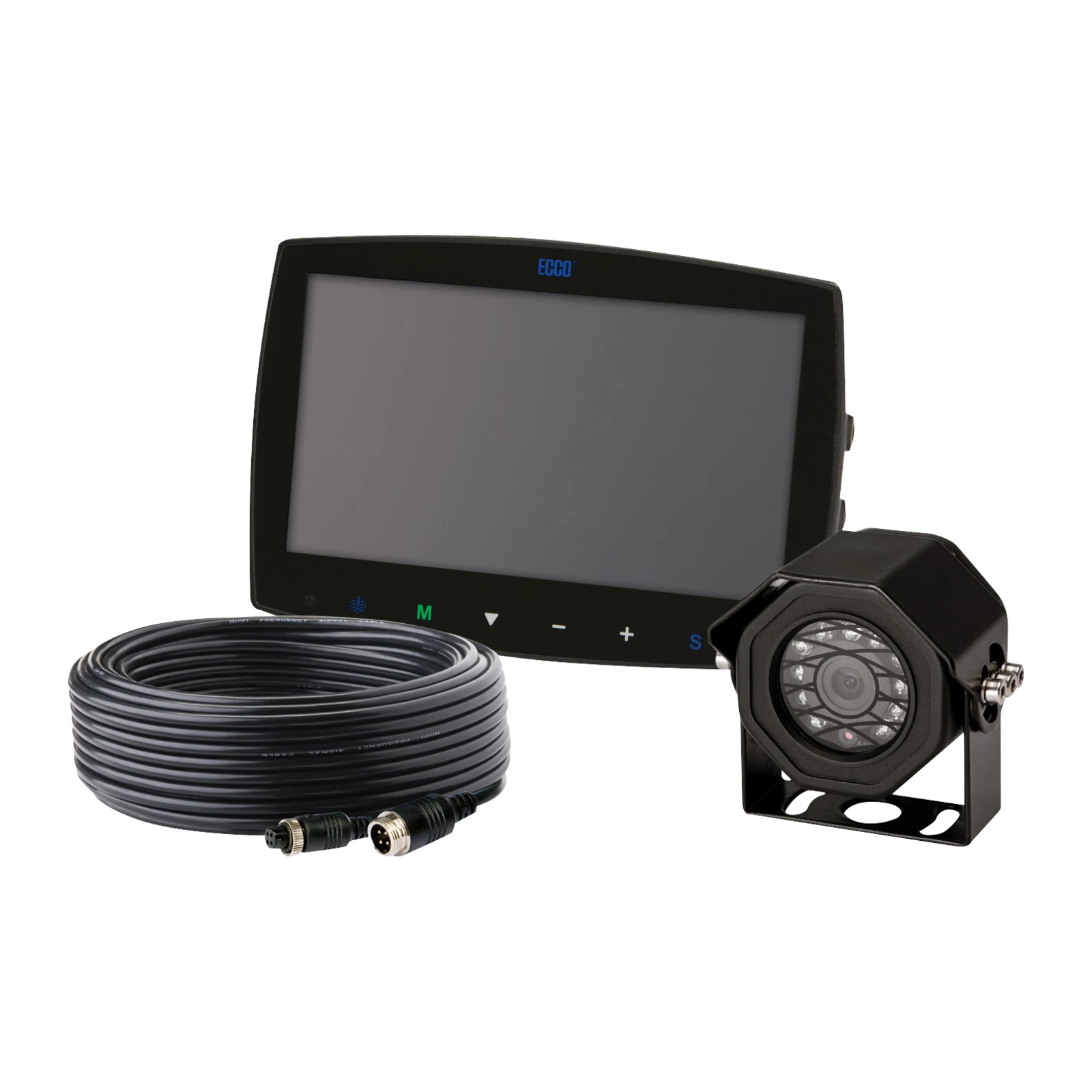

The ECCO EC7003-K is a Gemineye™ 7″ LCD colour camera system with a high-resolution touchscreen monitor, giving an optimal viewing area for mobile CCTV and reversing on trucks, buses, caravans and plant. The flat widescreen monitor mounts unobtrusively and includes a sunshade.
The kit includes the EC7003-M monitor, the EC2014-C colour infrared camera – a CMOS colour sensor with 11 infrared LEDs and a day/night light sensor, 120° lens (1/3″), built-in microphone, 3 W draw, IP69K sealing and 10G vibration rating, with a threaded 4-pin connection – and an ECTC20-4 20 m camera cable. The monitor has touchscreen menu control, audio, a day/night sensor, mirror image and remote control.
It runs on 12–24V, draws 6 W, and expands to three cameras using any current ECCO camera and ECTC cables. A PC1.8Y-4 power harness is available. Approvals FCC, CE, ECE R10, RoHS, RCM (camera IP69K), with a 2-year ECCO warranty.
Key Benefits
- 7″ touchscreen colour monitor with sunshade
- EC2014-C IR camera with audio
- 20 m ECTC20-4 cable included
- Expandable to 3 cameras
- IP69K camera, 12–24V
- 2-year ECCO warranty
Specifications
- Part number – EC7003-K
- Brand – ECCO
- Product type – Complete System
- Connection – Wired
- Screen size – 7″
- Monitor – EC7003-M 7″ touchscreen LCD colour, 213 × 152 × 71 mm, 1.5 kg
- Camera – EC2014-C CMOS colour infrared, 11 IR LEDs, 120°
- Cable – ECTC20-4, 20 m, 4-pin
- Max cameras – 3
- Power – 6 W (monitor)
- Operating voltage – 12–24V DC
- Approvals – FCC, CE, ECE R10, RoHS, RCM; camera IP69K
- Warranty – 2 years (ECCO)
Applications
- Trucks, buses and coaches
- Caravans, horse floats and trailers
- Earthmoving, mining and agricultural plant
- Utes, vans and service vehicles
