Description

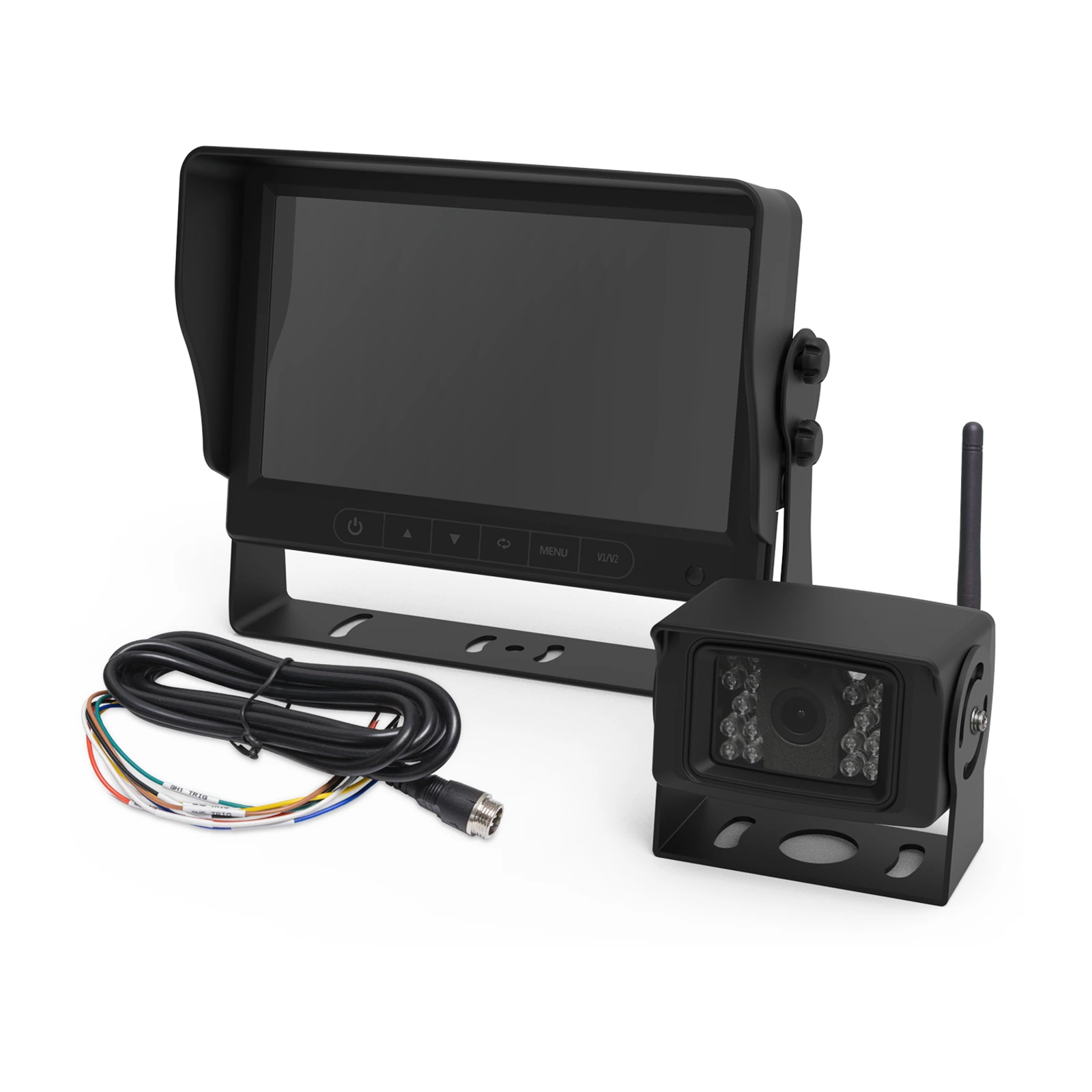

The ECCO K7000B-WK is a 7″ wireless reversing camera system that pairs the M7000B-WM high-resolution touchscreen colour monitor with the C2013B-WC basic colour infrared wireless camera. It removes the need to run a camera cable down the length of the vehicle, making installation on trucks, trailers, caravans and plant quicker and cleaner.
The camera has 18 infrared LEDs and a day/night light sensor for clear pictures in low light, a 75° horizontal / 170° diagonal view and 1292 × 926 resolution, and is IP69K rated. The monitor has touch and backlit buttons, a built-in sun shield and a micro SD card slot (up to 128 GB) for recording, and the system expands to four C2013B-WC cameras.
It runs on 12–24V and carries CE, UKCA, ECE R10 and FCC approvals. A replacement antenna (ECANTE-WC), 12V plug-in power cable (M7000B-WM-12VPC) and suction mount bracket are available, and ECCO backs the system with a 2-year ECCO warranty.
Key Benefits
- 7″ touchscreen colour monitor with sun shield
- Wireless C2013B-WC IR camera – no camera cable to run
- 18 IR LEDs and day/night sensor for low-light use
- Expandable to 4 wireless cameras
- Micro SD recording slot (up to 128 GB)
- IP69K camera, 12–24V operation
- 2-year ECCO warranty
Specifications
- Part number – K7000B-WK
- Brand – ECCO
- Product type – Complete System
- Connection – Wireless
- Screen size – 7″
- Monitor – M7000B-WM 7″ touchscreen LCD colour
- Camera – C2013B-WC wireless colour infrared
- Camera resolution – 1292 × 926
- Camera view – 75° horizontal, 170° diagonal, 1/3″ lens
- Infrared LEDs – 18
- Camera dimensions – 92 × 48 × 79 mm, 0.45 kg
- Max cameras – 4 (C2013B-WC)
- Recording – Micro SD slot, 128 GB max
- Operating voltage – 12–24V DC
- Approvals – CE, UKCA, ECE R10, IP69K (camera), FCC
- Warranty – 2 years (ECCO)
Applications
- Trucks, buses and coaches
- Caravans, horse floats and trailers
- Earthmoving, mining and agricultural plant
- Utes, vans and service vehicles
