Description

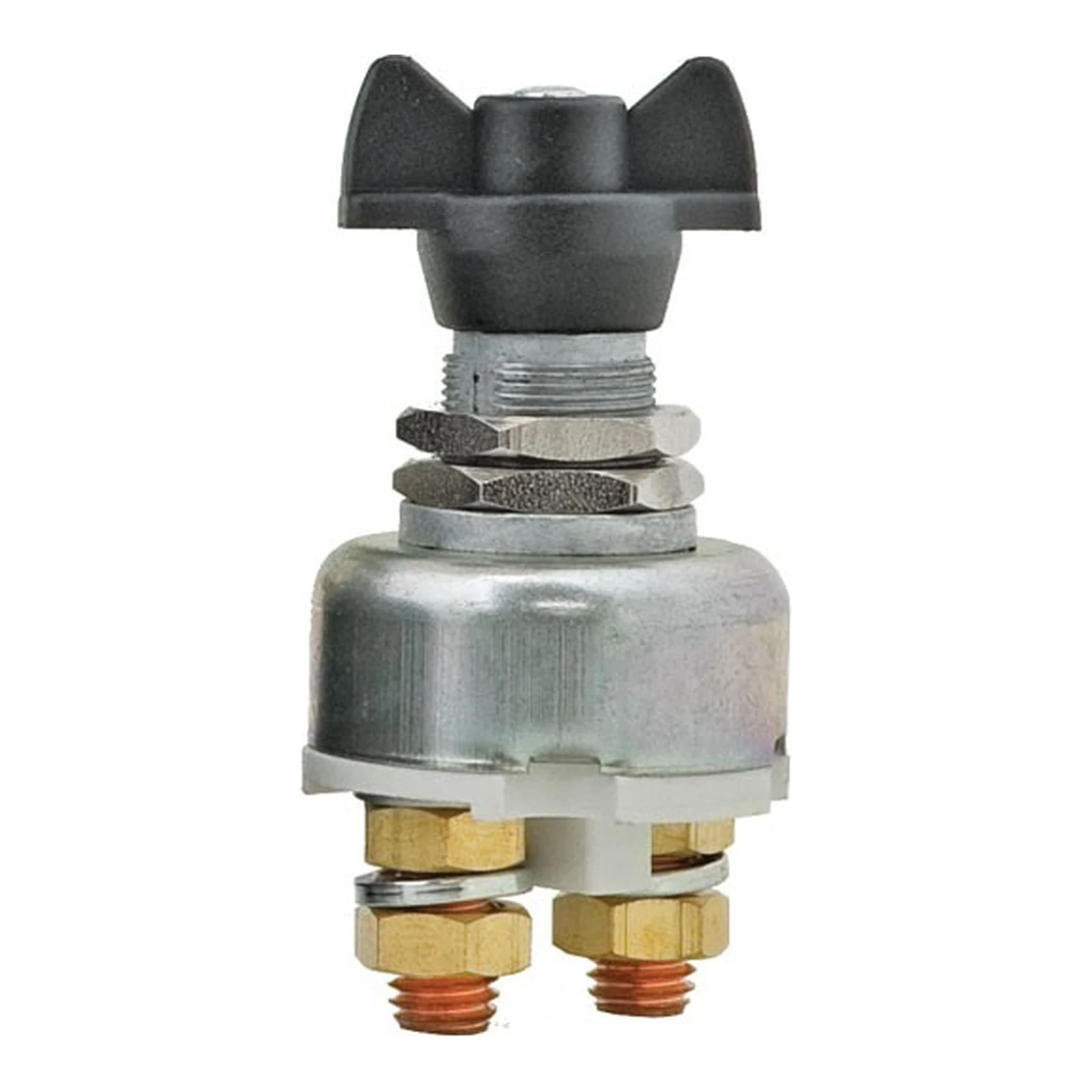

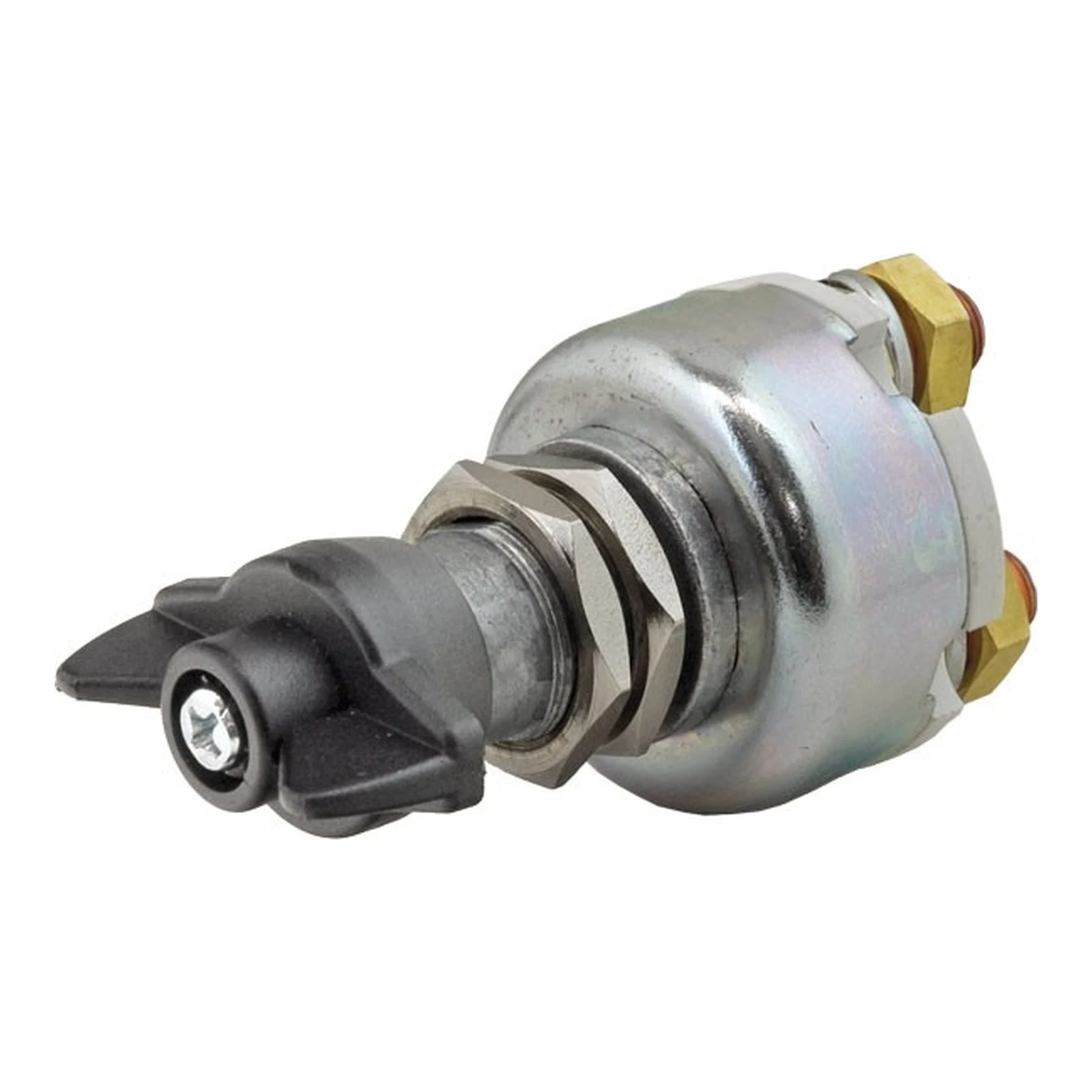

The Ionnic BMS-20 is a compact, single-pole battery master switch for vehicles and equipment where a full-size isolator will not fit. It is rated for 1000A intermittent and 125A continuous across 6 to 36 volt systems, so the same part suits 12V and 24V installations, and it switches with a quarter turn of its removable wing knob.
The switch panel-mounts through a 19mm hole in panels up to 8.8mm thick, with M10 terminal studs for the battery and load cables. Its body is sealed to IP53 against dust and splashing water. Unlike the larger BMS-001 and BMS-002, the BMS-20 has no integrated lockout, so Ionnic offers a two-piece nylon lockout in red (BMS-3R) or yellow (BMS-3Y) that takes a padlock when the switch is off.
Typical uses are isolating the main battery on light trucks, trailers and agricultural machinery, and switching auxiliary or accessory batteries on service vehicles. A 60mm brass extension stud (BMS-ES) is available when heavy cable lugs need more clearance.
Key Benefits
- 125A continuous / 1000A intermittent, 6–36V multi-voltage
- Compact body for tight engine bays and panels
- Removable wing knob to discourage unauthorised use
- IP53 sealed against dust and splashing water
- Lockable with optional BMS-3R / BMS-3Y nylon lockouts
- M10 studs, with BMS-ES extension stud available
Specifications
- Part number – BMS-20
- Poles – Single pole
- Voltage – 6–36V DC
- Contact rating – 1000A intermittent / 125A continuous
- Contacts – Silver alloy
- Terminals – M10 studs

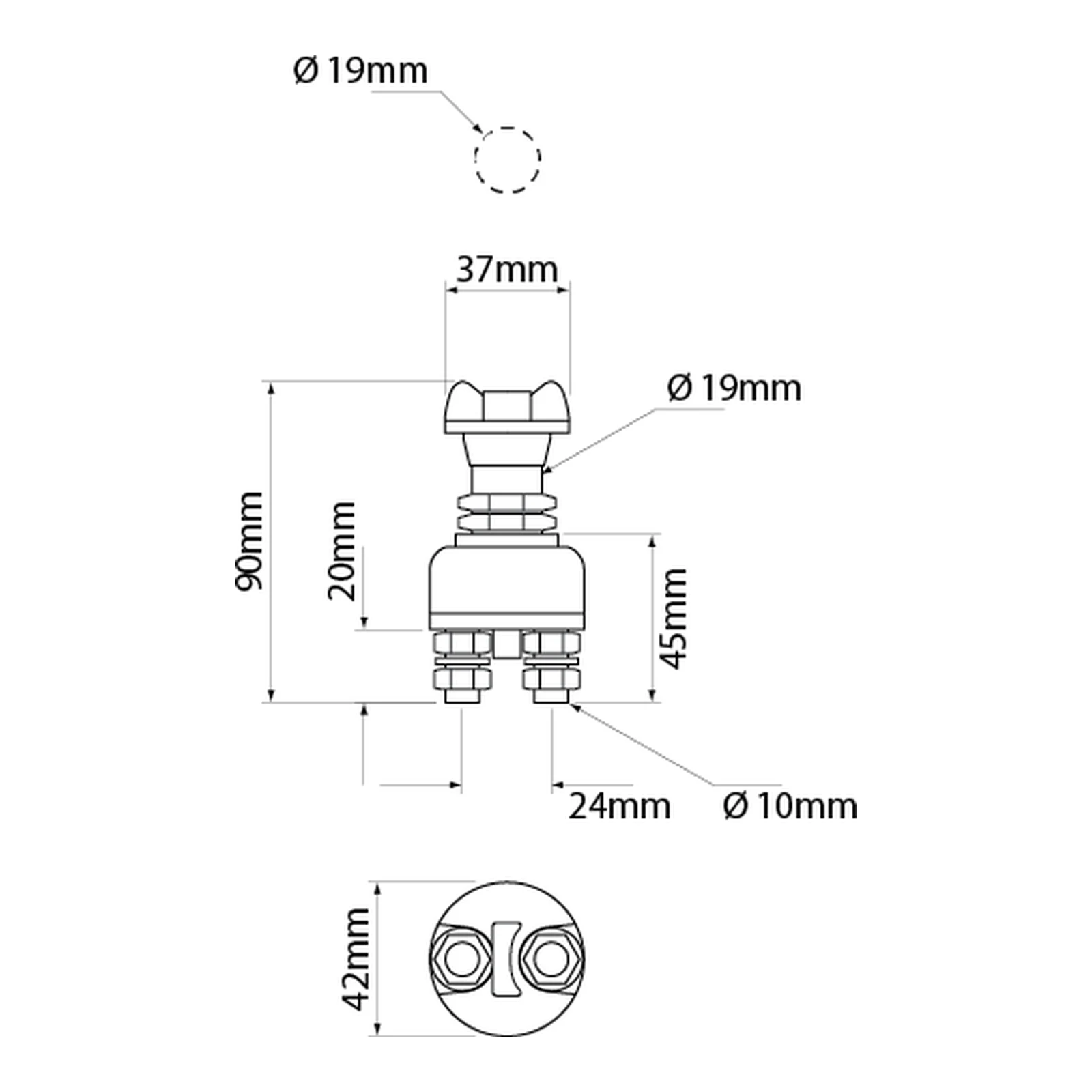

- Panel mounting – Ø 19mm hole, panel up to 8.8mm thick
- Ingress protection – IP53
- Dimensions – 90mm overall length, 42mm body diameter
- Lockout – Optional BMS-3R (red) / BMS-3Y (yellow)
Applications
- Light truck and trailer battery isolation
- Agricultural and construction machinery
- Auxiliary and accessory battery switching
- Workshop and service vehicle fit-outs
