Description

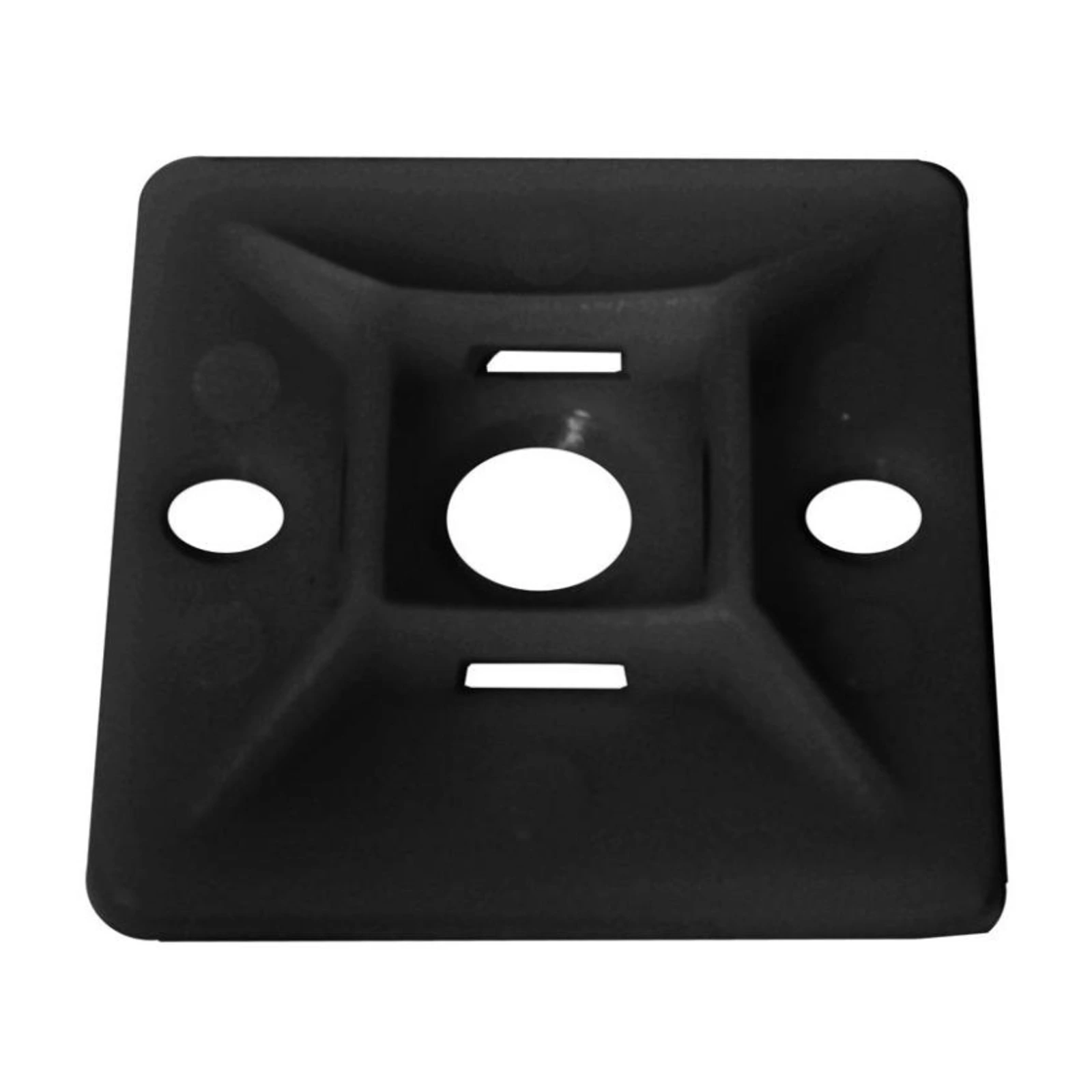

These LV Automotive cable tie mounts are 28 x 28 mm square, moulded from black nylon 6/6 and supplied in a pack of 100. They give a cable tie a fixed anchor point, so wiring looms, hoses and cables can be held neatly against a panel, bulkhead, firewall or frame instead of hanging loose.
Each mount has a raised centre with a cross-shaped channel that a cable tie threads through in either direction, plus a centre hole and two side holes for screw fixing. Fix the mount, pass a cable tie through the channel, wrap it around the bundle and pull it tight.
The 28 x 28 mm size suits cable ties up to 5.5 mm wide. Nylon 6/6 is tough and stable, and the mounts are rated for -40°C to 85°C with a UL 94V-2 flammability rating, so they suit vehicle, trailer, marine and machinery wiring. Black mounts suit engine bays, chassis rails and dark panels.
Key Benefits
- Pack of 100 28 x 28 mm black cable tie mounts
- Gives cable ties a fixed anchor point on panels and frames
- Cross channel accepts a tie from either direction
- Suits cable ties up to 5.5 mm wide
- Nylon 6/6, rated -40°C to 85°C, UL 94V-2
Specifications
- Brand – LV Automotive
- Part number – LV3212
- Type – Square cable tie mount
- Dimensions – 28 x 28 mm
- Suits max. tie width – 5.5 mm
- Material – Nylon 6/6
- Colour – Black
- Flammability – UL 94V-2
- Operating temperature – -40°C to 85°C
- Pack quantity – 100
Applications
- Wiring looms on firewalls, panels and bulkheads
- 4WD canopies, trays and auxiliary wiring
- Trailer and caravan wiring runs
- Control panels and enclosures
- Marine and machinery cable management
