Description

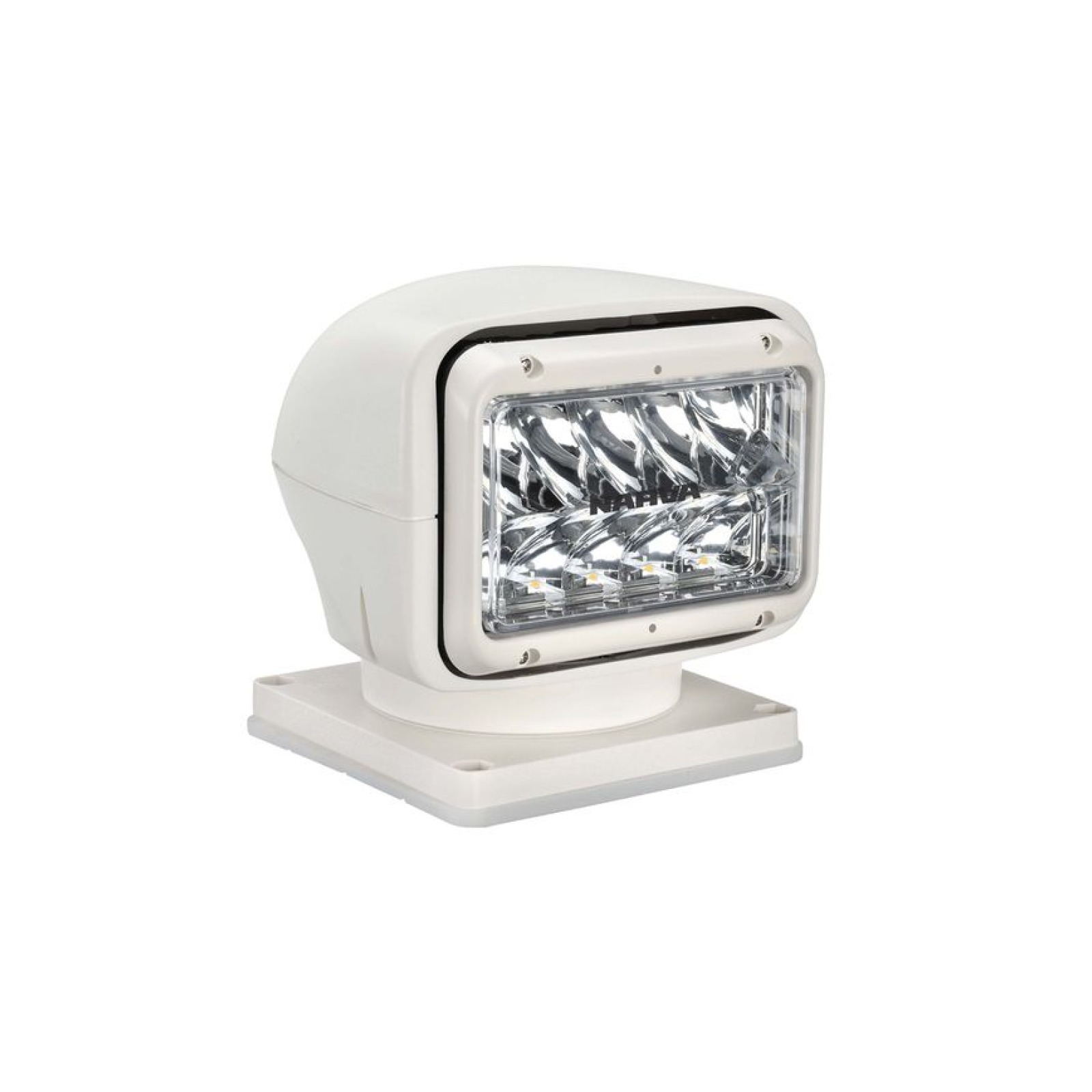

The Narva 72809 is a powerful 24V remote-control LED search lamp designed for precise, long-range illumination. Dual-speed movement allows rapid area scanning or slower adjustment for accurate beam positioning, while the compact white housing suits marine, security, commercial vehicle and industrial installations.
Key Features
- 5000-lumen concentrated search beam
- Dual-speed control for rapid scanning or precise beam positioning
- 360° rotation and 120° tilt
- Waterproof wireless remote with a range of up to 65 metres
- Wired joystick remote included
- Weatherproof, UV-resistant and salt-resistant ASA plastic resin housing
- Fully sealed IP68 LED module
Specifications
- Part number: 72809
- Brand: Narva
- Operating voltage: 24VDC
- Power: 50W
- Light output: 5000 lumens
- LED configuration: 10 × 5W high-power LEDs
- Colour temperature: 6000K
- Rotation: 360°
- Tilt: 120°
- Wireless remote range: Up to 65m
- Remote frequency: 433.92MHz
- LED module protection: IP68
- Housing: White weatherproof, UV-resistant and salt-resistant ASA plastic resin
- Manufacturer product weight: 1.9kg
Included Components
- 24V LED search lamp
- Waterproof wireless remote control

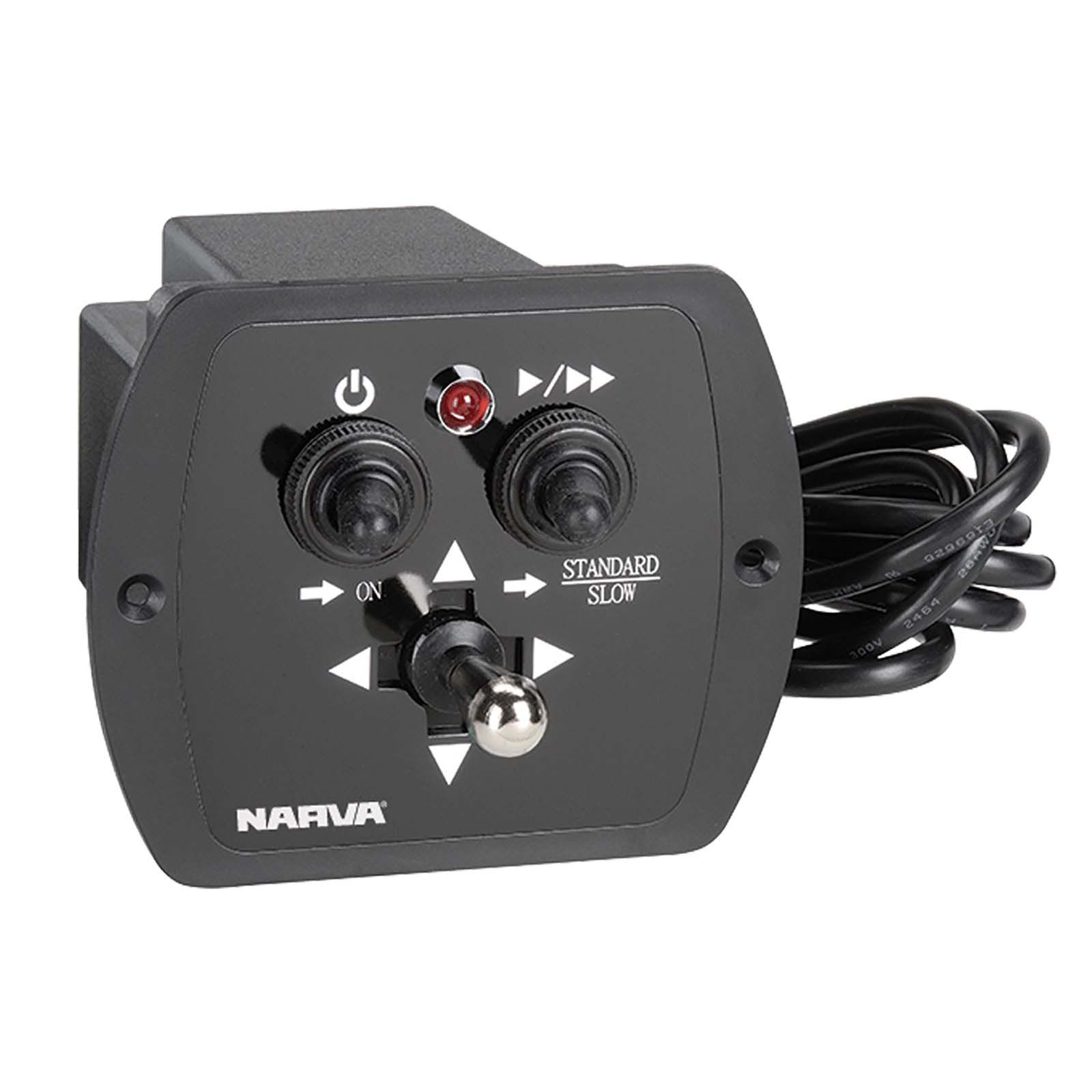

- Wired remote control with joystick
Applications
- Marine vessels and deck illumination
- Security and surveillance vehicles
- Emergency, service and commercial vehicles
- Mining, construction and agricultural equipment
- Industrial search and inspection tasks
Selection and Installation
Confirm the vehicle or equipment uses a 24VDC electrical system and that the mounting surface provides sufficient clearance for the full 360° rotation and 120° tilt. Use correctly rated wiring and circuit protection, isolate power before installation, and follow applicable vehicle, marine and electrical requirements.
