Description

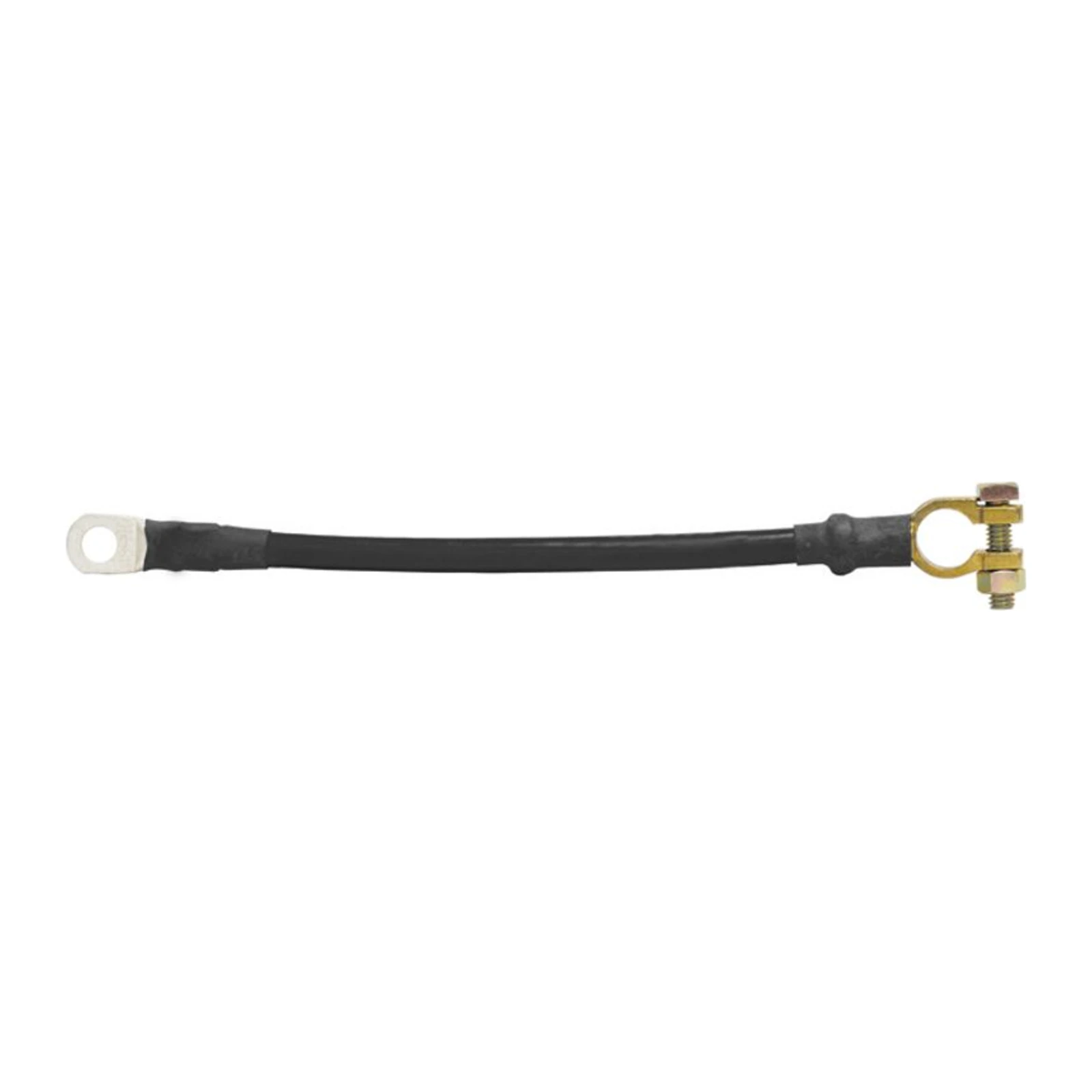

LV Automotive pre-made battery starter cables take the guesswork out of replacing a main battery lead. This 610 mm cable is made from heavy 2 B&S black cable, with a 10 mm eye lug crimped on one end and a battery terminal clamp on the other, so it is ready to fit straight out of the pack.
The 2 B&S conductor has a 32.15 mm² cross section and a 230 A rating, built from fine 0.32 mm strands for flexibility when routing around the engine bay. The eye lug bolts to the starter motor or solenoid stud, and the clamp fits a standard battery post.
Measure the old cable from the centre of the lug hole to the battery post before ordering, and allow a little slack for engine movement. Pre-made starter cables suit cars, utes, 4WDs, trucks, tractors, boats and machinery. They are also available in other lengths to suit different battery locations.
Key Benefits
- Ready to fit, no crimping tools needed
- Heavy 2 B&S cable rated to 230 A
- 10 mm eye lug and battery terminal clamp fitted
- Fine-strand copper for easy routing
- Black insulation for negative or general use
- Available in a range of lengths
Specifications
- Brand – LV Automotive
- Part number – LV6510
- Type – Battery to starter cable
- Length – 610 mm
- Cable size – 2 B&S
- Conductor cross section – 32.15 mm²
- Strand diameter – 0.32 mm
- Current rating – 230 A
- Lug size – 10 mm
- Terminations – 10 mm eye lug to battery terminal clamp
- Colour – Black
- Pack – Single
Applications
- Replacing worn or corroded battery to starter leads
- Battery relocation and engine swaps
- Cars, utes, 4WDs and light trucks
- Tractors, earthmoving and farm machinery
- Marine and auxiliary battery systems
