Description

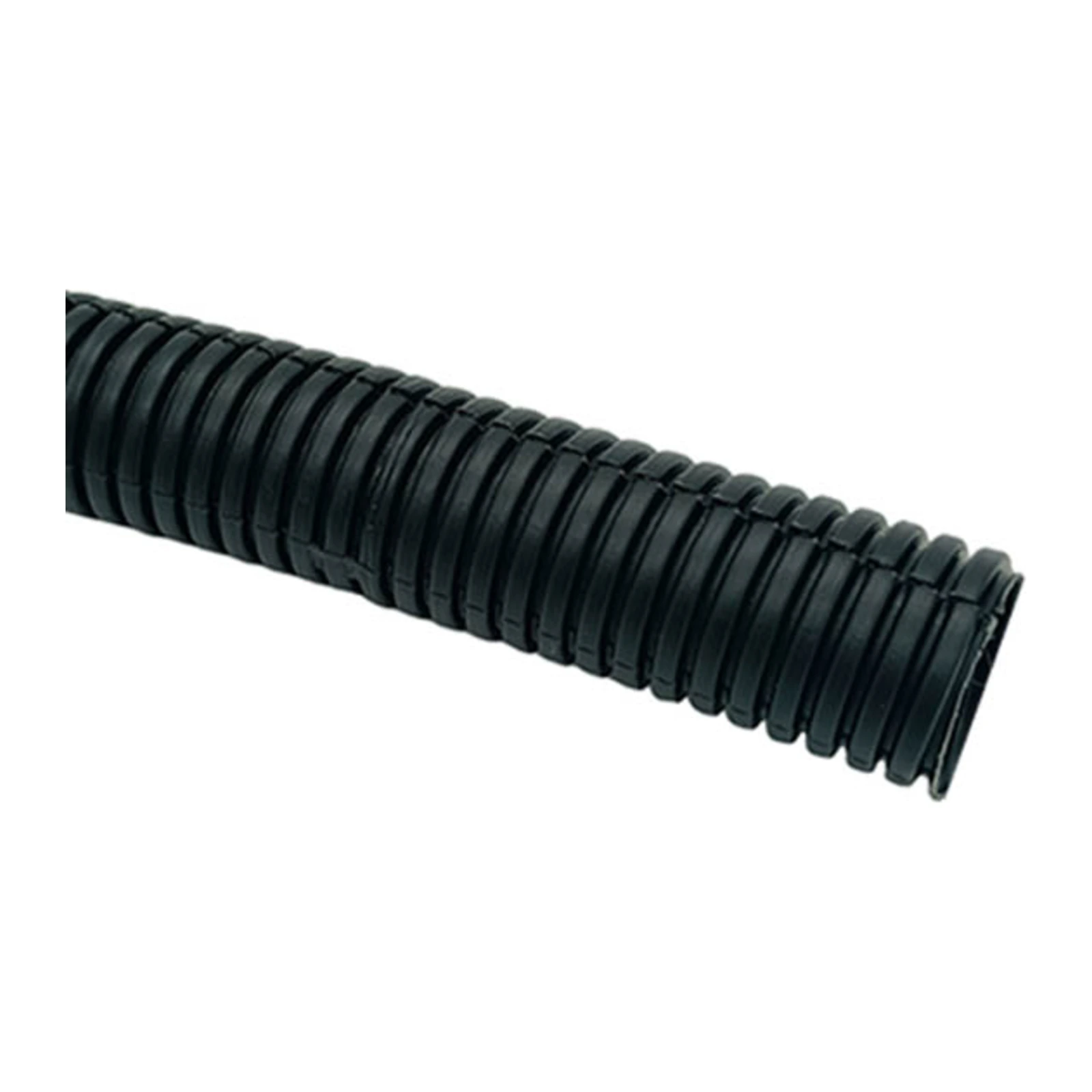

LV Automotive split convoluted tubing is a fast, tidy way to protect wiring looms and cable runs from abrasion, heat and dirt. This 13 mm size is made from black polypropylene with a corrugated profile and a full-length split, so you can open it and lay wires in along the run without disconnecting anything.

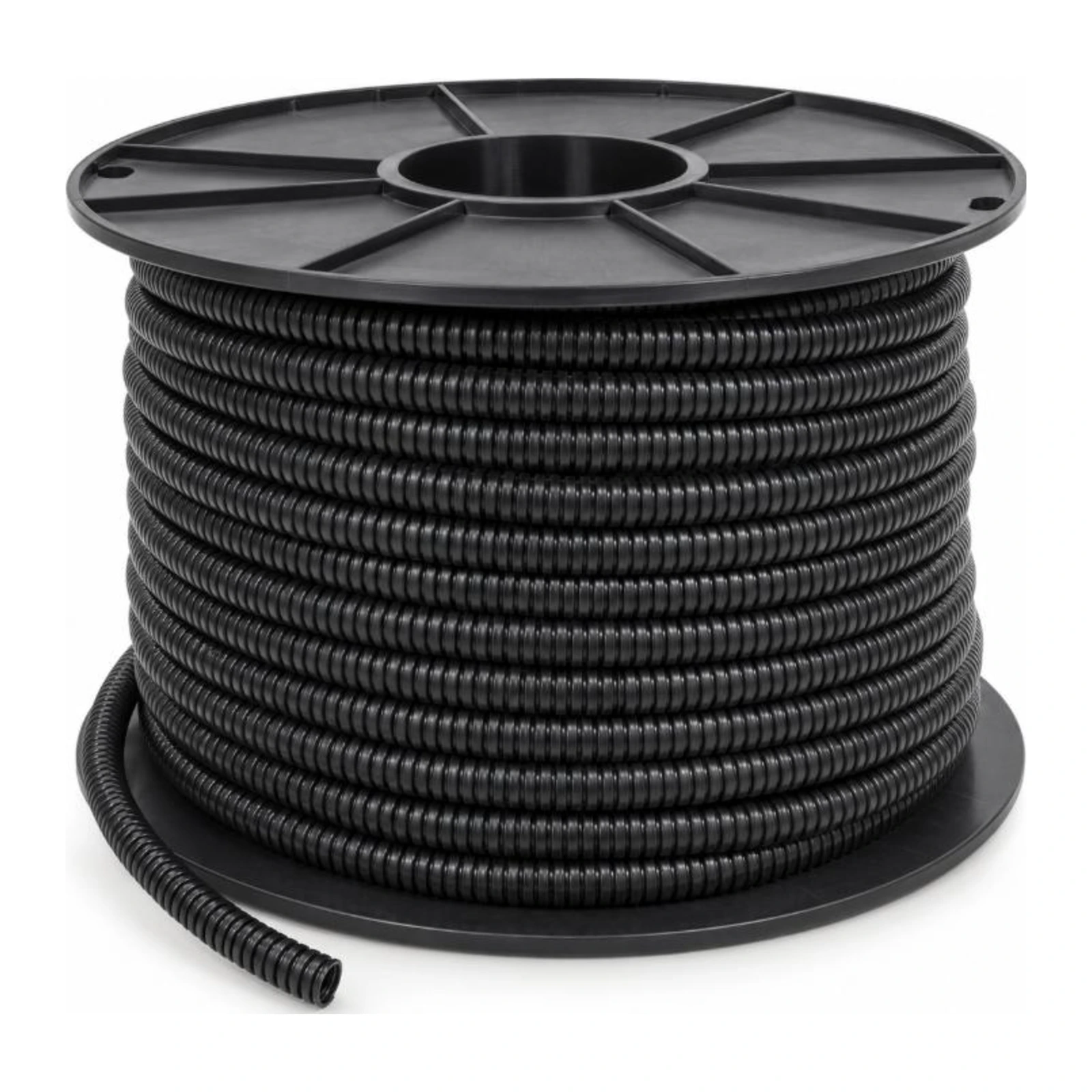

It has an internal diameter of 12.6 mm and an outside diameter of 15.7 mm, and comes as 75 m on a spool, suited to workshops, auto electricians and loom builders who use tubing in volume. The corrugations let the tubing bend around corners and follow the line of the vehicle while keeping its shape.
The polypropylene is rated for -20°C to +90°C, which suits most cabin, chassis and general engine bay wiring away from exhaust heat. Secure it with cable ties at regular intervals for a neat, factory-style finish.
Key Benefits
- Split along its length for easy loom installation
- Protects wiring from abrasion, chafing and dirt
- Corrugated profile bends around corners
- Black polypropylene, rated -20°C to +90°C
- 75 m spool
Specifications
- Brand – LV Automotive
- Part number – LV3030
- Type – Split convoluted tubing
- Nominal size – 13 mm
- Internal diameter – 12.6 mm
- Outside diameter – 15.7 mm
- Length – 75 m
- Colour – Black
- Material – Polypropylene
- Operating temperature – -20°C to +90°C
- Packaging – Spool
Applications
- Automotive wiring looms and harnesses
- Trailer, caravan and 4WD accessory wiring
- Truck, machinery and marine cable runs
- Workshop and auto electrical repairs
