Description

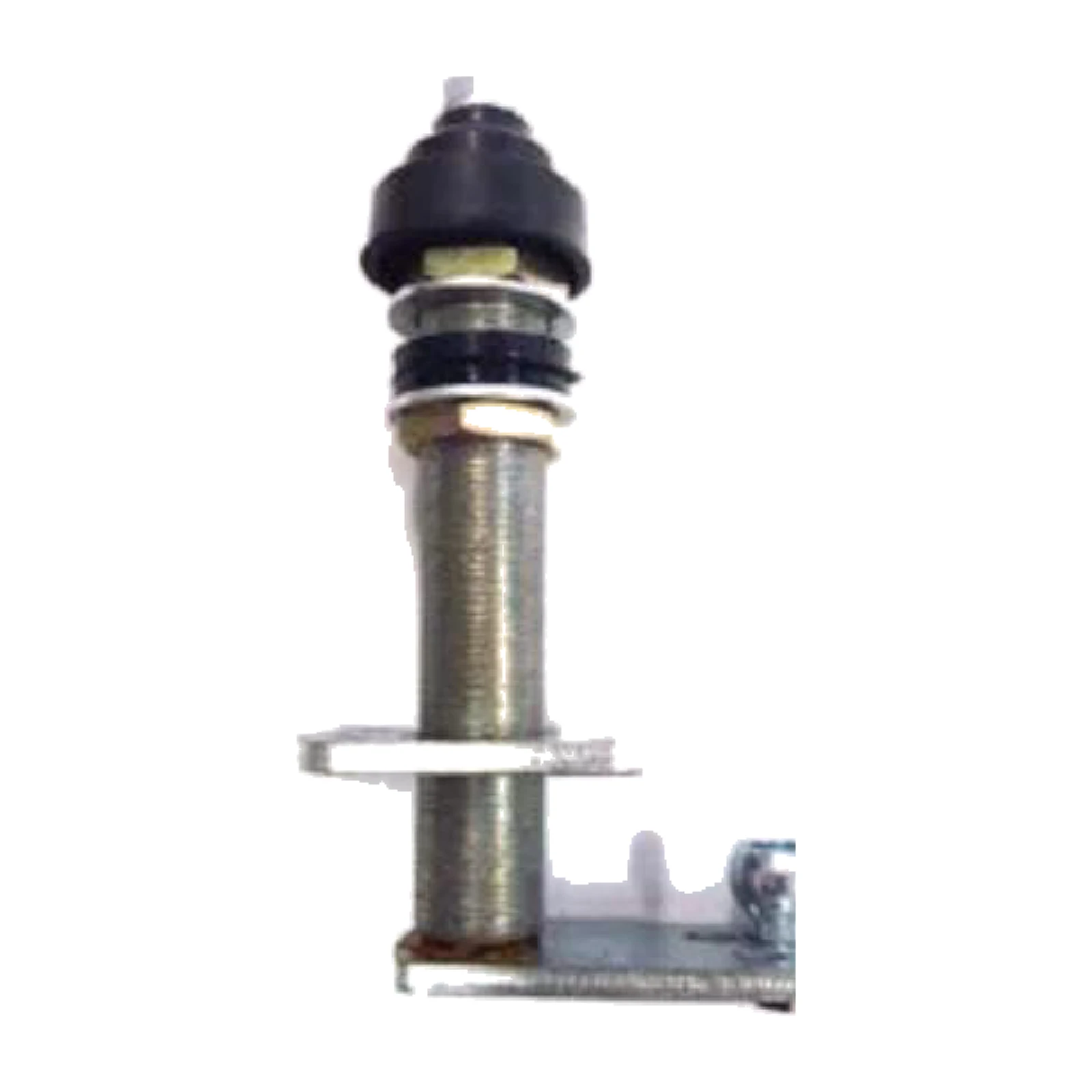

The Tru Vision TV5301 is the main drive pivot for the Tru Vision TV5000 series motors. Use it with a radial arm on its own, or with a pantograph arm alongside a TV5400 series slave pivot.
Pivots carry the wiper arm through the bulkhead and take the drive from the linkage. Match the drive spline, shaft length and pivot radius of your existing pivot when ordering. Check your existing part number, or contact us to confirm the right part for your application.
Key Benefits
- 25 mm shaft
- M8-DIN12 drive
- Radial or pantograph arms
- Genuine Tru Vision part
Specifications
- Brand – Tru Vision
- Part number – TV5301
- Type – Main drive wiper pivot
- Shaft length – 25 mm
- Drive – M8-DIN12
- Suits – TV5000 series motors, ZD1530-P / ZD1230 arms
