Description
The Tru Vision TC777-80 is a 800 mm heavy-duty wiper arm for buses, coaches, trucks and industrial vehicles with large windscreens. It is a direct replacement for the TRICO TPA6800-80 arm and is built to hold the blade firmly against the glass for an even, streak-free wipe at road speed.

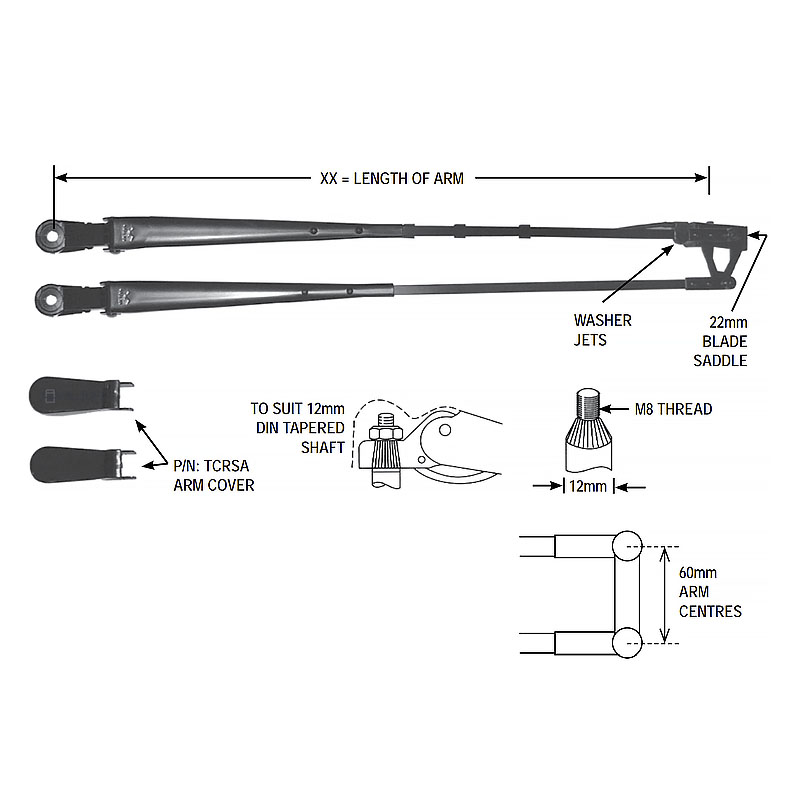

The arm fits 12 mm DIN tapered drive shafts with an M8 thread and has 60 mm arm centres. A 22 mm blade saddle takes heavy-duty bus and truck blades, and washer jets are built into the arm so washer fluid is delivered right where the blade wipes. A TCRSA arm cover is included to protect the mounting.
The TC777 series is made to length, measured from the centre of the blade saddle to the centre of the mounting bolt hole. The TC777-80 suits 800 mm applications, with 700 mm (TC777-70) and 850 mm (TC777-85) arms also available in the same series.
Key Benefits
- Direct replacement for TRICO TPA6800-80
- Heavy-duty construction for bus, truck and industrial use
- Built-in washer jets
- 22 mm blade saddle for heavy-duty blades
- TCRSA arm cover included
Specifications
- Brand – Tru Vision
- Part number – TC777-80
- Type – Heavy-duty wiper arm
- Arm length – 800 mm (saddle centre to bolt-hole centre)
- Drive shaft – 12 mm DIN tapered
- Thread – M8
- Arm centres – 60 mm
- Blade saddle – 22 mm
- Washer jets – Yes
- Arm cover – TCRSA, included
- Cross-reference – TRICO TPA6800-80
Applications
- Bus and coach windscreens
- Trucks and heavy commercial vehicles
- Industrial, mining and agricultural machinery
- Replacement of worn or damaged TRICO TPA arms
