Description

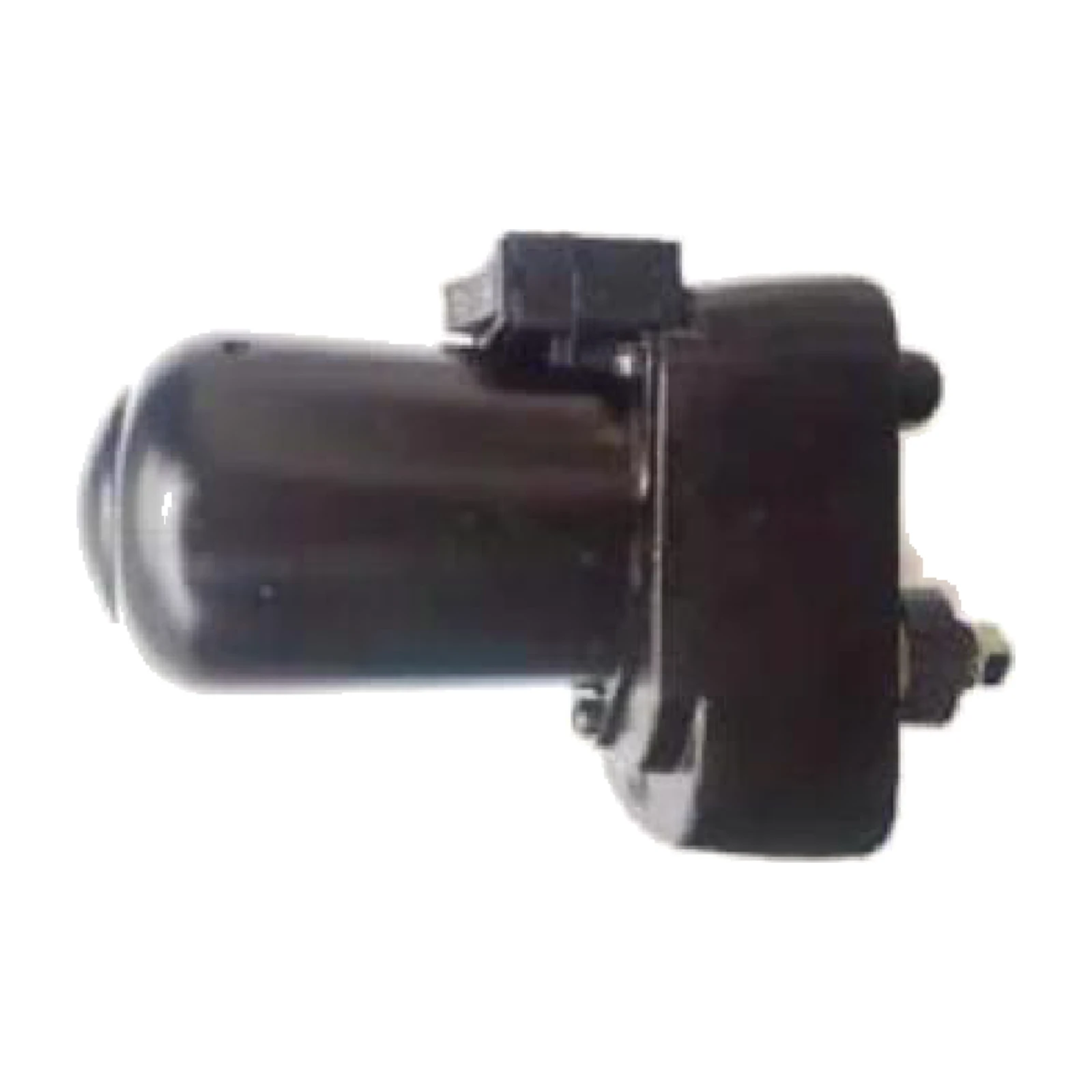

The Tru Vision ZD1230B-12V-90-68 is a 12 volt small screen wiper motor with a 90° sweep and M8-DIN10 main shaft. It has a built-in rocker switch, one speed and no auto park.
Wire the motor with a suitable switch and relay for the speed and park functions your system needs. Tru Vision small screen wiper systems suit forklifts, machinery cabins, boats and other small windscreens. Check your existing part number, or contact us to confirm the right part for your application.
Key Benefits
- 12V, 9 Nm
- 90° sweep
- M8-DIN10 shaft
- Built-in rocker switch
- Genuine Tru Vision part
Specifications
- Brand – Tru Vision
- Part number – ZD1230B-12V-90-68
- Type – 12V small screen wiper motor
- Voltage – 12V
- Torque – 9 Nm
- Sweep – 90°
- Shaft – M8-DIN10, 68 mm
- Slave post – M8
- Speeds – 1, no auto park
- Control – Built-in rocker switch
