Description

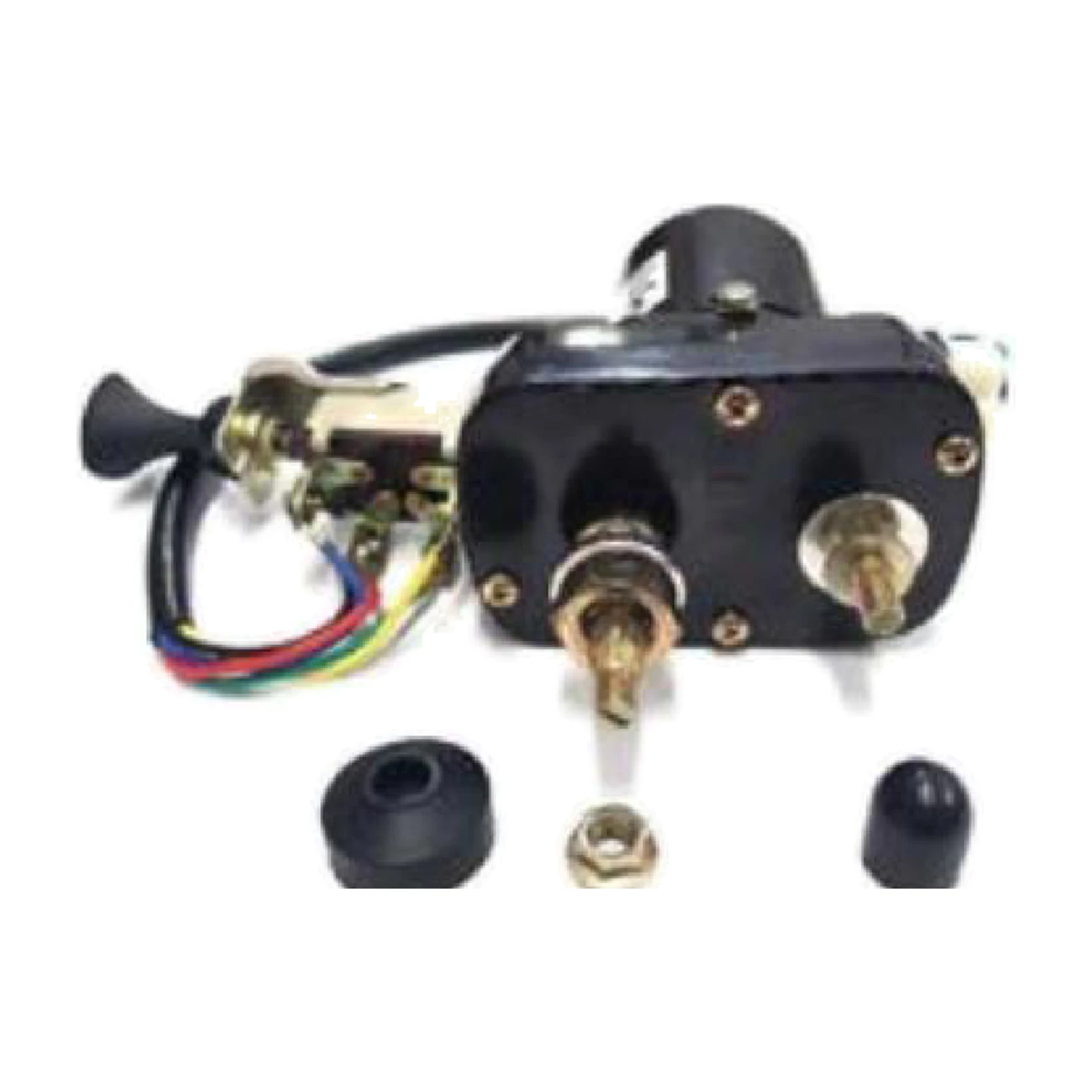

The Tru Vision ZD2230BA-24V-90-48 is a 24 volt small screen wiper motor with a 90° sweep and M8-DIN10 main shaft. It is supplied with a short loom and two-position pull switch, giving two speeds and auto park.
Wire the motor with a suitable switch and relay for the speed and park functions your system needs. Tru Vision small screen wiper systems suit forklifts, machinery cabins, boats and other small windscreens. Check your existing part number, or contact us to confirm the right part for your application.
Key Benefits
- 24V, 9 Nm
- 90° sweep
- M8-DIN10 shaft
- 2-speed with auto park
- Genuine Tru Vision part
Specifications
- Brand – Tru Vision
- Part number – ZD2230BA-24V-90-48
- Type – 24V small screen wiper motor
- Voltage – 24V
- Torque – 9 Nm
- Sweep – 90°
- Shaft – M8-DIN10, 48 mm
- Slave post – M8
- Speeds – 2, with auto park
- Control – Two-position pull switch and loom
