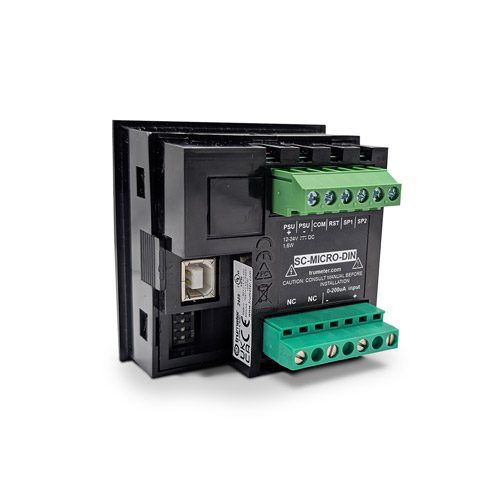

Trumeter Micro Signal Conditioner for Microamp Measurement
The Trumeter Micro Signal Conditioner (SC-MICRO-DIN) is a DIN rail-mount device that measures DC current in the 0-200µA range with high input impedance. It suits sensor testing, R&D, medical and biotech devices, semiconductor monitoring, and low-current electronics manufacturing. As a result, it holds signal integrity on measurements too small for a standard current conditioner.
- High-Resolution 0-200µA Input
- 0.1% Accuracy of the Signal
- Dual Outputs Configurable as Digital (Open Collector) or Analog (4-20mA)
- 10 Alarm Setpoints with Configurable Output Delays
- 20-Point Non-Linearization Scaling for Non-Linear Sensors
Because the input impedance is high, the SC-MICRO-DIN loads the sensor circuit minimally during measurement. Therefore, readings stay accurate even on sensitive, low-current test setups where a standard signal conditioner would disturb the signal.
Configuration and Installation
The unit clips onto standard Top Hat Slotted (TS35) DIN rail and measures 72mm x 72mm x 61mm. It runs from a 12-24V AC/DC supply, and setup is handled through Trumeter’s free configuration software over USB.
The unit carries CE, cUL, UL, RoHS, and IP20 ratings, covering most industrial and OEM panel-building requirements without extra certification paperwork.
Specifications
- Input: 0-200µA
- Power Supply: 12-24V AC/DC
- Outputs: 2 x Digital (Open Collector) or Analog (4-20mA)
- Accuracy: 0.1%
- Dimensions: 72mm x 72mm x 61mm
- Mounting: Top Hat Slotted (TS35) DIN Rail
- Certifications: CE, cUL, UL, RoHS, IP20
