Description

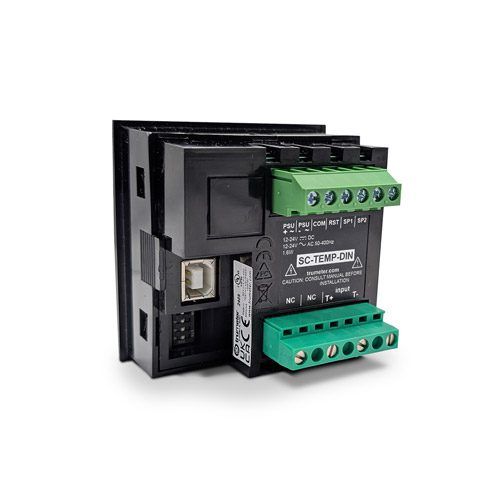

Trumeter Temperature Signal Conditioner for Thermocouple Inputs
The Trumeter Temperature Signal Conditioner (SC-TEMP-DIN) is a DIN rail-mount device that accepts Type B, E, J, K, N, R, S, and T thermocouples. It suits process control, food and beverage production, semiconductor manufacturing, HVAC systems, and environmental testing chambers. As a result, one unit can replace several single-type temperature instruments on a panel.
- Compatible with Type B, E, J, K, N, R, S & T Thermocouples
- Dual Outputs Configurable as Digital (Open Collector) or Analog (4-20mA)
- Configurable 20-Point Non-Linearization Scaling
- Input Signal Optimization for Accuracy to 0.2°C
- 10 Alarm Setpoints with Configurable Output Delays
- Optional Modbus RTU Communication
Because the thermocouple type is set in software rather than fixed at manufacture, the same SC-TEMP-DIN part number can be reconfigured across projects. Therefore, spares holding is simpler than stocking a separate conditioner per thermocouple type.
Configuration and Installation
The unit clips onto standard Top Hat Slotted (TS35) DIN rail and measures 72mm x 72mm x 61mm. It runs from a 12-24V AC/DC supply and reaches 0.5°C accuracy after 30 minutes of warm-up, improving to 0.2°C after 40 minutes. For integration with SCADA or BMS systems, an optional Modbus RTU output is available.
The unit carries CE, cUL, UL, RoHS, and IP20 ratings, covering most industrial and OEM panel-building requirements without extra certification paperwork.
Specifications
- Input: Type B, E, J, K, N, R, S & T Thermocouples
- Power Supply: 12-24V AC/DC
- Outputs: 2 x Digital (Open Collector) or Analog (4-20mA)
- Communication: Modbus RTU (Optional)
- Accuracy: 0.5°C after 30 min / 0.2°C after 40 min
- Dimensions: 72mm x 72mm x 61mm
- Mounting: Top Hat Slotted (TS35) DIN Rail
- Certifications: CE, cUL, UL, RoHS, IP20
