Description
The TYRI 1010 AC runs directly on 100–277V AC mains supply, so it can be used where there is no vehicle electrical system – conveyors, crushers, aggregate stations and other stationary lighting.
It delivers 2,200 or 3,200 effective lumens from 40 W in the robust square 1010 housing.
Choose the output and lens pattern above to see the TYRI part number.
Key Benefits
- Runs on 100–277V AC mains
- 2,200 or 3,200 effective lumens from 40 W
- Medium or wide symmetric lens

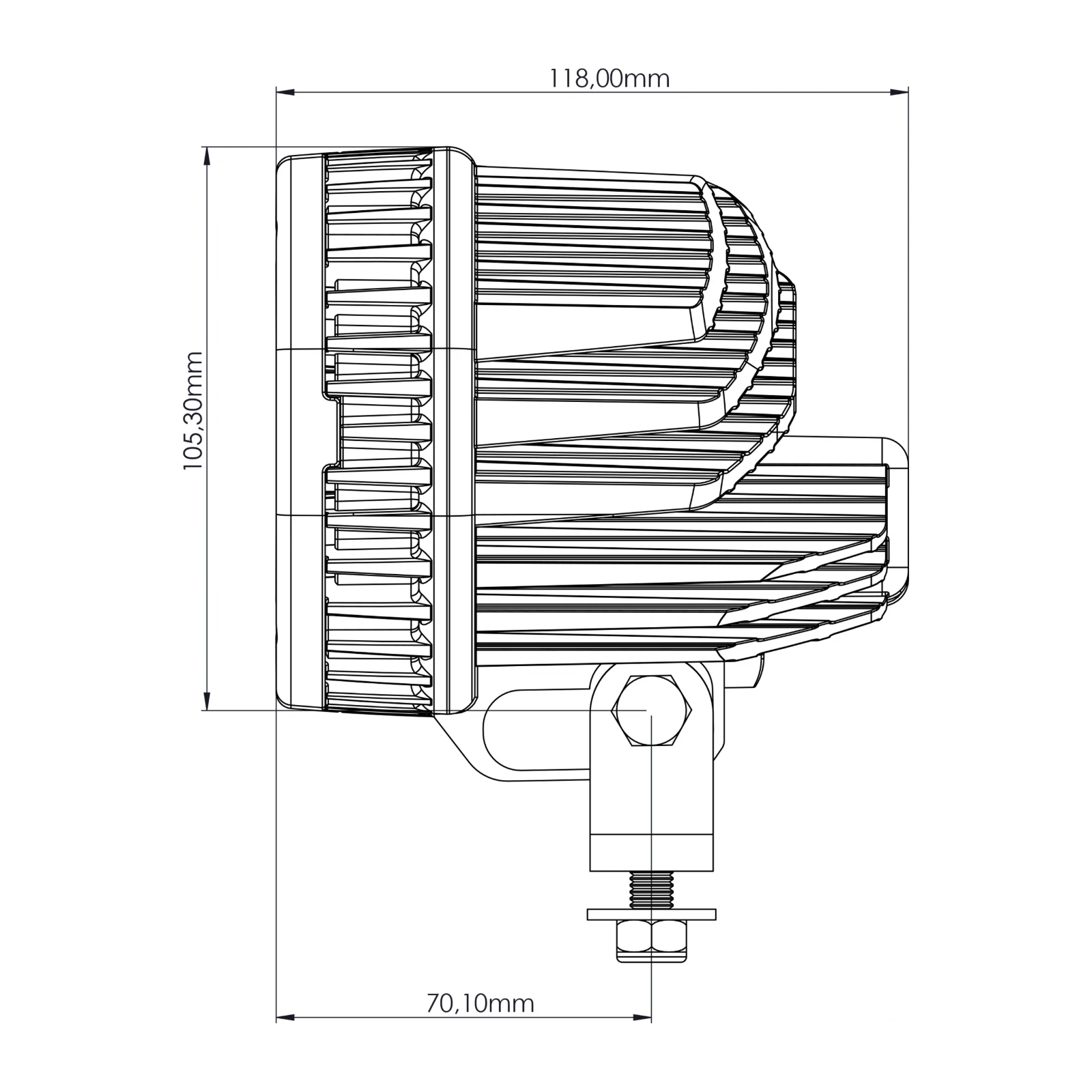

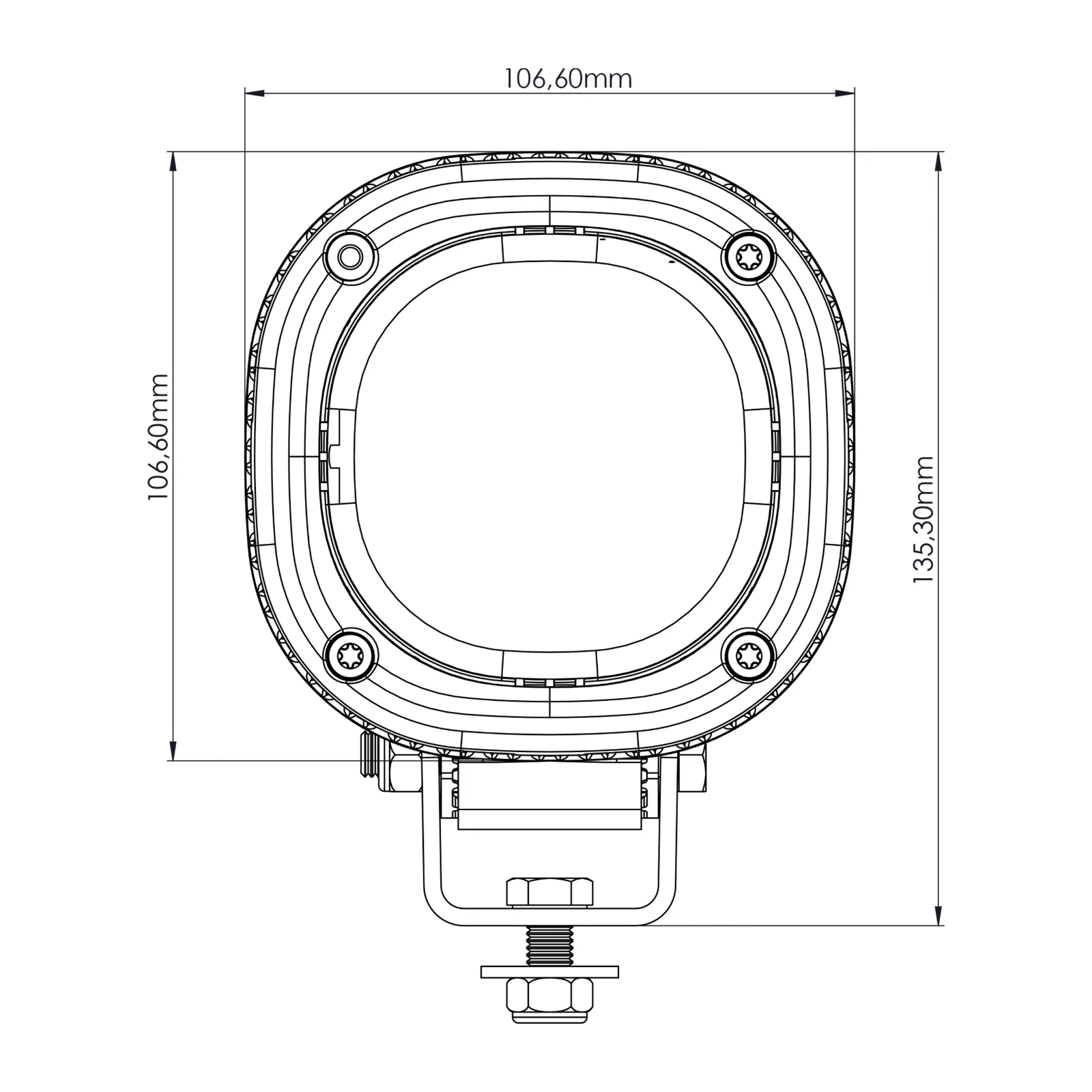

- Robust square 1010 housing
- For conveyors and fixed plant
Specifications
- Brand – TYRI (Sweden)
- Product – 1010 AC
- Effective lumen – 2,200 lm / 3,200 lm
- Machine voltage – 100–277V AC
- Lens patterns – Wide Symmetric, Medium Symmetric
- Supply – 100–277V AC, 47–63 Hz
- Power – 40 W
- Light source – LED
- Mounting – Hanging, Standing, Pedestal
- Part numbers – 3 versions – select above to see the part number
Applications
- Conveyors and crushers
- Aggregate and quarry plants
- Mine-site fixed lighting
- Workshops and loading areas
