Description

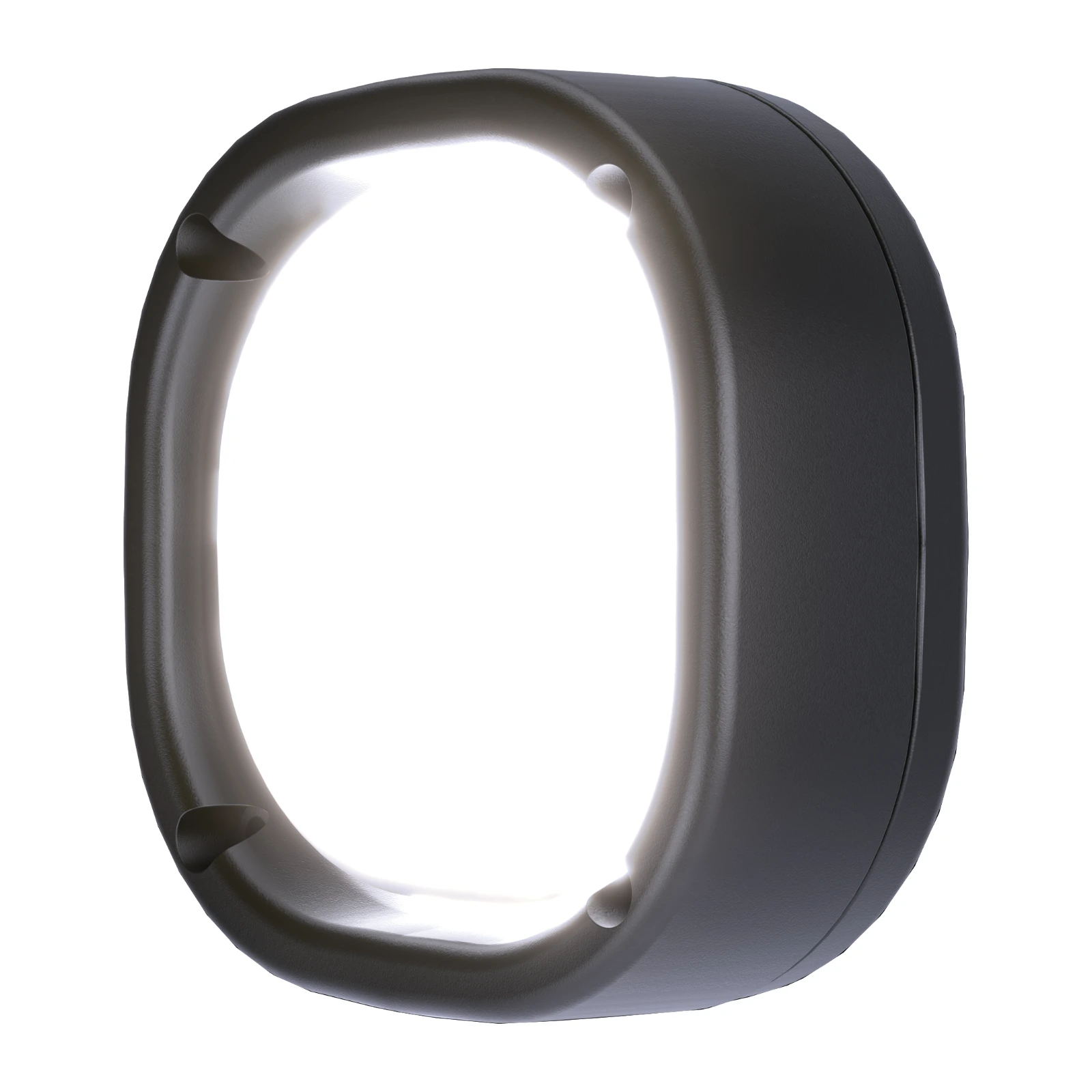

The TYRI 1010 Flush has no cooling flanges. It mounts directly onto the vehicle’s surface, and the metal of the machine draws heat away from the LEDs. The flush design makes it a perfect choice for confined spaces.

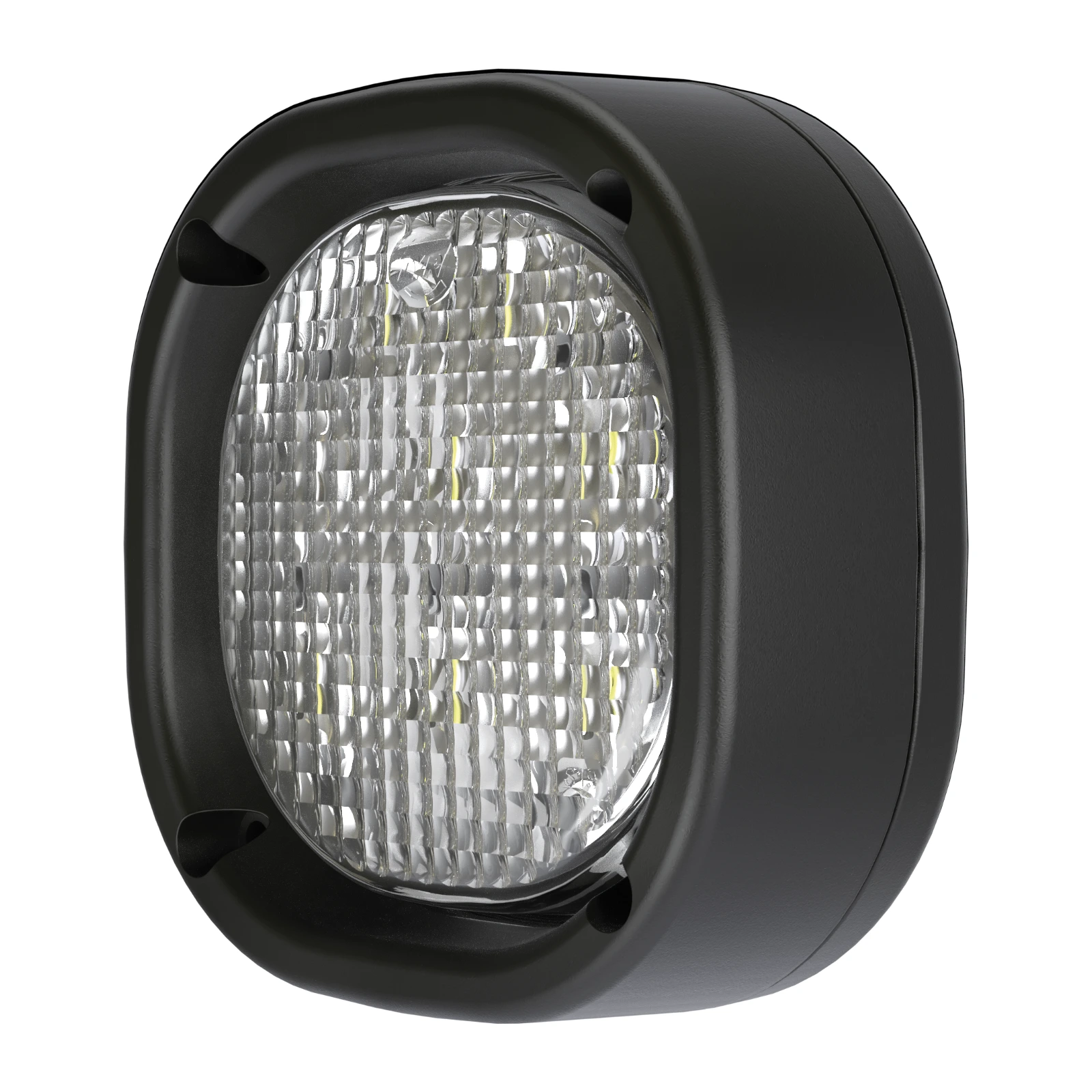

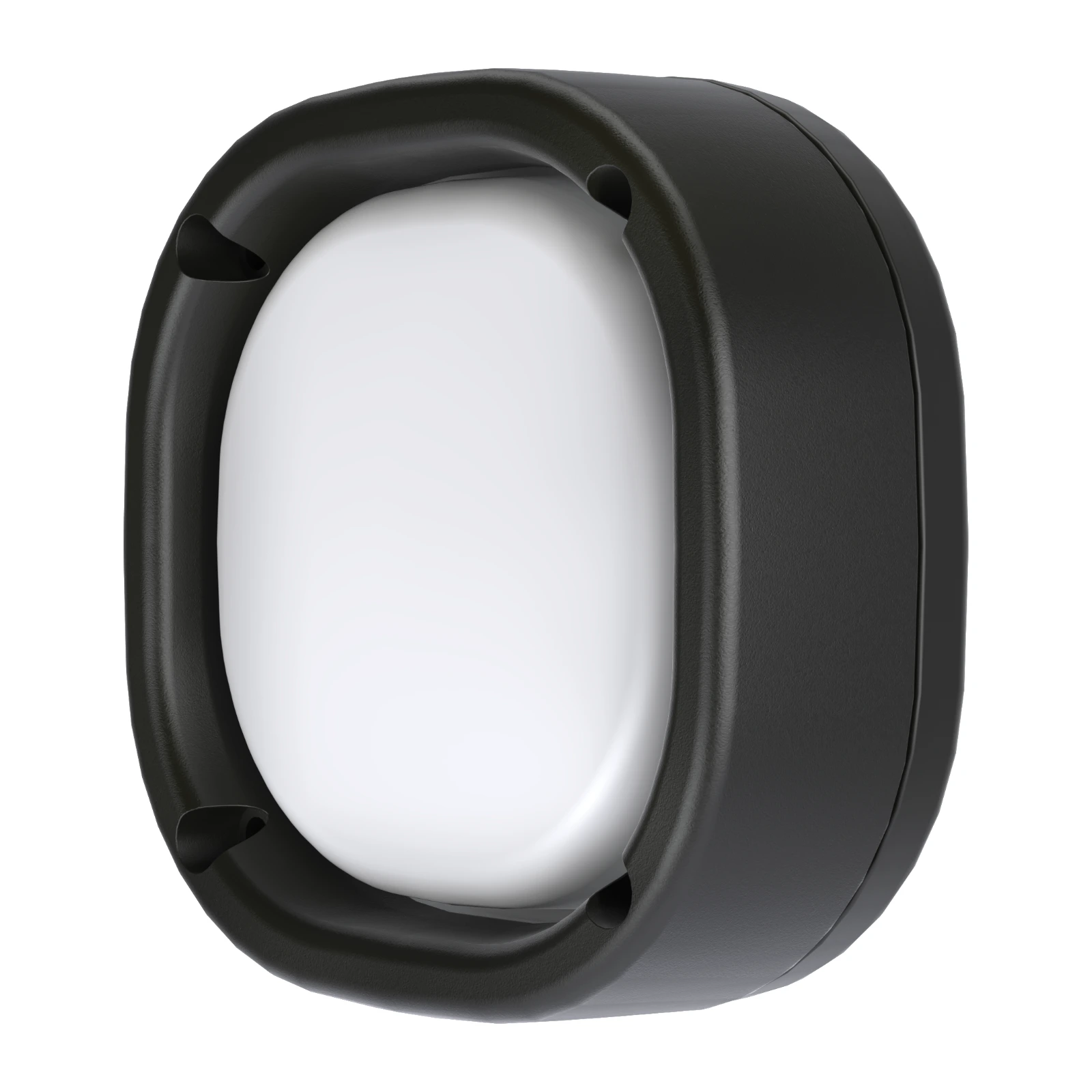

Standard versions give 700 to 1,800 effective lumens with wide symmetric or wide asymmetric lenses. Diffused versions (500 to 1,450 lm) spread soft, even light with no hot spots for close-range work, engine bays and operator areas.
Choose the lens and output above to see the TYRI part number. All versions run on 12–48V and are UL certified.
Key Benefits
- Flush surface mounting – no cooling flanges
- Uses the machine body as a heatsink
- Standard or diffused lens
- 500 to 1,800 effective lumens
- 12–48V, EMC class 5, UL certified
Specifications
- Brand – TYRI (Sweden)
- Product – 1010 Flush
- Effective lumen – 700 lm / 1,450 lm / 1,800 lm / 500 lm / 600 lm / 950 lm
- Machine voltage – 12–48V
- Lens patterns – Wide Symmetric, Wide Asymmetric, Diffused
- Colour temperature – 5,700 K
- Light source – LED
- Mounting – Flush
- Certification – UL certified
- Part numbers – 8 versions – select above to see the part number
Applications
- Construction and earthmoving equipment
- Forestry machines
- Mining and quarry equipment
