Description

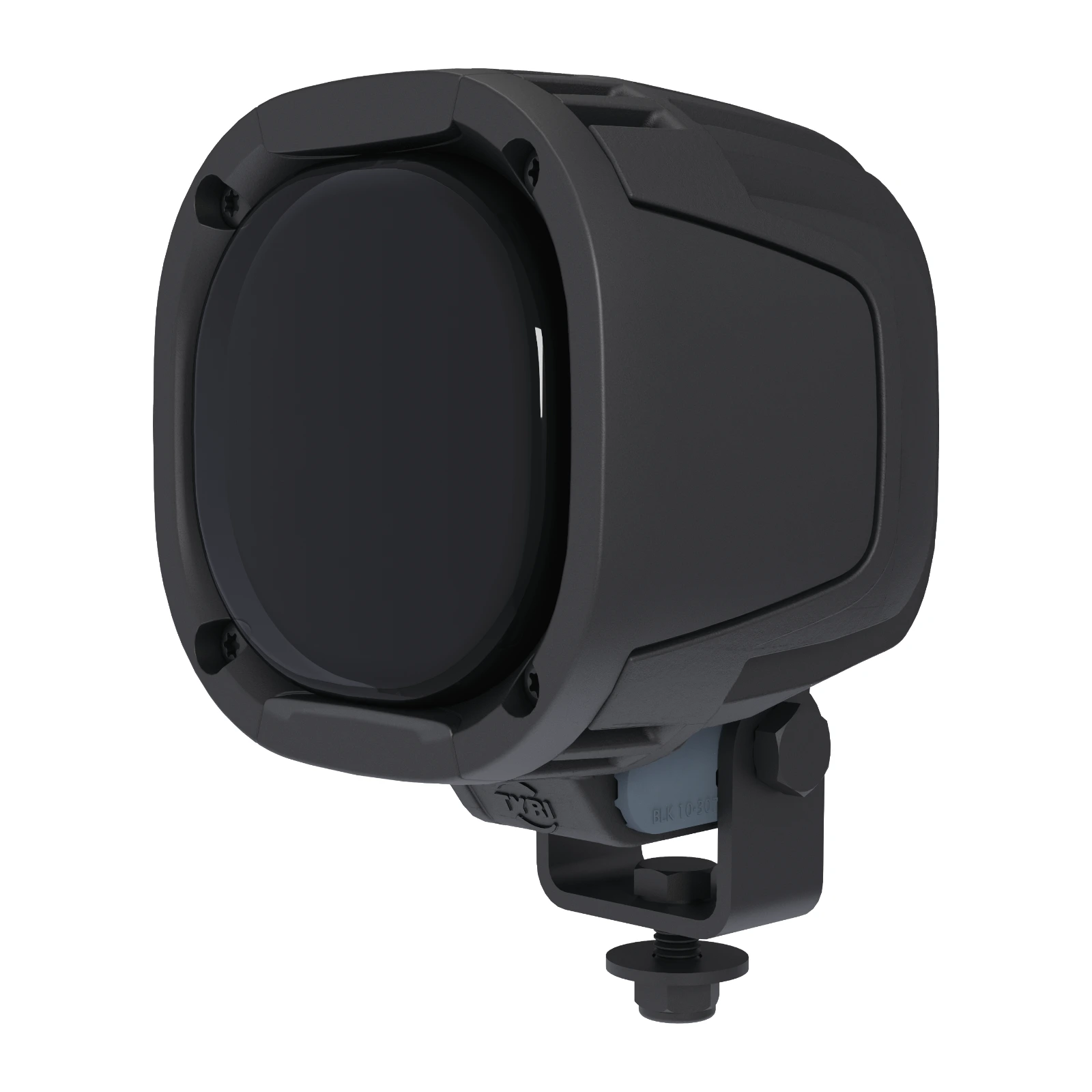

The TYRI 1010 IR uses 850 nm infrared emitters to provide powerful, reliable illumination for night-vision cameras and IR detectors, without visible light.
It is built to TYRI’s usual standard and has been tested for IP69K, vibration, salt spray and EMC. It runs on 12–48V (1.2 A at 12V, 0.6 A at 24V, 14 W).
Choose the lens pattern above to see the TYRI part number. Typical uses include military, security and surveillance vehicles.
Key Benefits
- 850 nm infrared – invisible to the eye
- For night-vision cameras and IR detectors
- Wide symmetric, wide asymmetric or spot lens
- 12–48V, 14 W
- IP69K, vibration and salt-spray tested
Specifications
- Brand – TYRI (Sweden)
- Product – 1010 IR
- Machine voltage – 12–48V
- Lens patterns – Wide Symmetric, Wide Asymmetric, Spot
- Wavelength – 850 nm
- Power – 14 W
- Light source – LED
- Mounting – Hanging, Standing, Pedestal
- Part numbers – 3 versions – select above to see the part number
Applications
- Military vehicles
- Security and surveillance vehicles
- Camera-assisted night operations
