Description

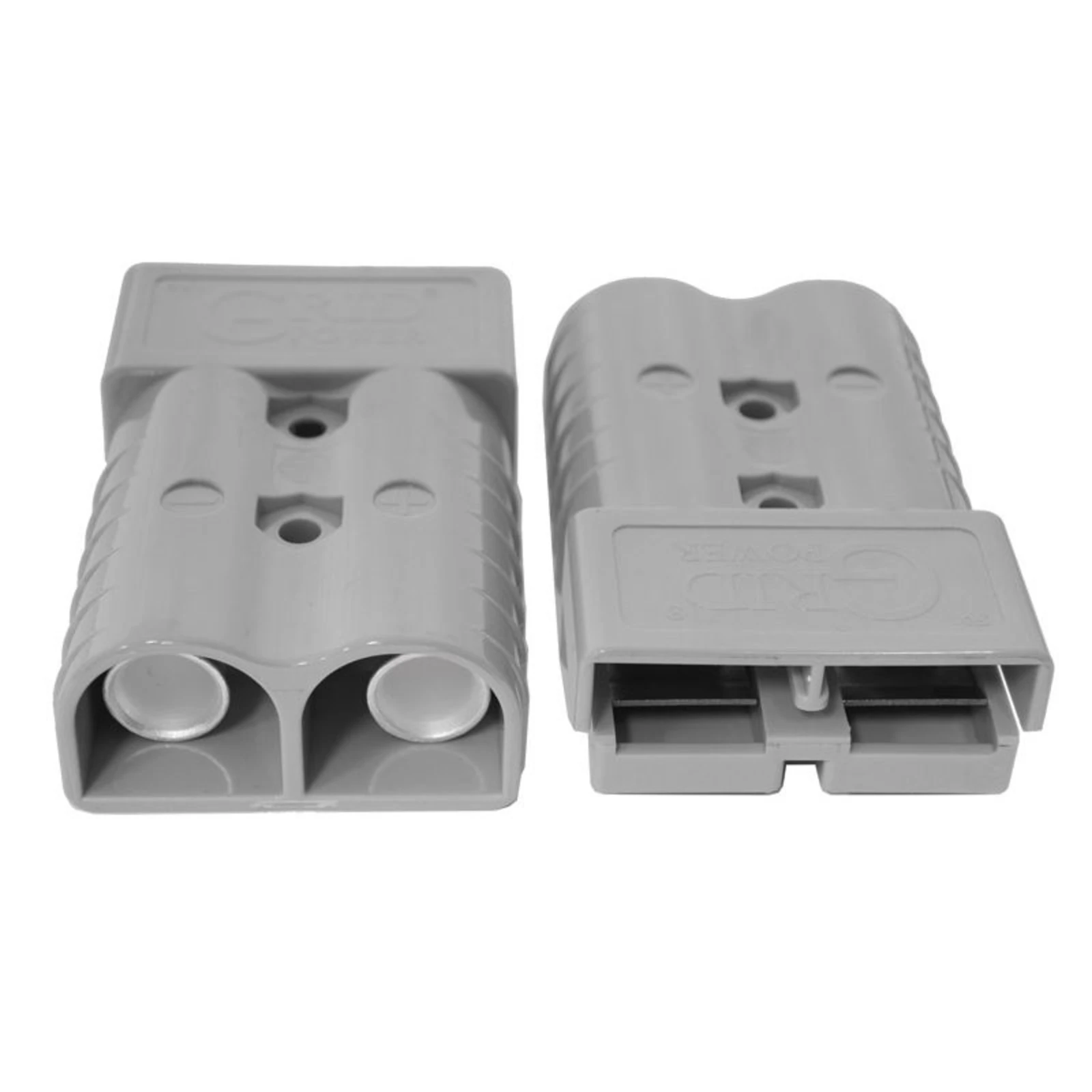

LV Automotive Anderson type power connectors are the go-to plug for high-current 12V and 24V DC connections that need to be made and broken quickly. This 350A grey pair suits 00 B&S (70 mm²) cable and is the heavy-duty choice for high-current battery banks, large inverters, jump-start leads and industrial battery connections.
The housings are genderless, so the two halves are identical and any two 350A grey connectors mate together. Silver-plated copper alloy contacts carry the load with low resistance, while stainless steel springs hold the contacts under constant pressure for a firm, self-wiping connection every time it is plugged in. The flame-retardant polycarbonate housing is rated UL94 V-0, works from −20 °C to +105 °C and is rated up to 600 V.
Supplied as a pair, ready to crimp or solder to your cable. Each housing has dovetail slots for joining several connectors side by side and mounting holes for a bracket or handle. Grey is the standard colour for general use.
Key Benefits
- 350A rating for 00 B&S (70 mm²) cable
- Genderless design, so any two 350A grey halves mate together
- Silver-plated copper alloy contacts for low resistance
- Stainless steel springs keep constant contact pressure
- UL94 V-0 flame-retardant polycarbonate housing
- Supplied as a pair
Specifications
- Brand – LV Automotive
- Part number – LV2453
- Type – Genderless Anderson type power connector
- Current rating – 350A
- Voltage rating – Up to 600V
- Cable size – 00 B&S (70 mm²)
- Contacts – Silver-plated copper alloy
- Springs – Stainless steel
- Housing – Polycarbonate, UL94 V-0
- Operating temperature – −20 °C to +105 °C
- Colour – Grey
- Pack quantity – 2 (pair)
Applications
- Dual battery and battery bank links
- Inverter and high-current charging circuits
- Winch and jump-start leads
- Forklift, machinery and industrial batteries
- Trailer, caravan and 4WD power systems
