Description
The Cole Hersee 880175 TR is a heavy-duty dual pole battery master switch that cuts all battery power from vehicle electrical systems. It suits applications that need two circuits switched together, or both positive and negative isolated at once.
It is rated 500A continuous with two 4/0 input and two 4/0 output cables, and suits 6V to 48V systems. The switch meets SAE J11 and ISO 8846, is rated IP67 and IP69K so it can be mounted in exposed locations, and is tested to 30G shock and 8G vibration.

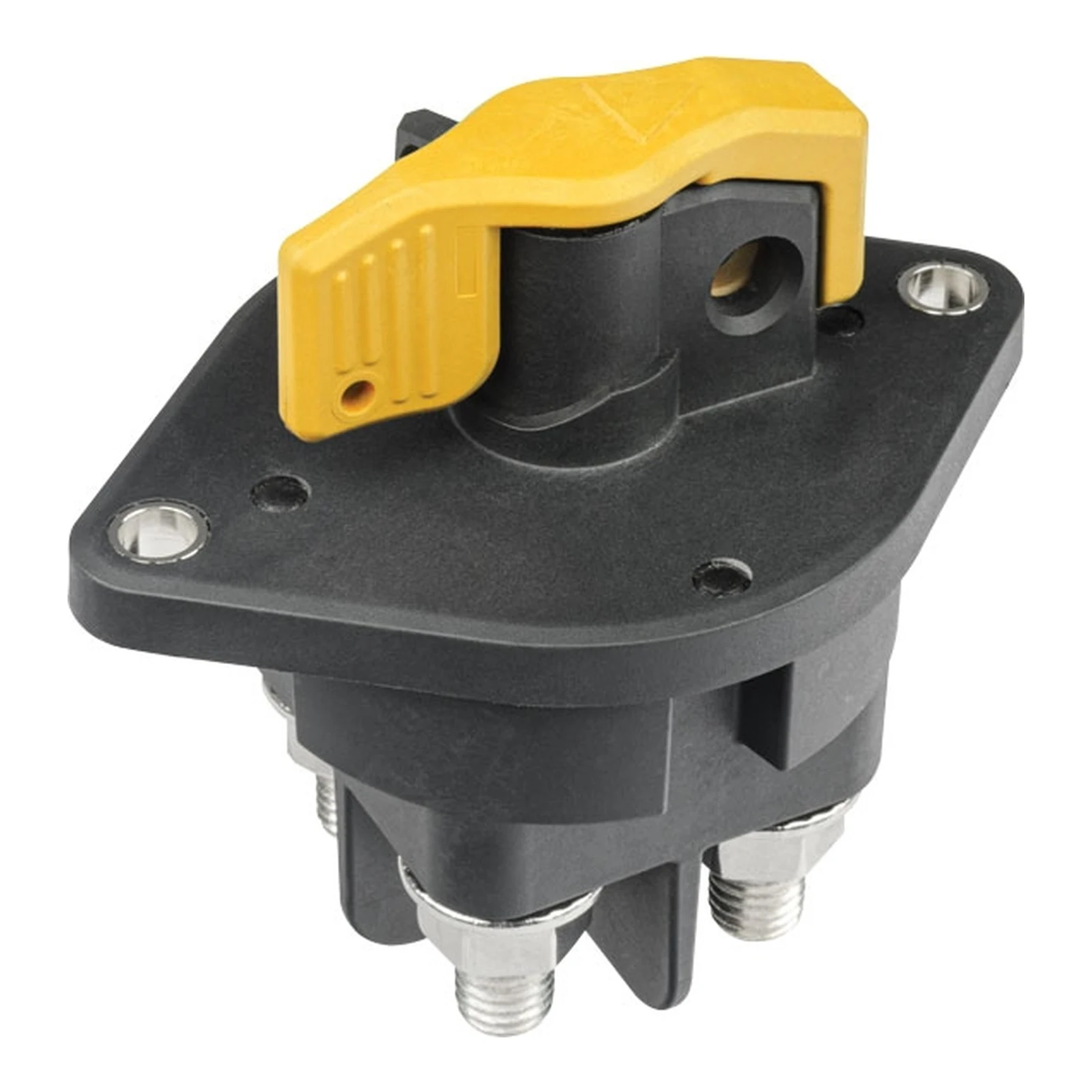

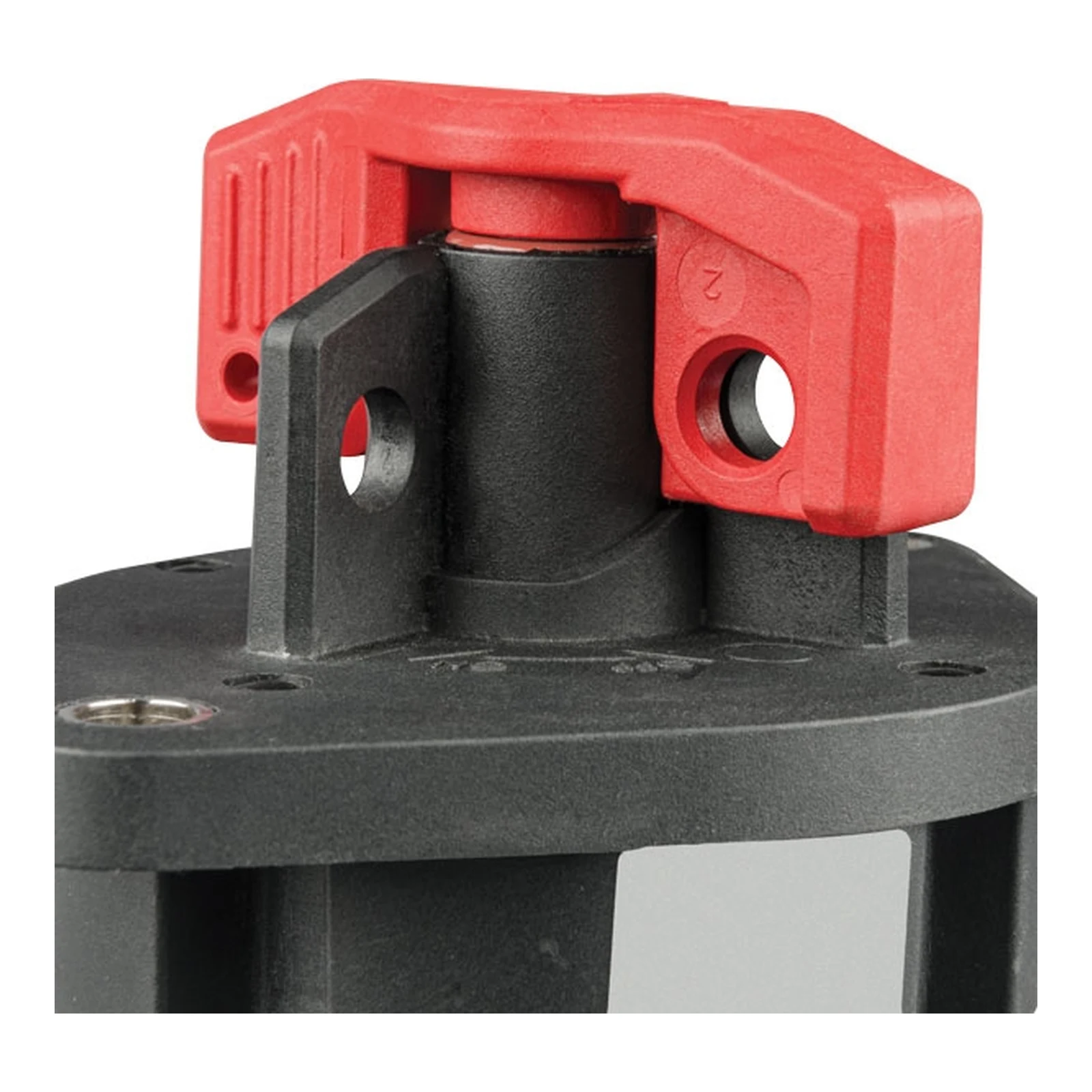

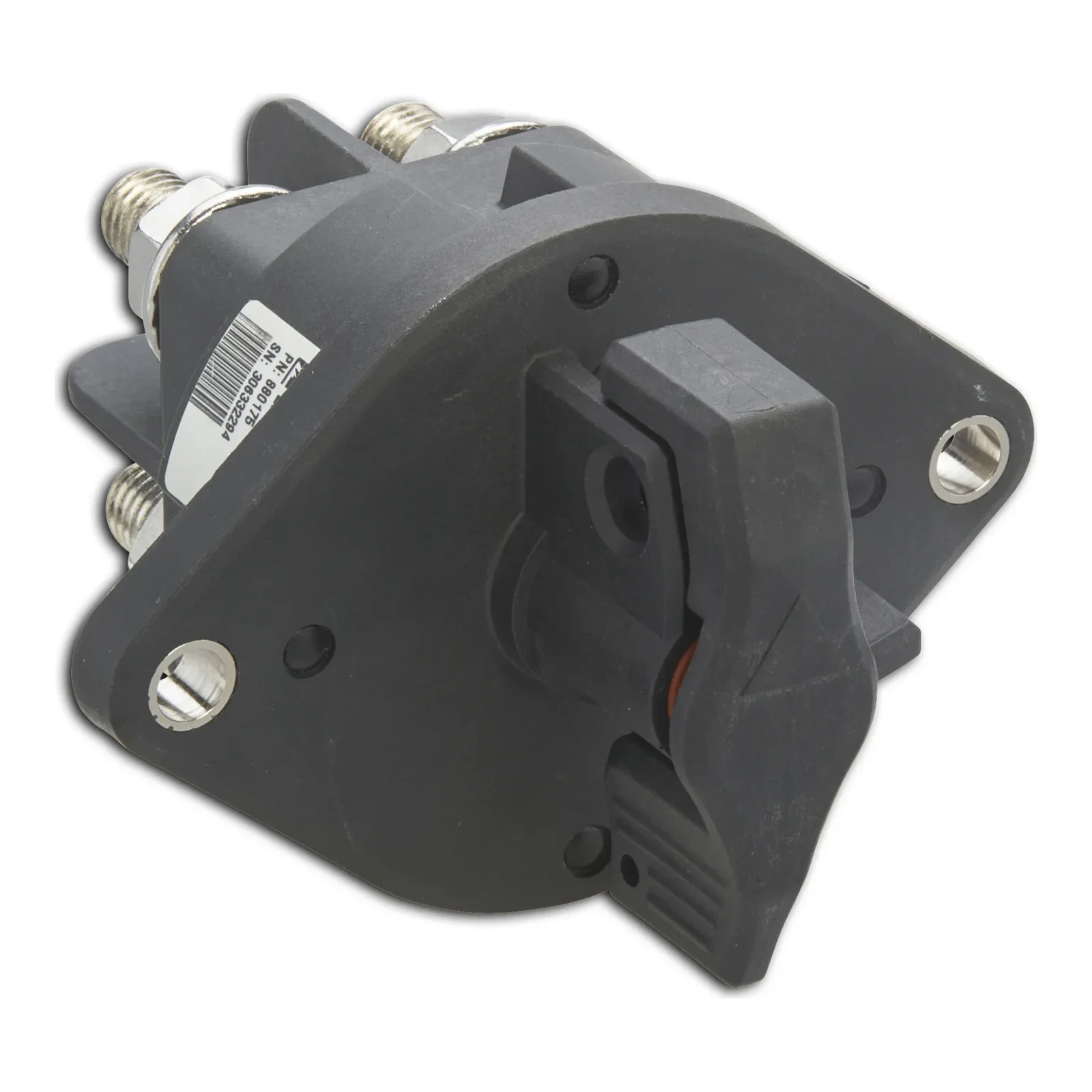

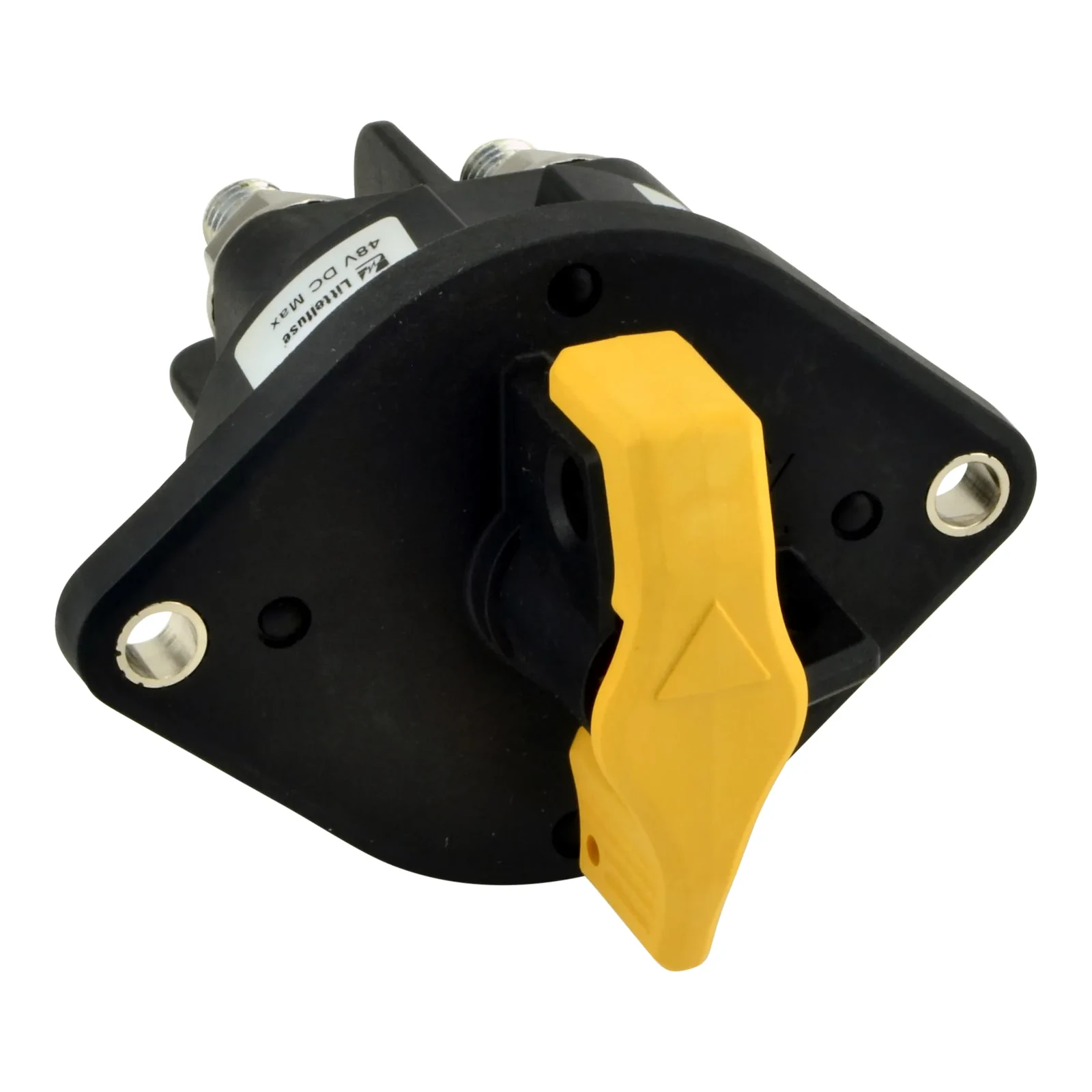

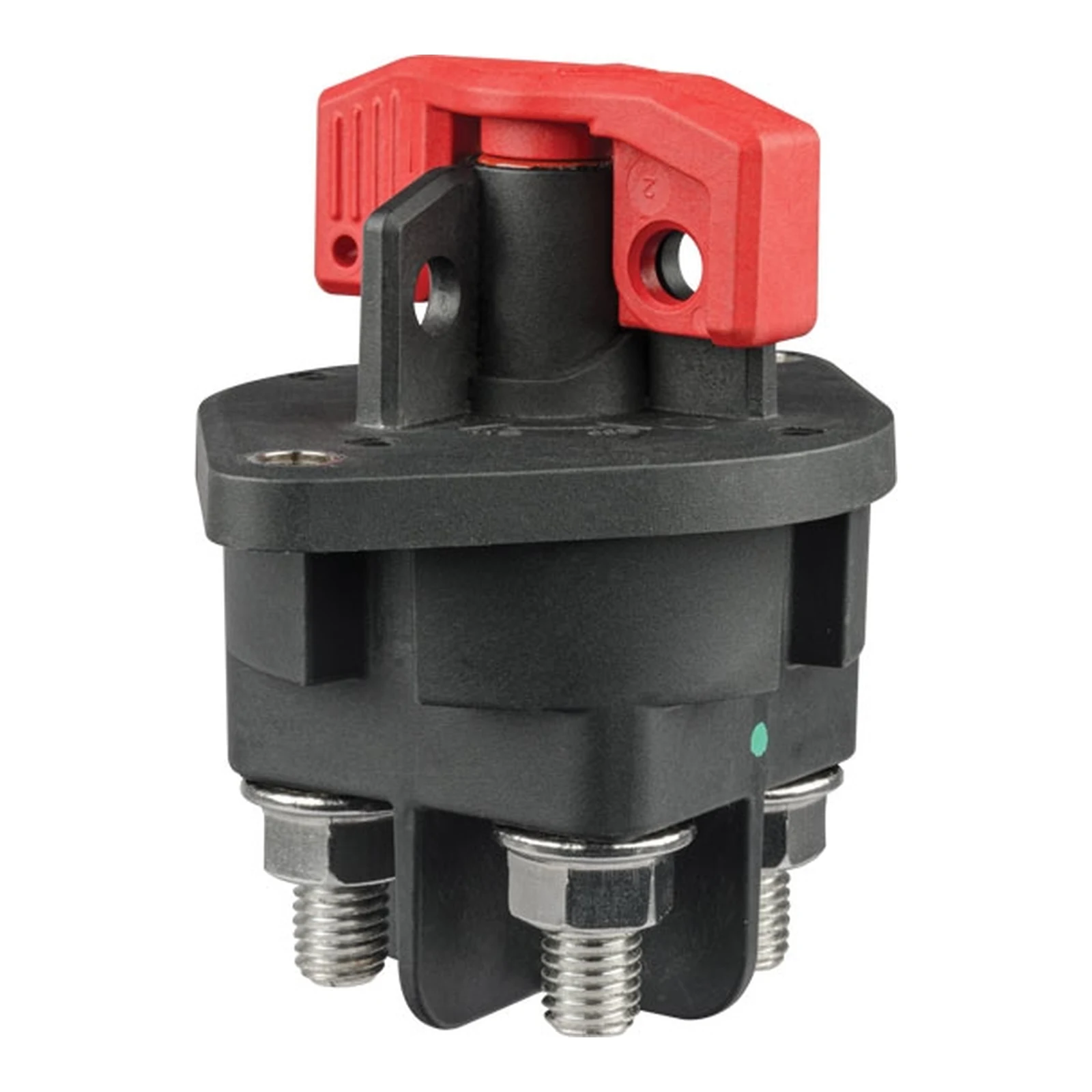

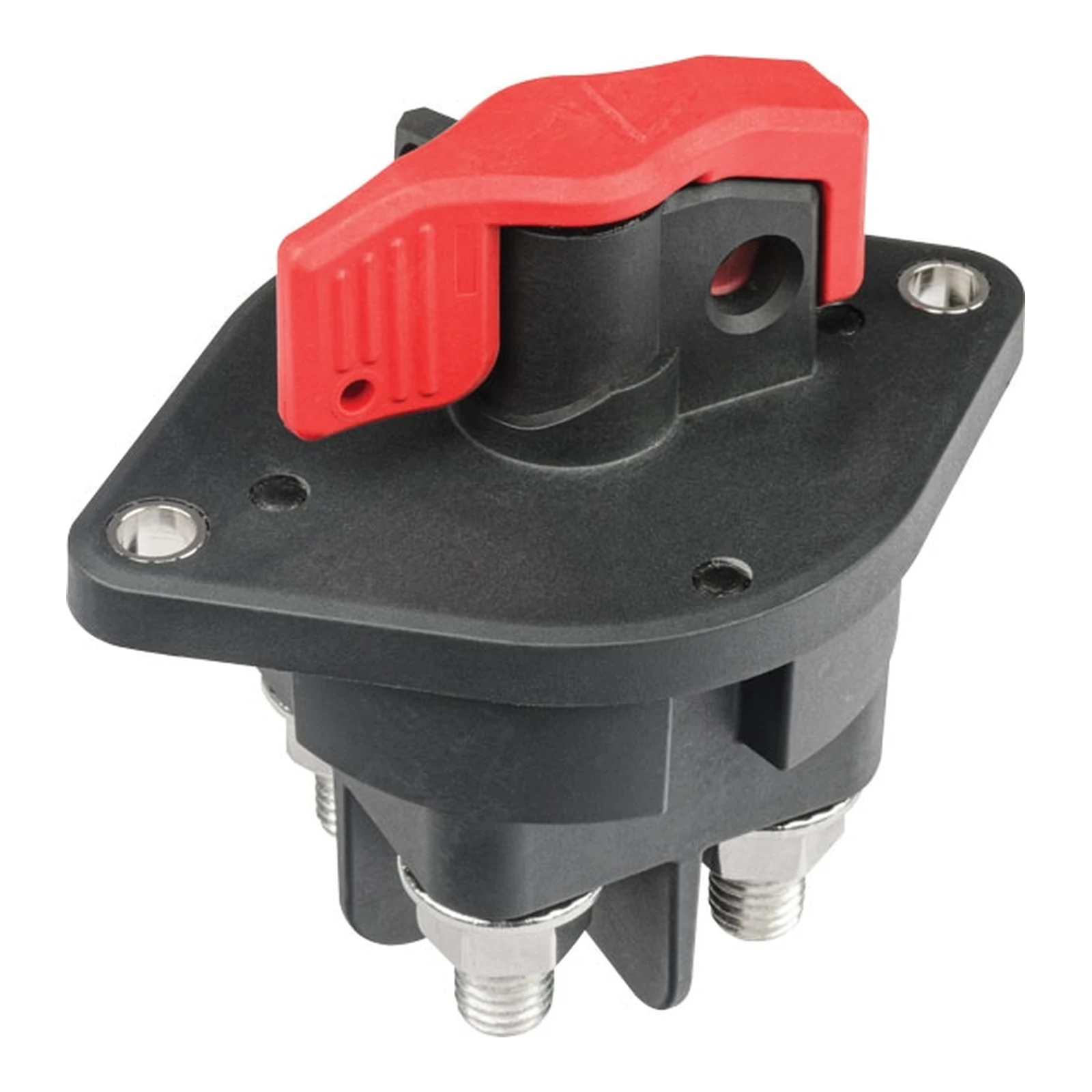

Built-in lockout/tagout secures the switch in the off position. M12 terminal studs, 25mm long, take heavy battery cable, and the operating range is −50°C to +85°C (DC rated to 105°C). Black, red and yellow handles are available.
Key Benefits
- 500A continuous for heavy-duty dual pole switching
- Switches two circuits, or positive and negative, together
- IP67 and IP69K for exposed mounting and washdown
- Built-in lockout/tagout
- M12 terminal studs for heavy battery cable
- Meets SAE J11 and ISO 8846
Specifications
- Part numbers – 880175B, 880175BX, 880175-0001B, 880175-0001BX, 880175-0002B, 880175-0002BX
- Handle colours – Black (880175), red (880175-0001), yellow (880175-0002)
- Circuitry – DPST, On/Off
- Voltage – 6V–48V multivoltage
- Amperage – 500A continuous with 2 × 4/0 input and 2 × 4/0 output cables
- Terminal studs – M12 × 25mm, tin-plated copper
- Maximum terminal torque – 30 Nm
- Lockout/tagout – Built in
- Standards – SAE J11, ISO 8846
- Ingress protection – IP67 / IP69K
- Shock / vibration – 30G / 8G
- Operating temperature – −50°C to +85°C (DC rated to 105°C)

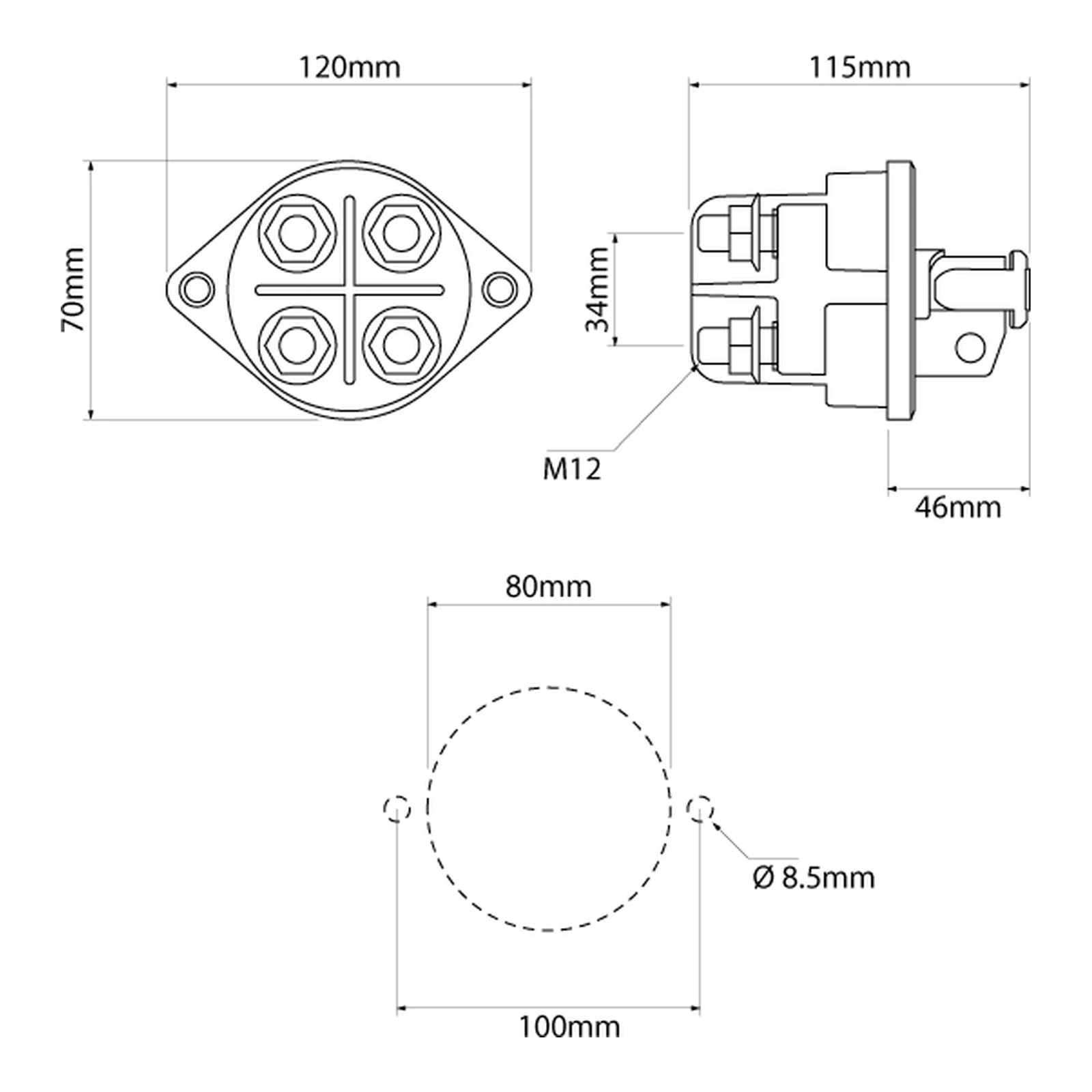

- Dimensions – H 85 × D 103 × W 120 mm
Applications
- Mining and heavy plant
- Heavy trucks and transport fleets
- Marine vessels
- Emergency and specialist vehicles
