Description

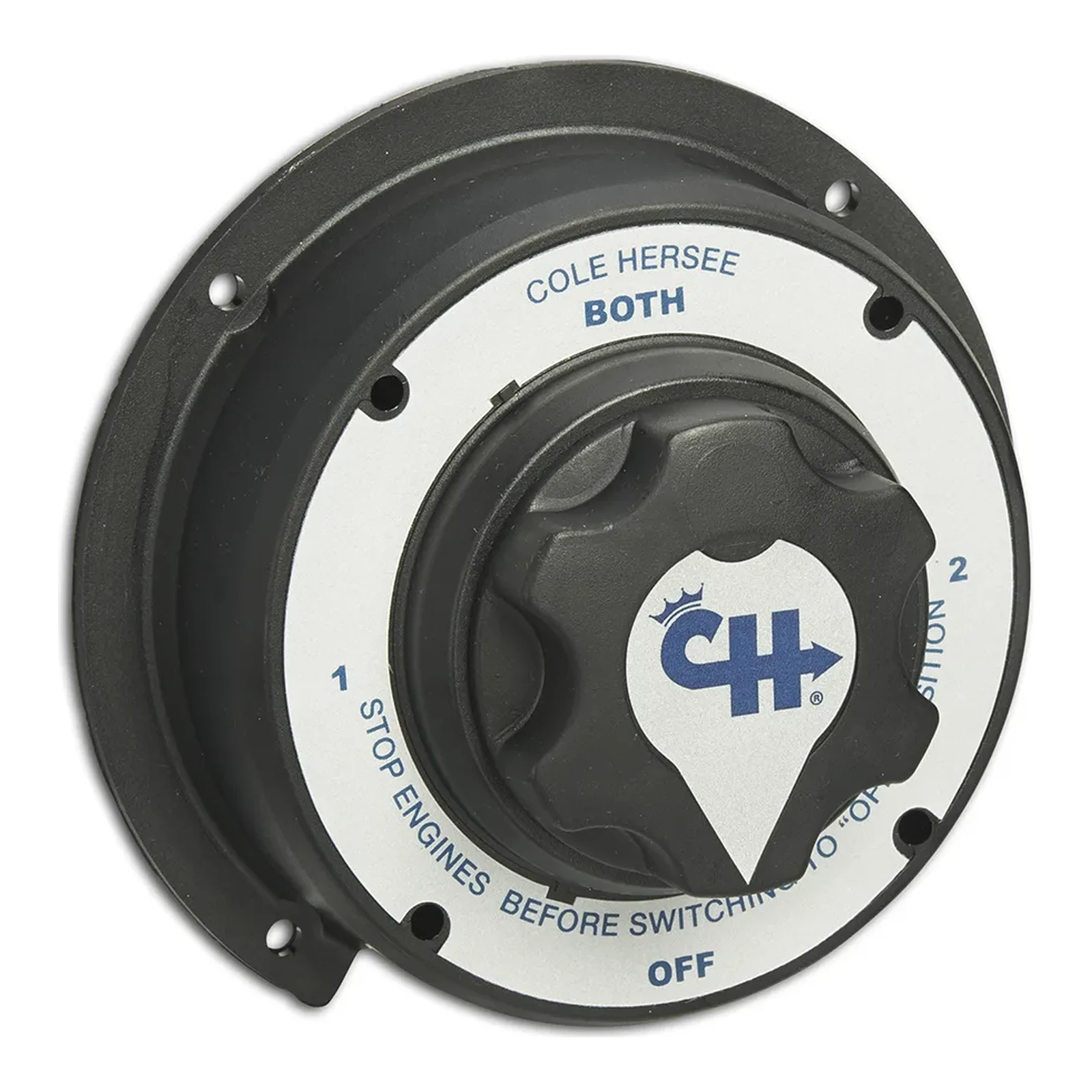

The Cole Hersee M750 is a dual battery selector and disconnect switch for any vehicle or vessel with two batteries, where one starts the engine and the other powers auxiliary loads. It is common in trucks, boats, RVs, police and rescue vehicles, ambulances and fire equipment.
Four positions let the operator turn both batteries off, run on battery 1, run batteries 1 and 2 together in parallel, or run on battery 2. Combining the batteries provides backup starting power in cold weather or an emergency, and either battery can be selected for charging.
In the off position the switch also provides battery disconnect, protecting against electrical fire, tampering, theft and battery drain. It has a high-impact engineered plastic case and knob, heavy-duty 3/8″ copper stud terminals, and is rated 310A continuous and 500A intermittent, UL 707B.
Key Benefits
- Four positions: Off, Battery 1, Batteries 1 and 2, Battery 2
- Parallels batteries for backup or cold-weather starting
- Also acts as a battery disconnect
- 310A continuous, 500A intermittent
- Heavy-duty 3/8″ copper stud terminals
- UL 707B rated
Specifications
- Part numbers – M750, M750BL
- Positions – 1: Batteries off; 2: Battery 1 on; 3: Batteries 1 and 2 on; 4: Battery 2 on
- Voltage – 6V–36V multivoltage
- Amperage – 500A intermittent, 310A continuous
- Case and knob – High-impact, high-temperature engineered plastic
- Terminals – Heavy-duty 3/8″ copper studs
- Approvals – UL 707B
- Dimensions – H 67 × Ø 127 mm
- Application – Heavy duty
- Note – Battery terminals must be the same polarity; turn to Off when using a dual battery charger
Applications
- Trucks with dual battery systems
- Boats and marine vessels
- RVs and caravans
- Police, rescue, ambulance and fire vehicles
