Description

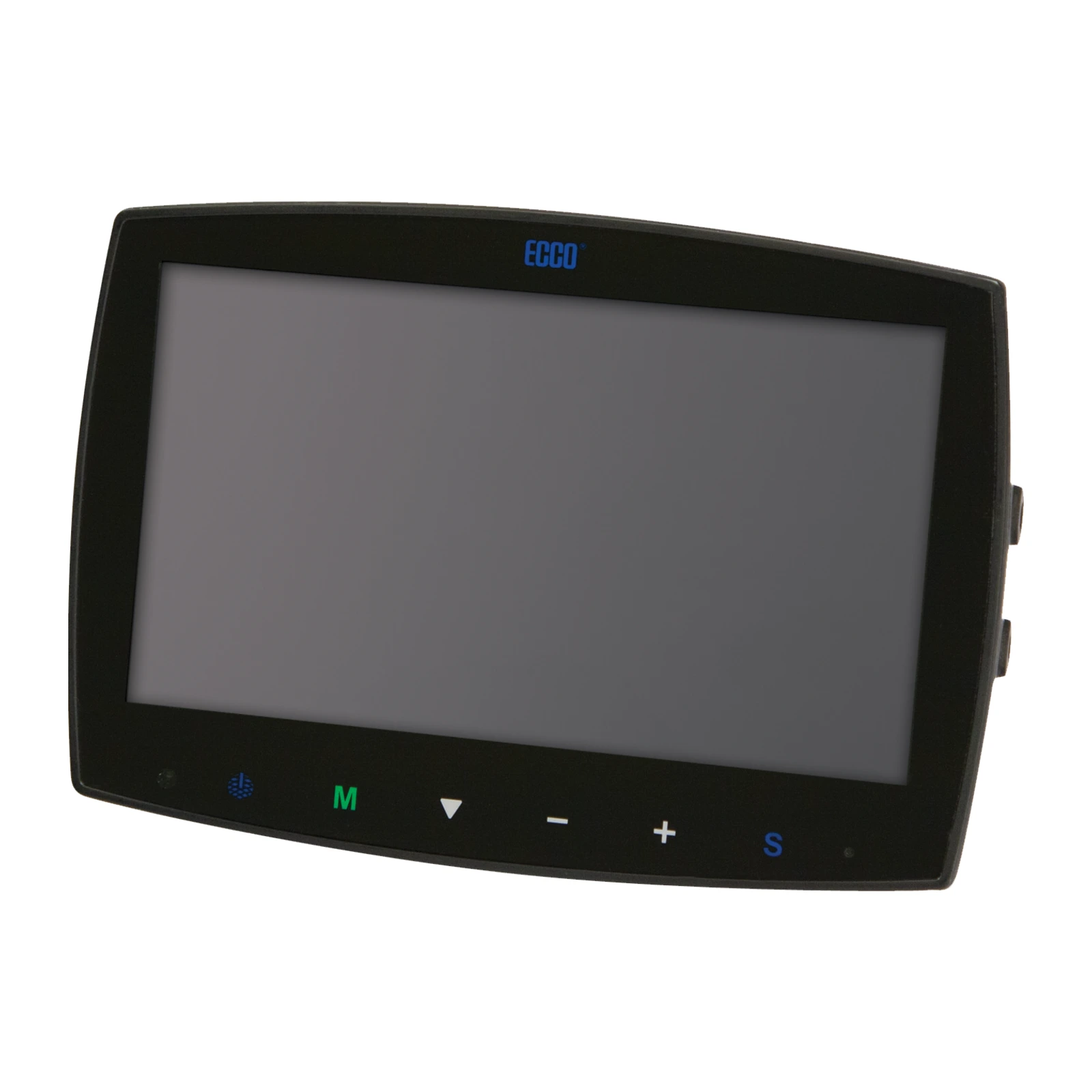

The ECCO EC7000-QM is a Gemineye™ 7″ quad view colour LCD monitor – the monitor supplied with the EC7000-QK system.
It shows up to four cameras in split-screen or quad view, with an internal controller, audio, day/night light sensor, mirror image, remote control and sunshade. It draws 6.4 W on 12–24V.
It measures 213 × 152 × 71 mm, weighs 1.5 kg and operates from −30 °C to +70 °C. Approvals FCC, CE, RoHS, with a 2-year ECCO warranty.
Key Benefits
- 7″ quad view / split-screen colour LCD
- Up to 4 cameras
- Audio and day/night sensor
- Mirror image, remote and sunshade
- 2-year ECCO warranty
Specifications
- Part number – EC7000-QM
- Brand – ECCO
- Product type – Monitor
- Connection – Wired
- Screen size – 7″
- Display – LCD colour, quad view
- Max cameras – 4
- Power – 6.4 W
- Operating voltage – 12–24V DC
- Dimensions – 213 × 152 × 71 mm
- Weight – 1.5 kg
- Operating temperature – −30 °C to +70 °C
- Approvals – FCC, CE, RoHS
- Warranty – 2 years (ECCO)
Applications
- Replacement monitors for ECCO systems
- Adding a second display
- Trucks, buses and plant cabs
- Upgrading an existing ECCO camera setup
