Description

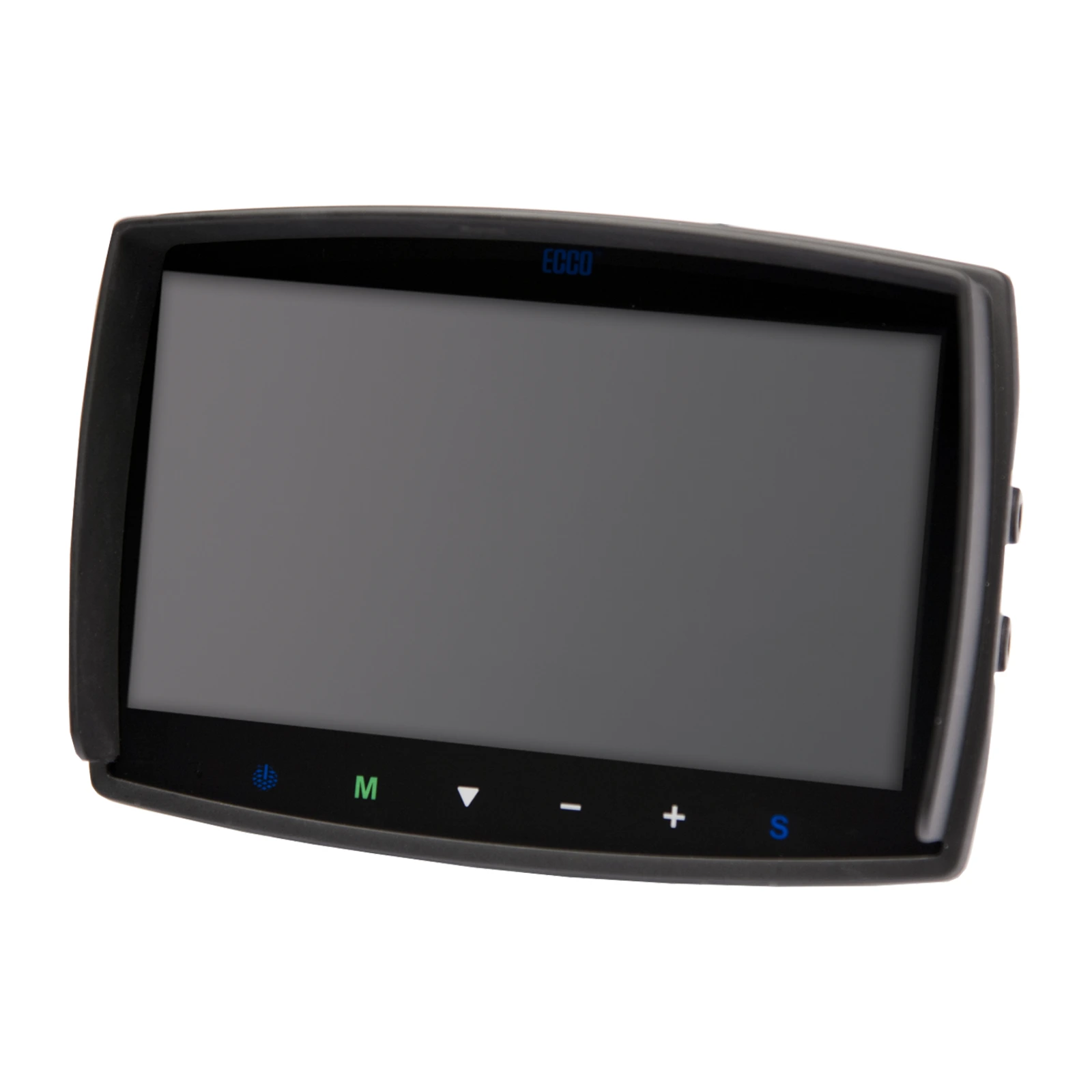

The ECCO EC7003-M is a Gemineye™ 7″ high-resolution touchscreen colour LCD monitor – the monitor supplied with the EC7003-K system.
It has touchscreen menu control, an internal controller, audio, a day/night light sensor, mirror image, remote control and sunshade, and accepts up to three cameras via 4-pin connections. It draws 6 W on 12–24V.
The monitor measures 213 × 152 × 71 mm, weighs 1.5 kg and operates from −20 °C to +70 °C. Approvals FCC, CE, ECE R10, RoHS, RCM, with a 2-year ECCO warranty.
Key Benefits
- 7″ touchscreen colour LCD
- Audio and day/night sensor
- Up to 3 cameras
- Mirror image, remote and sunshade
- 2-year ECCO warranty
Specifications
- Part number – EC7003-M
- Brand – ECCO
- Product type – Monitor
- Connection – Wired
- Screen size – 7″
- Display – Touchscreen LCD colour
- Max cameras – 3
- Features – Audio, day/night sensor, mirror image, remote control, sunshade
- Power – 6 W
- Operating voltage – 12–24V DC
- Dimensions – 213 × 152 × 71 mm
- Weight – 1.5 kg
- Operating temperature – −20 °C to +70 °C
- Approvals – FCC, CE, ECE R10, RoHS, RCM
- Warranty – 2 years (ECCO)
Applications
- Replacement monitors for ECCO systems
- Adding a second display
- Trucks, buses and plant cabs
- Upgrading an existing ECCO camera setup
