Description

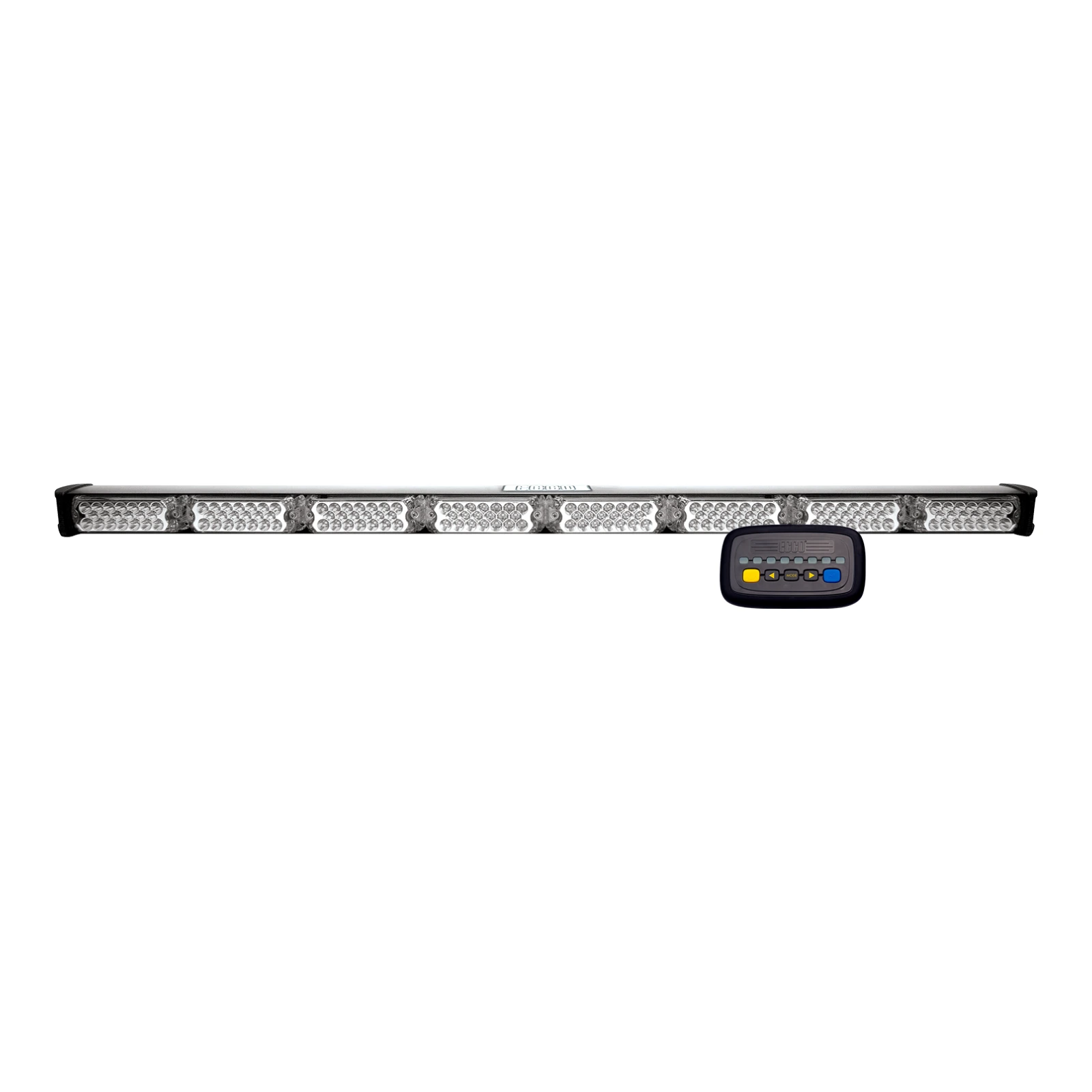

The ECCO ED3315A is an ED3300 Series LED Safety Director™, a high-intensity traffic advisor that directs vehicles approaching from behind safely around a stopped truck or ute. The 1242 mm light stick mounts flush or on the supplied brackets, inside or outside the vehicle, so it suits roof racks, headboards, tailgates and rear bodywork.
Eight reflective amber modules, each packed with 20 LEDs, give the ED3300 considerably more output than the 3400 Series. It runs nine built-in patterns – left, left solid, right, right solid, centre out, centre out solid, wig wag, alternating quad flash and alternating single flash – on 12–24 VDC at 1.6 A, is rated SAE Class I with ECE R10 electromagnetic compatibility, and is built from extruded aluminium with a polycarbonate lens. Modules can be replaced individually, with amber, blue, clear and red modules available from ECCO.
The ED3315A kit includes the light bar, the 3410CB soft-touch in-cab controller with a live LED display of the selected pattern, an auxiliary switch with a 20 A auxiliary relay, and a 4.6 m (15 ft) harness to suit utes and smaller vehicles. ECCO backs the ED3300 Series with a 5-year warranty.
Key Benefits
- 1242 mm high-output amber LED Safety Director
- 20 LEDs per module for greater visibility than the 3400 Series
- Nine patterns including left, right and centre-out arrows plus warning flashes
- 12–24 VDC operation for utes, trucks and heavy vehicles
- In-cab controller, 20 A auxiliary relay and 4.6 m (15 ft) harness included
- Individually replaceable light modules
- SAE Class I and ECE R10 compliant, 5-year ECCO warranty
Specifications
- Part number – ED3315A
- Series – ECCO ED3300 Series LED Safety Director™
- Length – 1242 mm
- Height × depth – 74 mm × 78 mm
- LED colour – Amber
- Light modules – 8 reflective modules, 20 LEDs each
- Replacement modules – ER3300A amber, ER3300B blue, ER3300C clear, ER3300R red
- Flash patterns – 9 (L, LS, R, RS, C, CS, WW, AQF, ASF)
- Input voltage – 12–24 VDC
- Max current – 1.6 A
- Harness length – 4.6 m (15 ft)
- Controller – 3410CB soft-touch in-cab controller with auxiliary switch
- Auxiliary relay – 20 A, included
- Construction – Extruded aluminium housing, polycarbonate lens
- Mounting – Flush or bracket mount, interior or exterior
- Approvals – SAE Class I, ECE R10
- Operating temperature – −30 °C to +50 °C
- Warranty – 5 years
Applications
- Traffic management, road maintenance and line-marking trucks
- Service, utility and roadside assistance vehicles
- Tow trucks, tippers and council fleet vehicles
- Mining, construction and heavy plant support vehicles
