Description
The ECCO ED3802 is an ultra-thin, multi-colour LED directional warning light from ECCO’s ED3800 Series. One 9 mm-deep housing carries two, three or four LED colours, so a single light can switch between warning colours – for example amber for roadside work and red/blue where permitted – without fitting extra lights. It fits on grilles, bumpers, tailgates, toolboxes, cab panels and headboards where a bulkier warning light would not.
Dual-colour versions have 12 LEDs and up to 69 flash patterns, tri-colour versions have 18 LEDs and up to 24 patterns, and the quad-colour ED3802BAWG has 24 LEDs and 22 patterns, all behind a clear polycarbonate lens with curved end optics for off-angle visibility. Every ED3802 runs on 12–24 VDC, with SAE J595 Class 1 ratings on the amber, blue, red and white colours (ECE R65 and California Title 13 Class B on most dual-colour versions – see each version’s details above).
Up to eight units can be linked on the sync wire to flash simultaneously or alternate in Phase 1 and Phase 2, so the ED3802 can be combined with ED3801 single-colour lights and ECCO beacons to build a complete warning package. The aluminium housing is sealed to IP67 and IP69K for high-pressure washdown, and ECCO backs it with a 5-year warranty.
Key Benefits
- Two, three or four warning colours in one ultra-thin 9 mm housing
- 12 versions: dual-colour (AB, AG, AR, AW, BW, RW), tri-colour (AGW, BAW, RAW, RBA, RBW) and quad-colour (BAWG)
- Up to 69 flash patterns plus steady burn, selected with the pattern wire
- Synchronises with up to 8 units for simultaneous or alternating operation
- SAE J595 Class 1 rated colours; ECE R65 Class 1 on most dual-colour versions
- IP67 and IP69K sealed aluminium housing for dust, rain and high-pressure washdown
- Wide 12–24 VDC input suits light vehicles, trucks and mobile plant
- Backed by ECCO’s 5-year warranty
Specifications

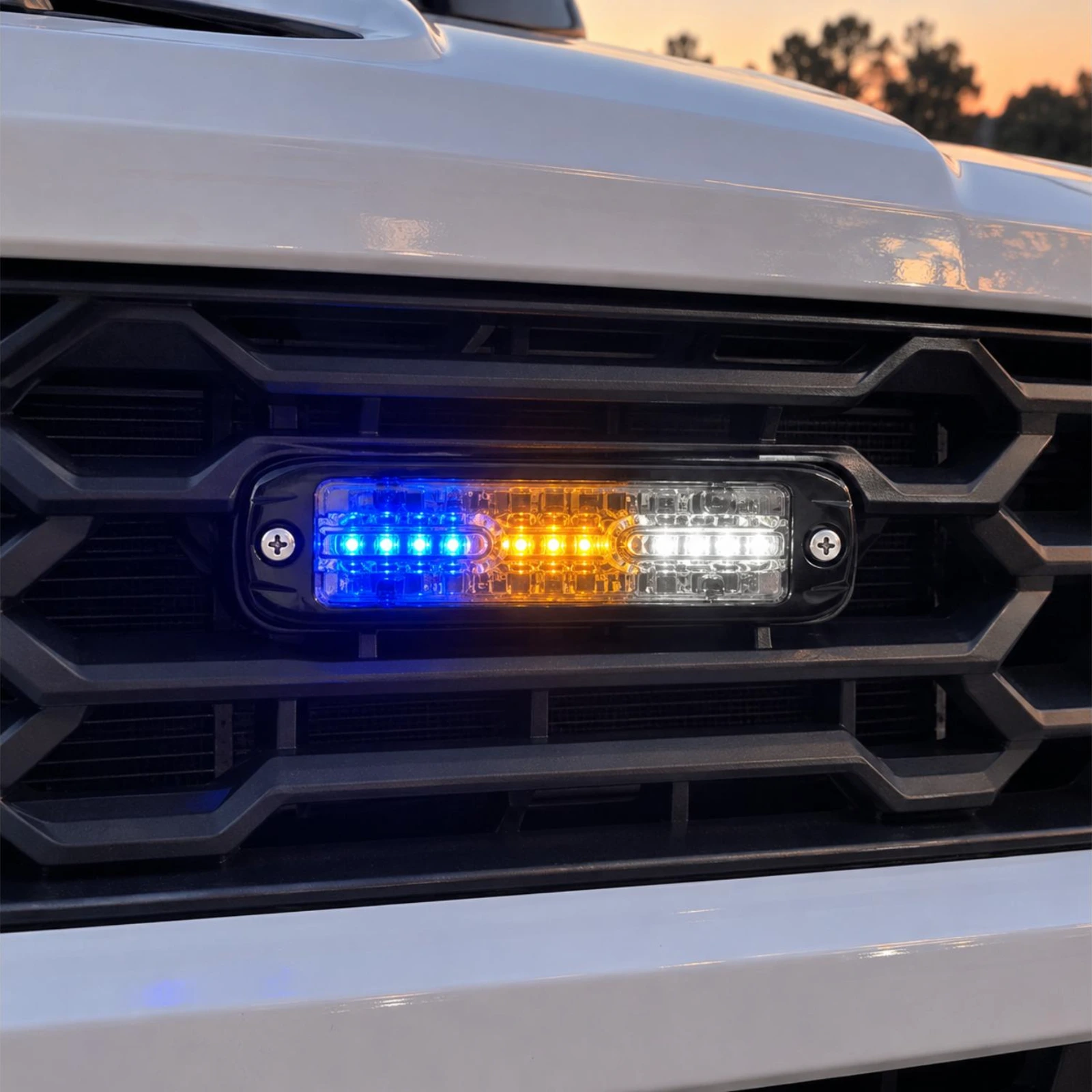

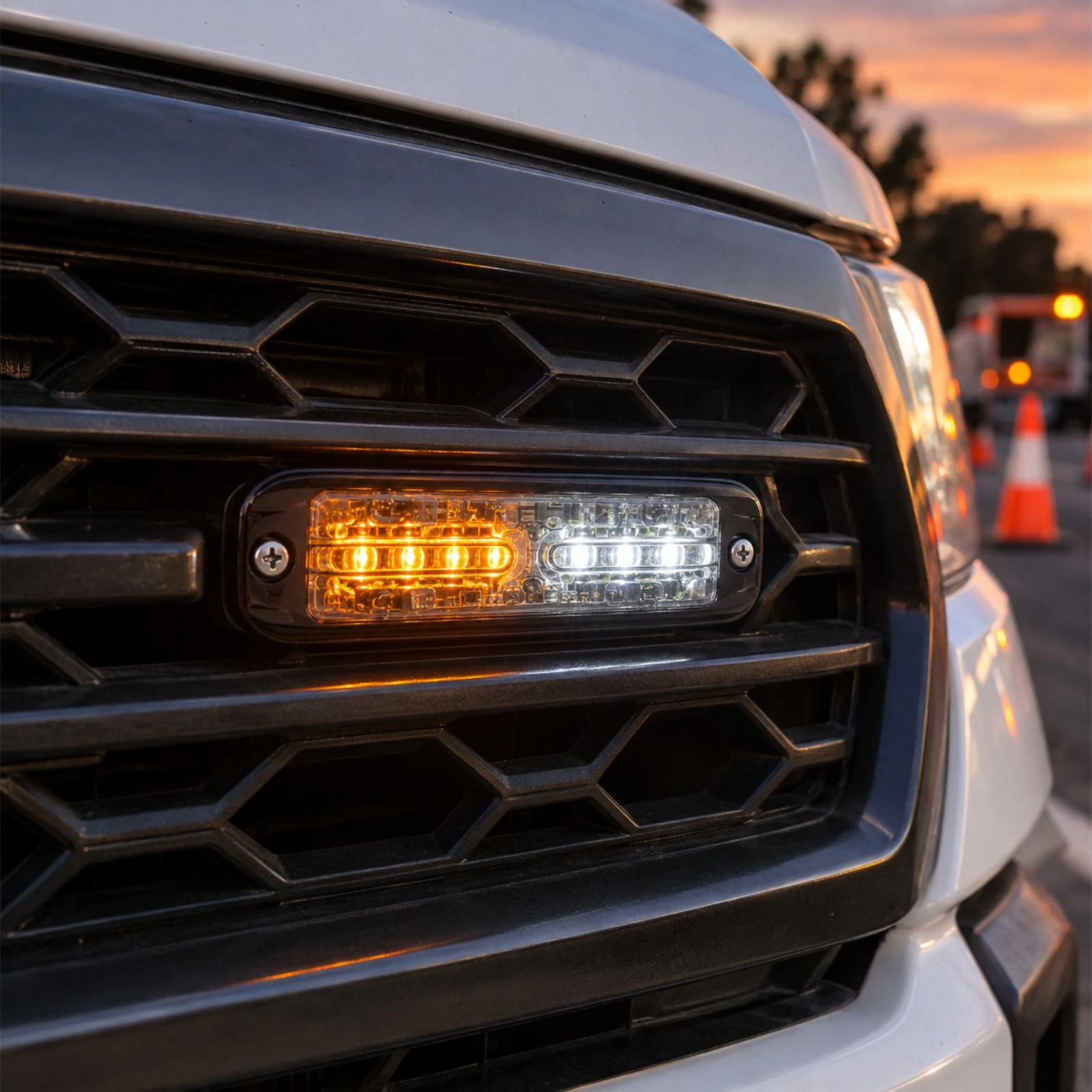

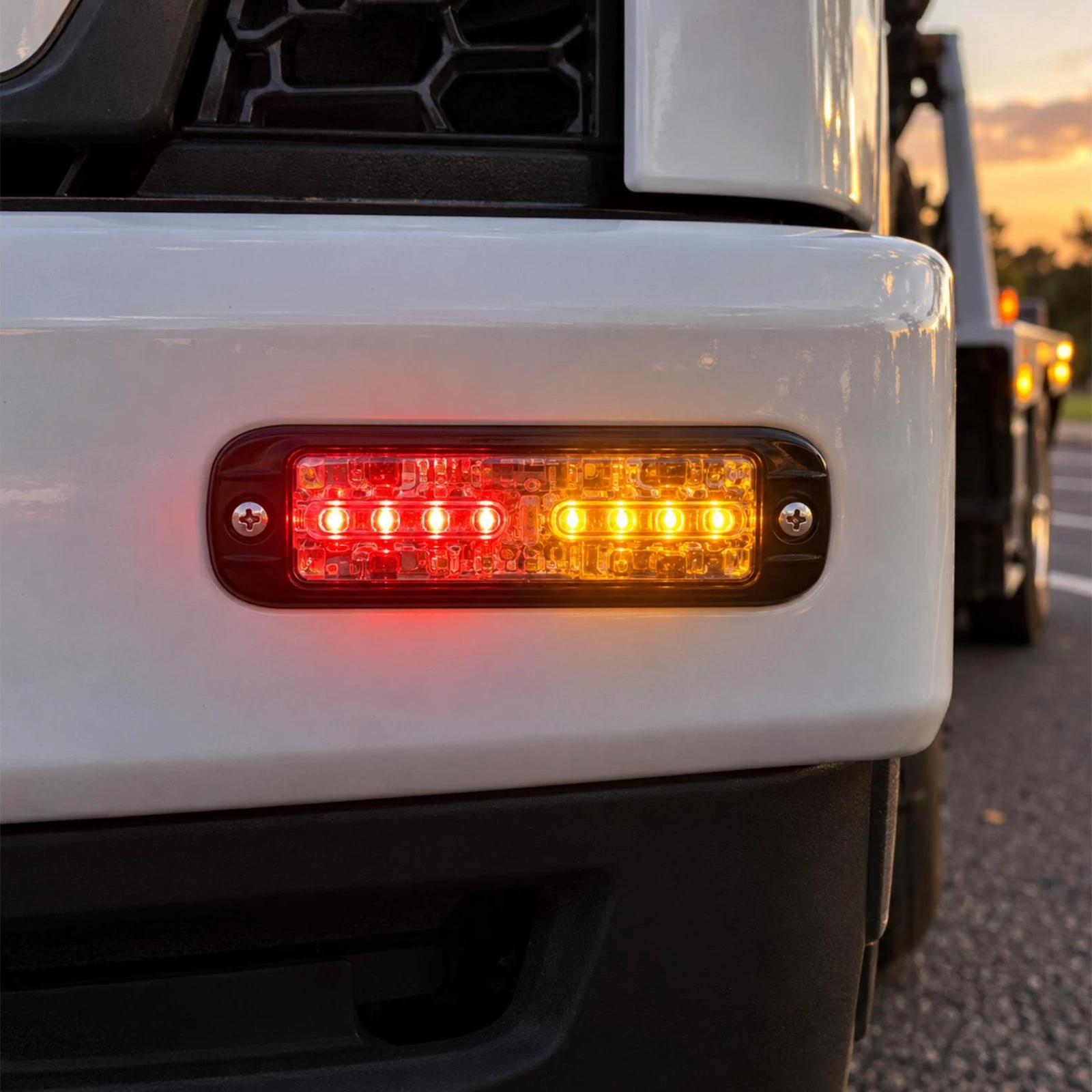

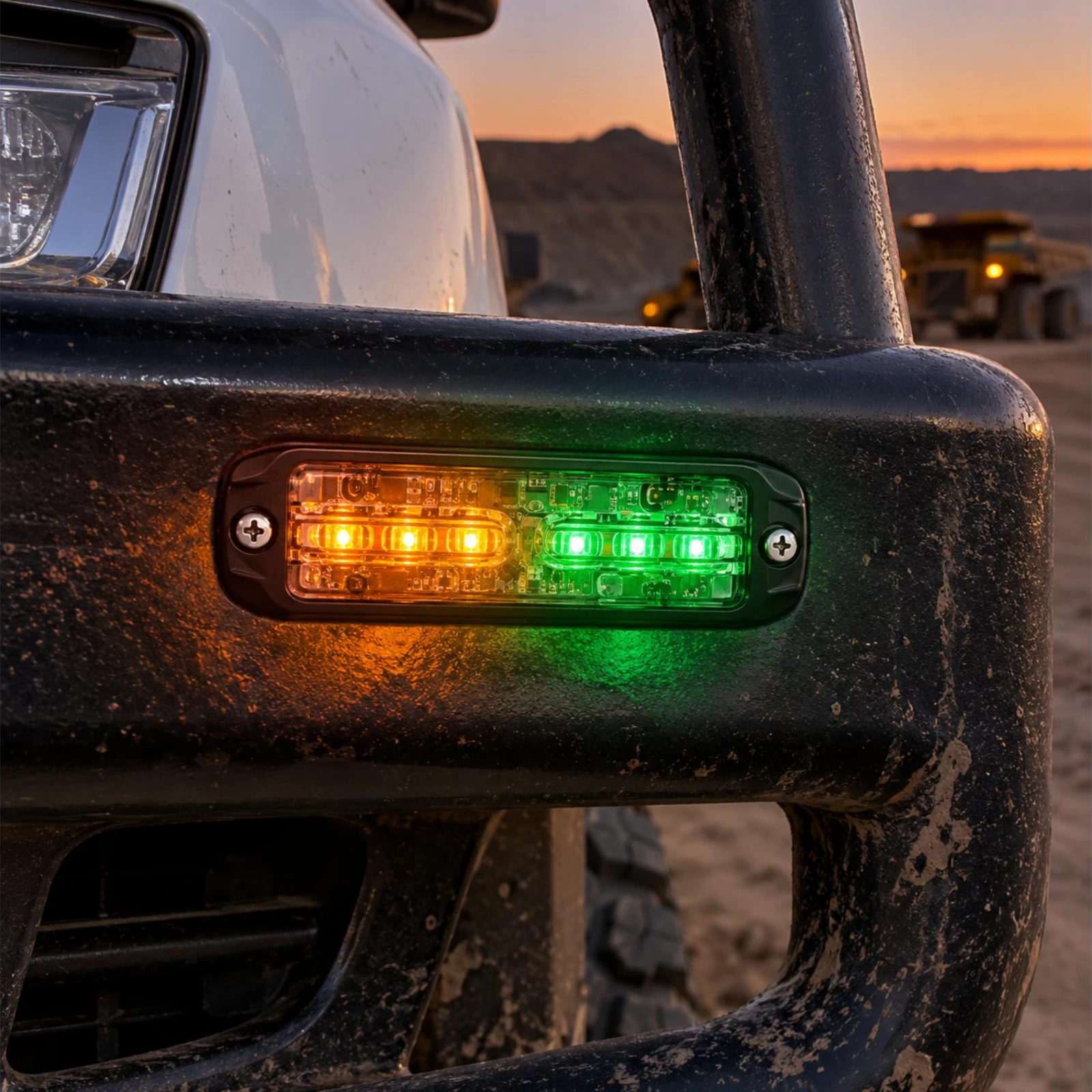

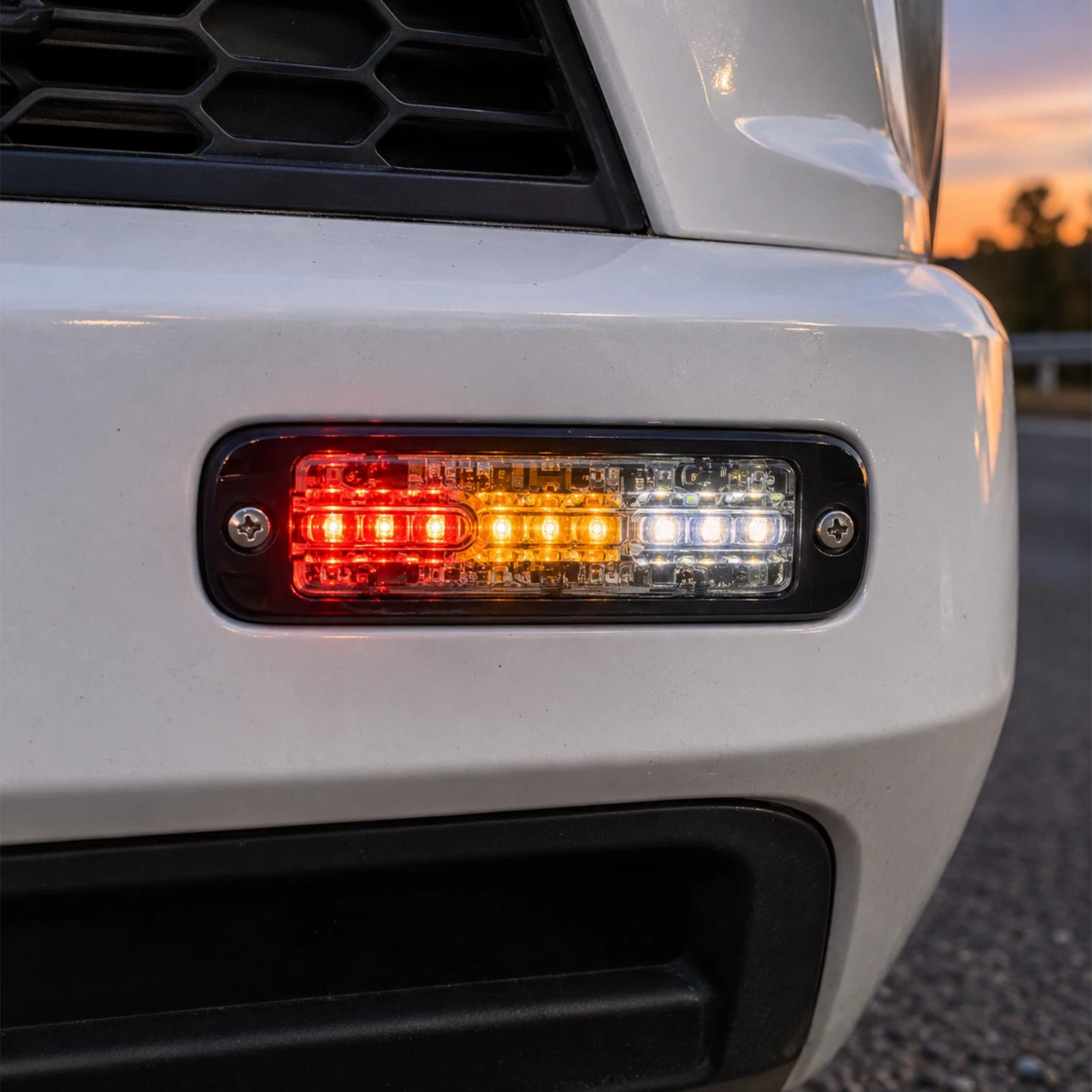

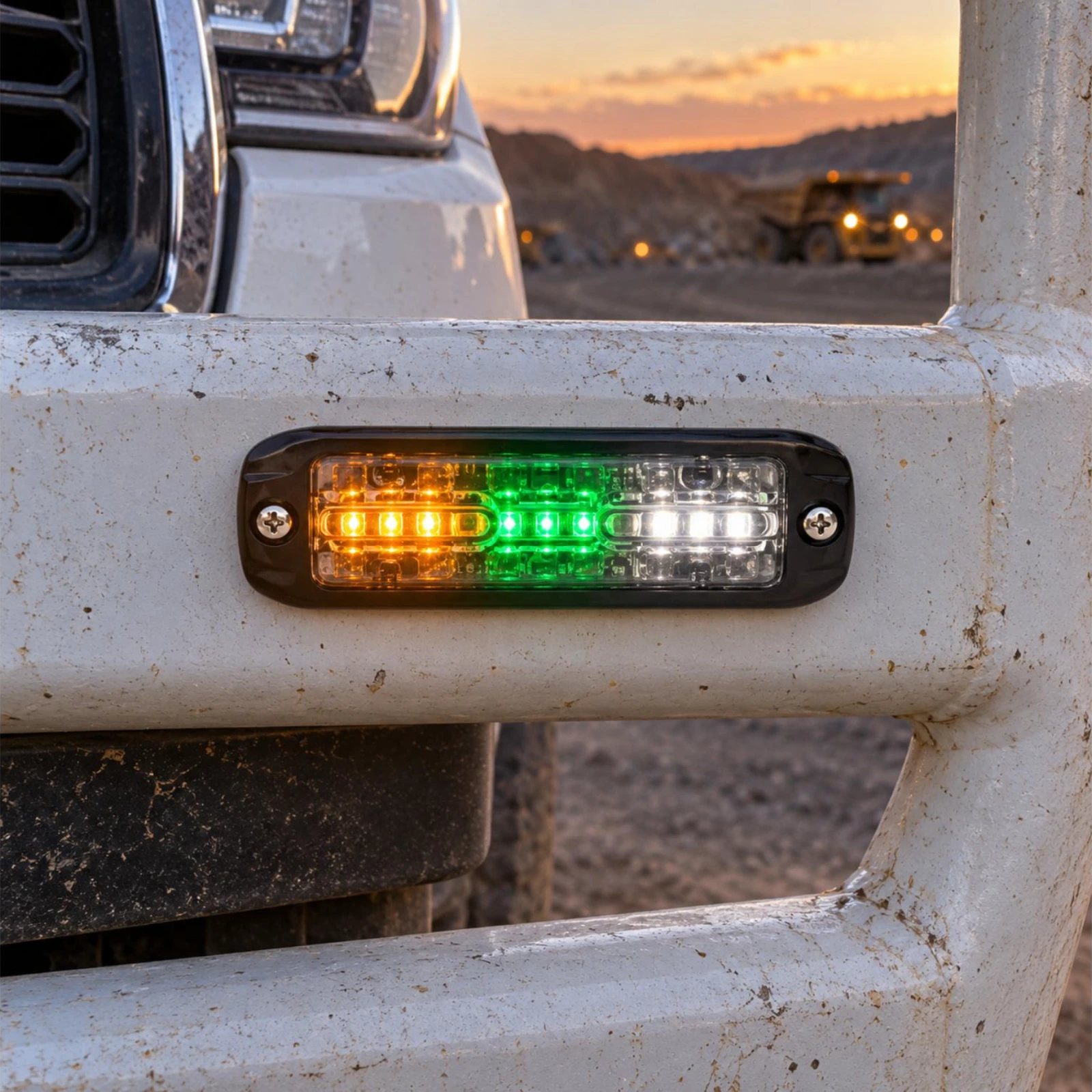

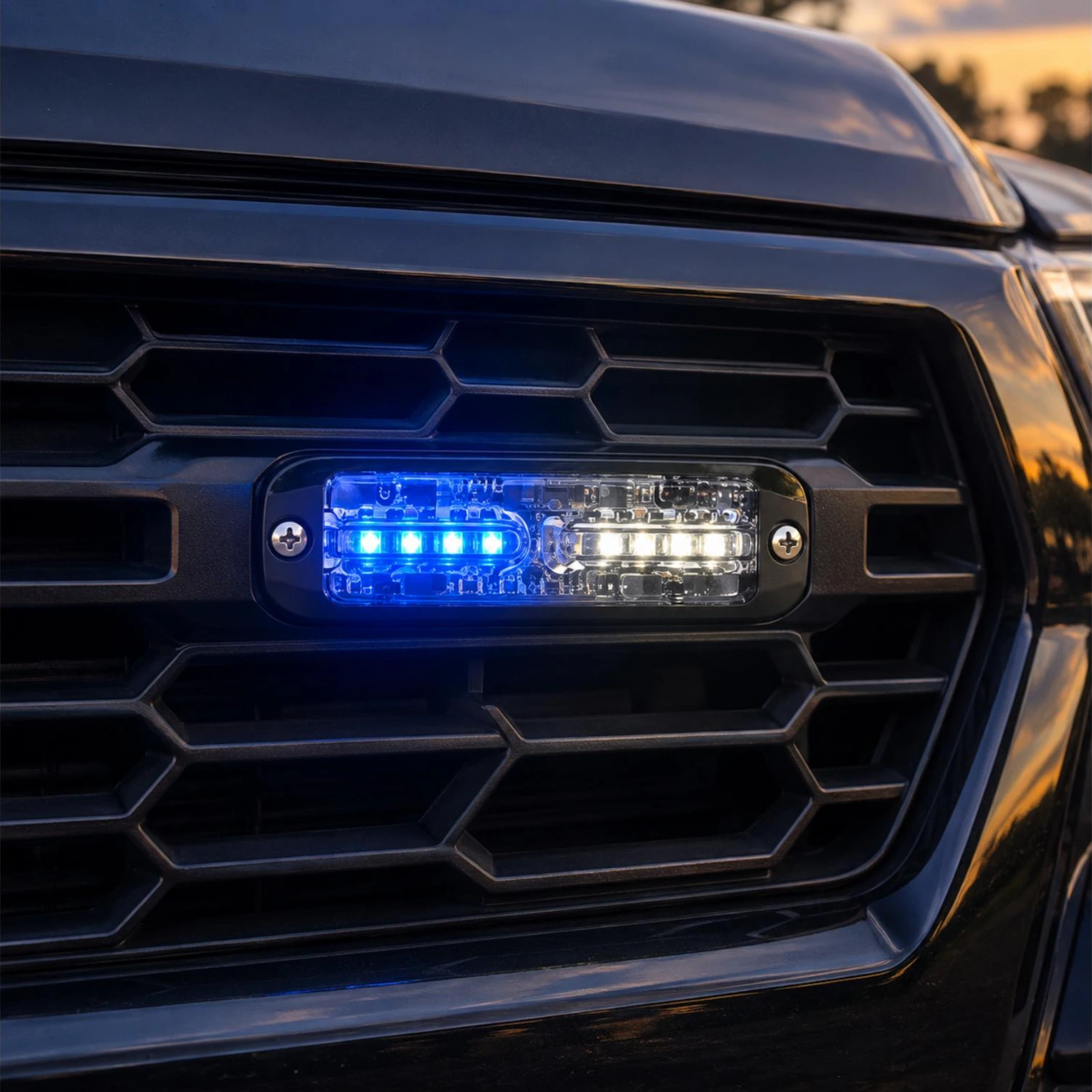

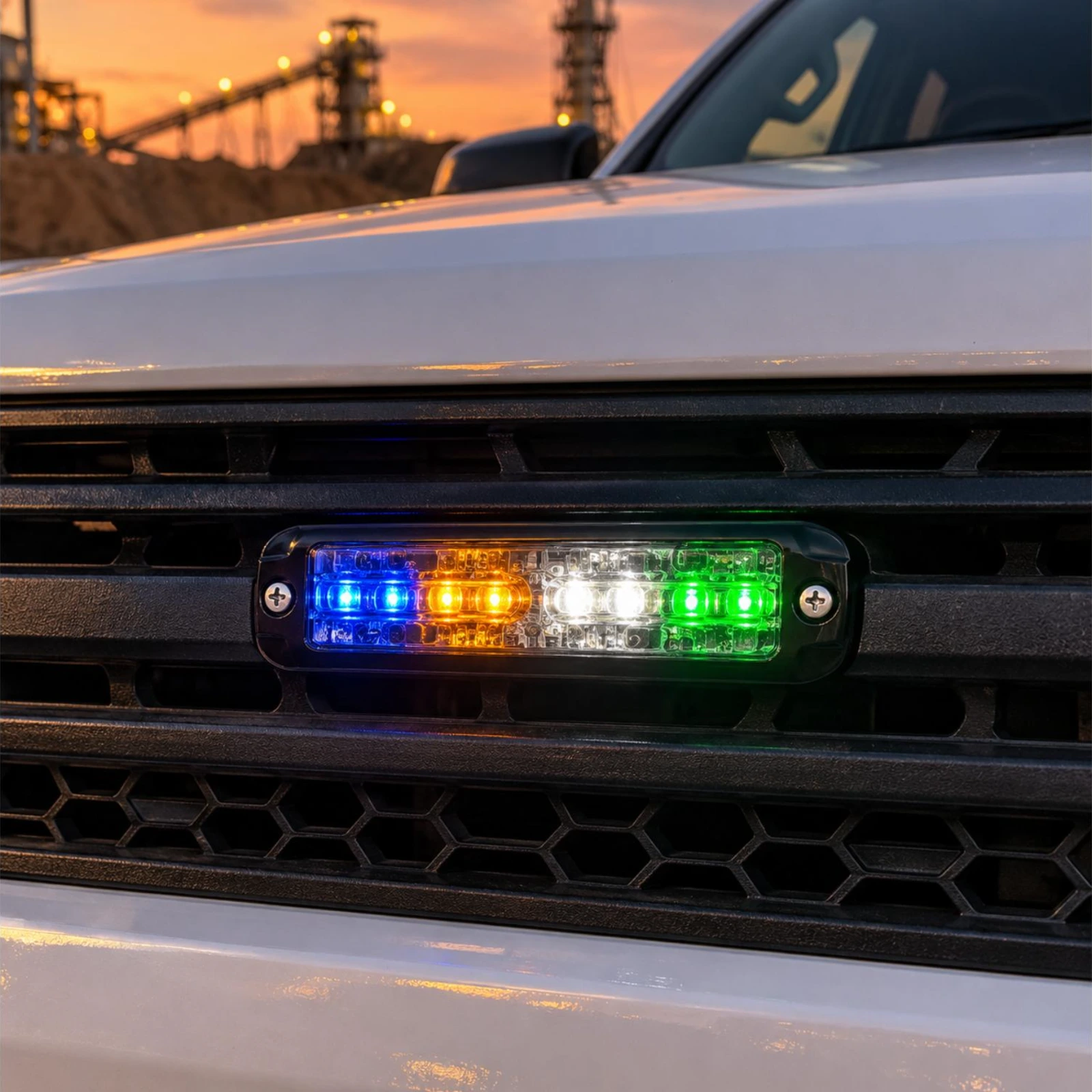

- Part numbers – ED3802AB amber/blue, ED3802AG amber/green, ED3802AR red/amber, ED3802AW amber/white, ED3802BW blue/white, ED3802RW red/white, ED3802AGW amber/green/white, ED3802BAW blue/amber/white, ED3802RAW red/amber/white, ED3802RBA red/blue/amber, ED3802RBW red/blue/white, ED3802BAWG blue/amber/white/green
- Series – ECCO ED3800 Series ultra thin directional LED
- LED colours – Dual (12 LEDs), tri (18 LEDs) or quad (24 LEDs) colour
- Lens – Clear polycarbonate
- Housing – Aluminium
- Input voltage – 12–24 VDC
- Current draw – 0.8–0.9 A @ 12 VDC; 6.4–12.5 W max depending on version
- Flash patterns – Dual-colour up to 69, tri-colour up to 24, quad-colour up to 22, including steady burn
- Synchronisation – Up to 8 units, Phase 1 / Phase 2
- Approvals – SAE J595 Class 1 (amber, blue, red, white; green SAE Class 3 on BAWG); ECE R65 Class 1 and California Title 13 Class B on most dual-colour versions; ECE R10 (EMC), RCM, RoHS
- Ingress protection – IP67, IP69K
- Dimensions – 121 mm L × 36 mm H × 9 mm D (without gasket)
- Mounting – 2-bolt surface mount, 105 mm hole centres
- Wiring – 22 AWG leads, 191 mm: 5 wires (dual), 6 wires (tri), 7 wires (quad)
- Circuit protection – Separate 2 A fuse on each positive feed
- Operating temperature – −30 °C to +50 °C
- Warranty – 5 years
Applications
- Utility, service and roadside assistance vehicles
- Tow trucks, traffic management and construction vehicles

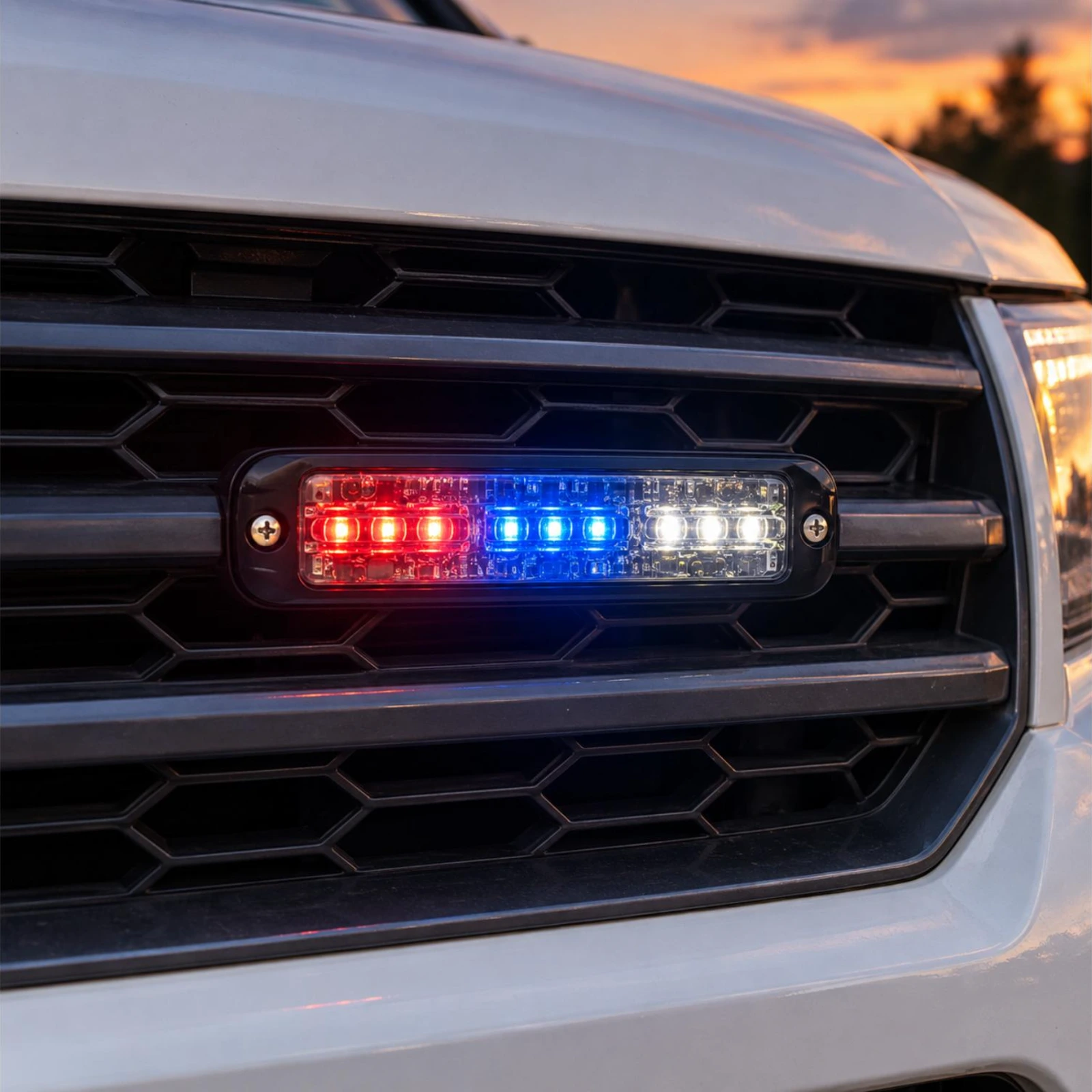

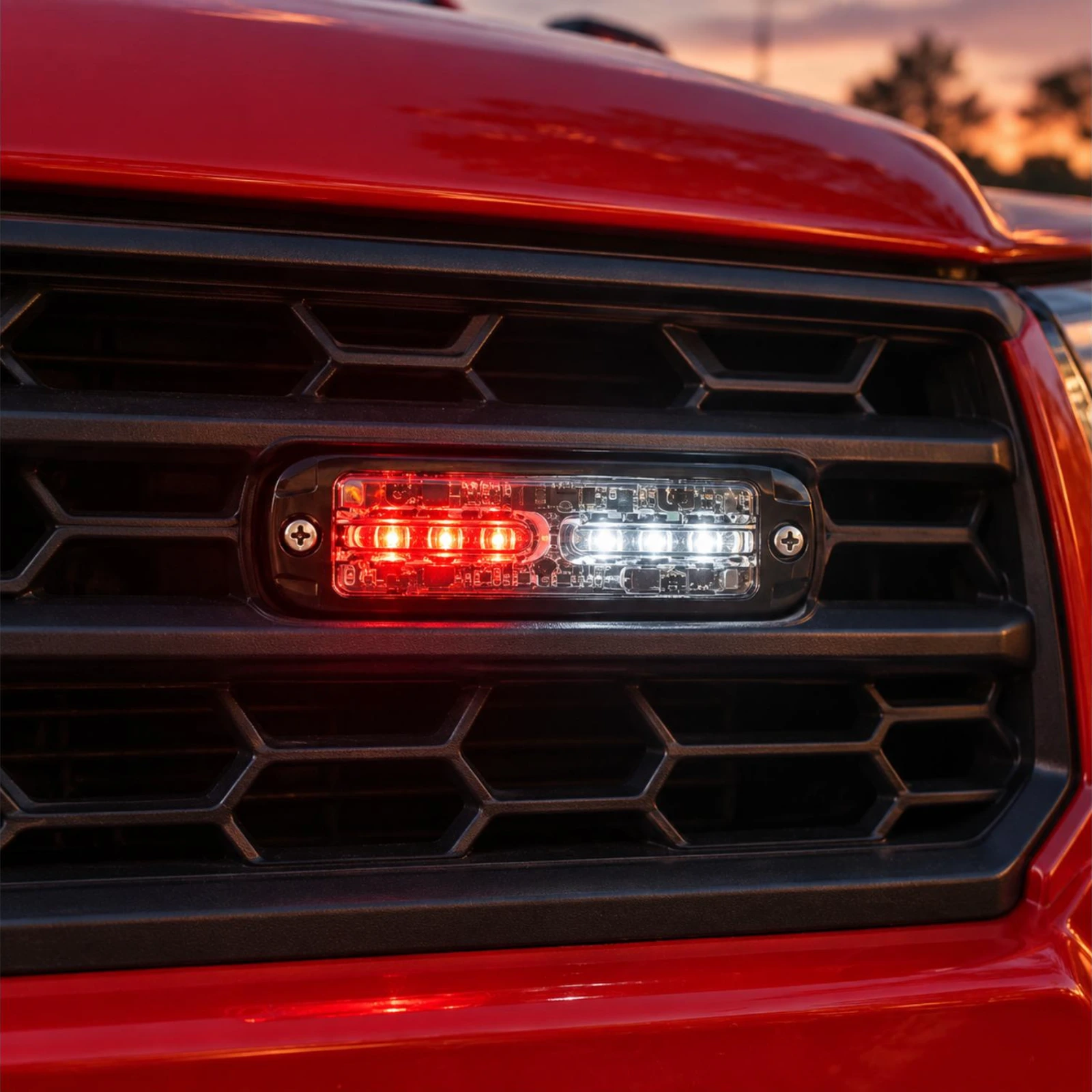

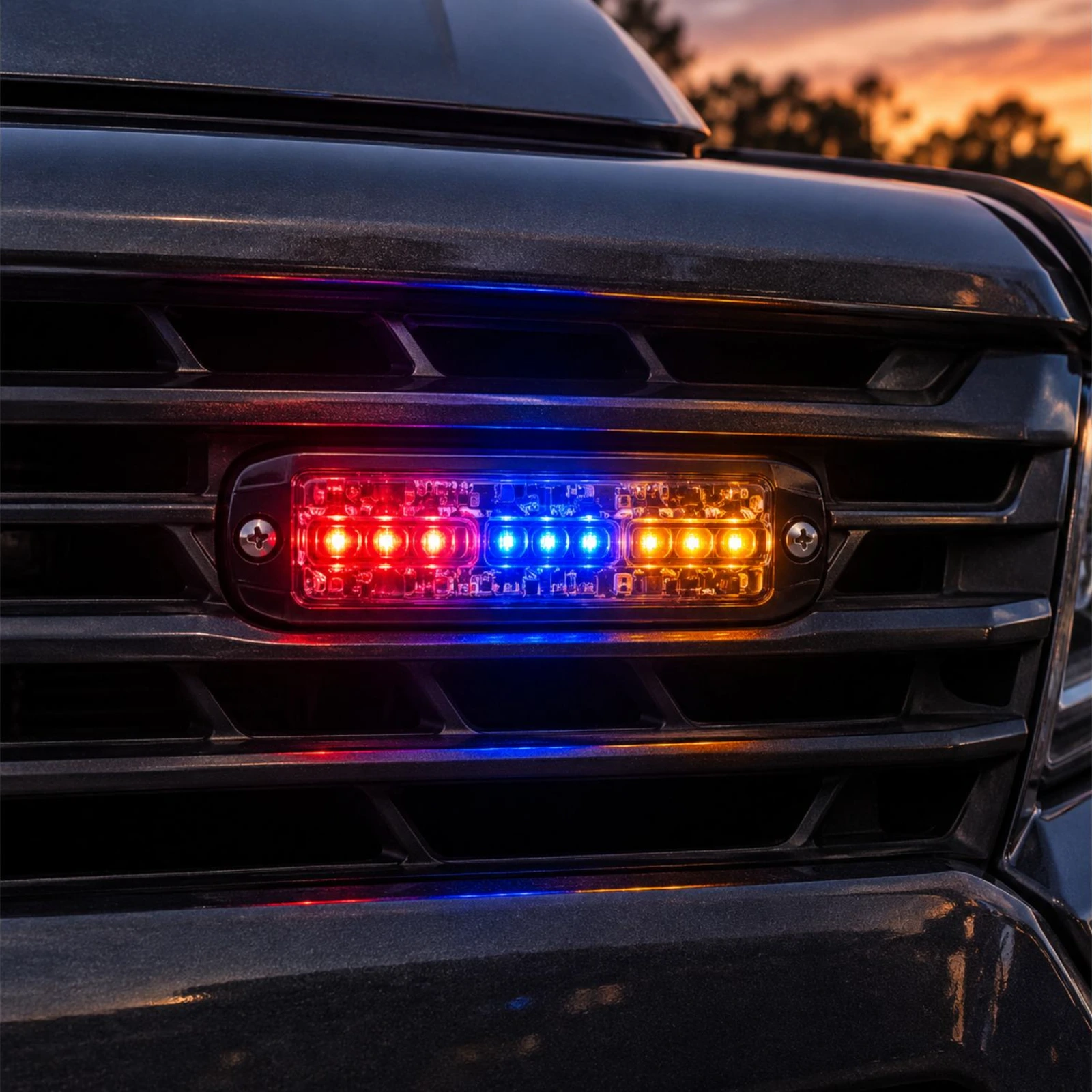

- Emergency, security and incident-response vehicles (red/blue where permitted)
- Mining, quarry and agricultural vehicles and mobile plant
- Fleet vehicles needing several warning colours from one light
