Description

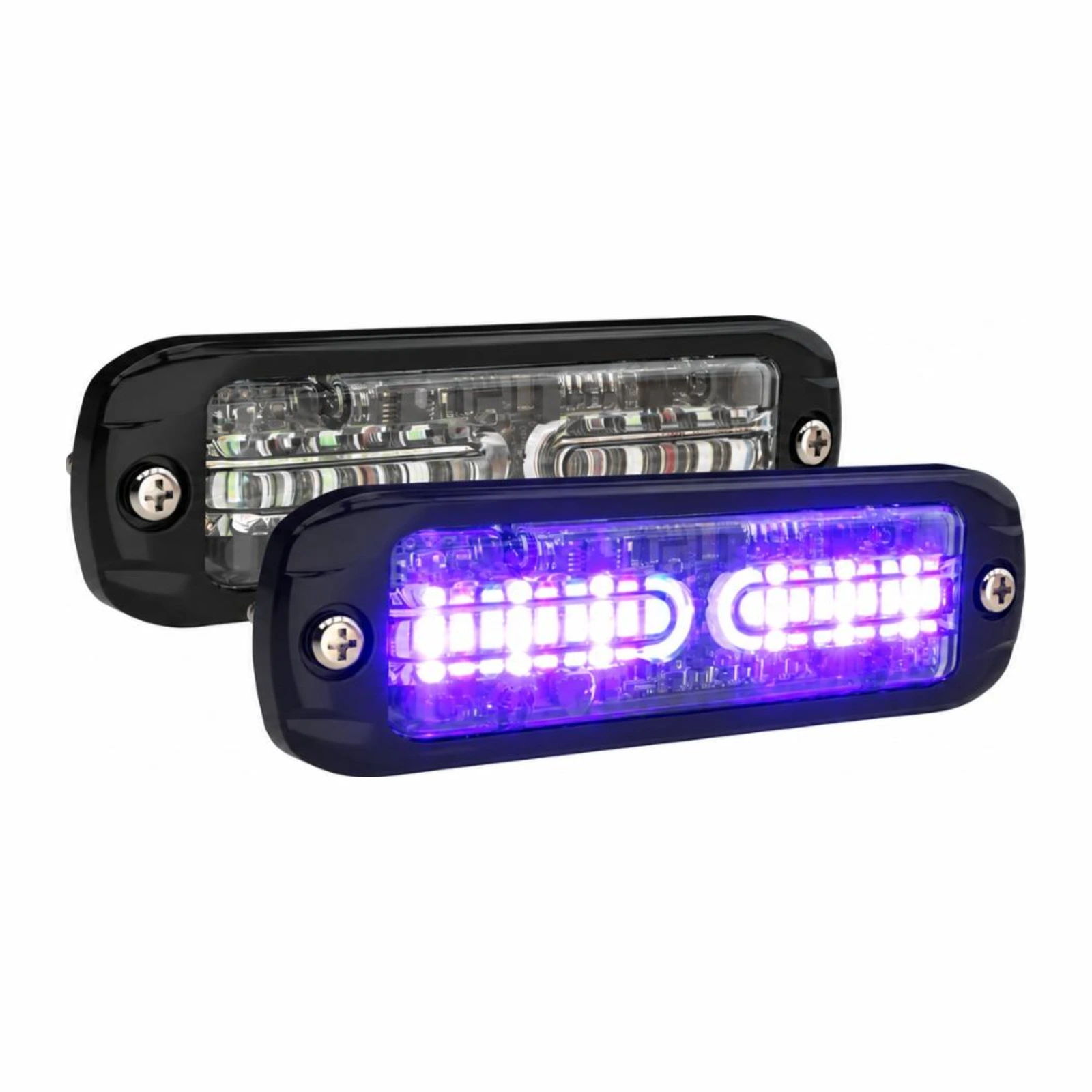

The ECCO ED3802 VIZ is an ultra-thin LED directional warning light from ECCO’s ED3800 Series that adds HINVII illumination to the warning colours. HINVII is a special light colour that makes retro-reflective hi-vis clothing glow, so workers on foot around the vehicle stand out clearly, while the light still works as a normal amber (or amber plus blue, green or white) directional warning light.
The 9 mm-deep housing fits on grilles, bumpers, tailgates, toolboxes, cab panels and headboards where a bulkier light would not. It runs on 12–24 VDC, offers up to 69 flash patterns (amber + HINVII) or 24 patterns (tri-colour versions), and is rated for −40 °C to +65 °C. Amber is SAE J595 Class 1 and California Title 13 Class B; blue and white are also SAE J595 Class 1 on the ABH and AWH versions.
Up to eight units can be linked on the sync wire to flash simultaneously or alternate in Phase 1 and Phase 2, so the VIZ can be combined with other ED3800 Series lights. The aluminium housing is sealed to IP67 and IP69K for high-pressure washdown, and ECCO backs it with a 5-year warranty.
Key Benefits
- HINVII illumination makes hi-vis clothing glow for better pedestrian visibility

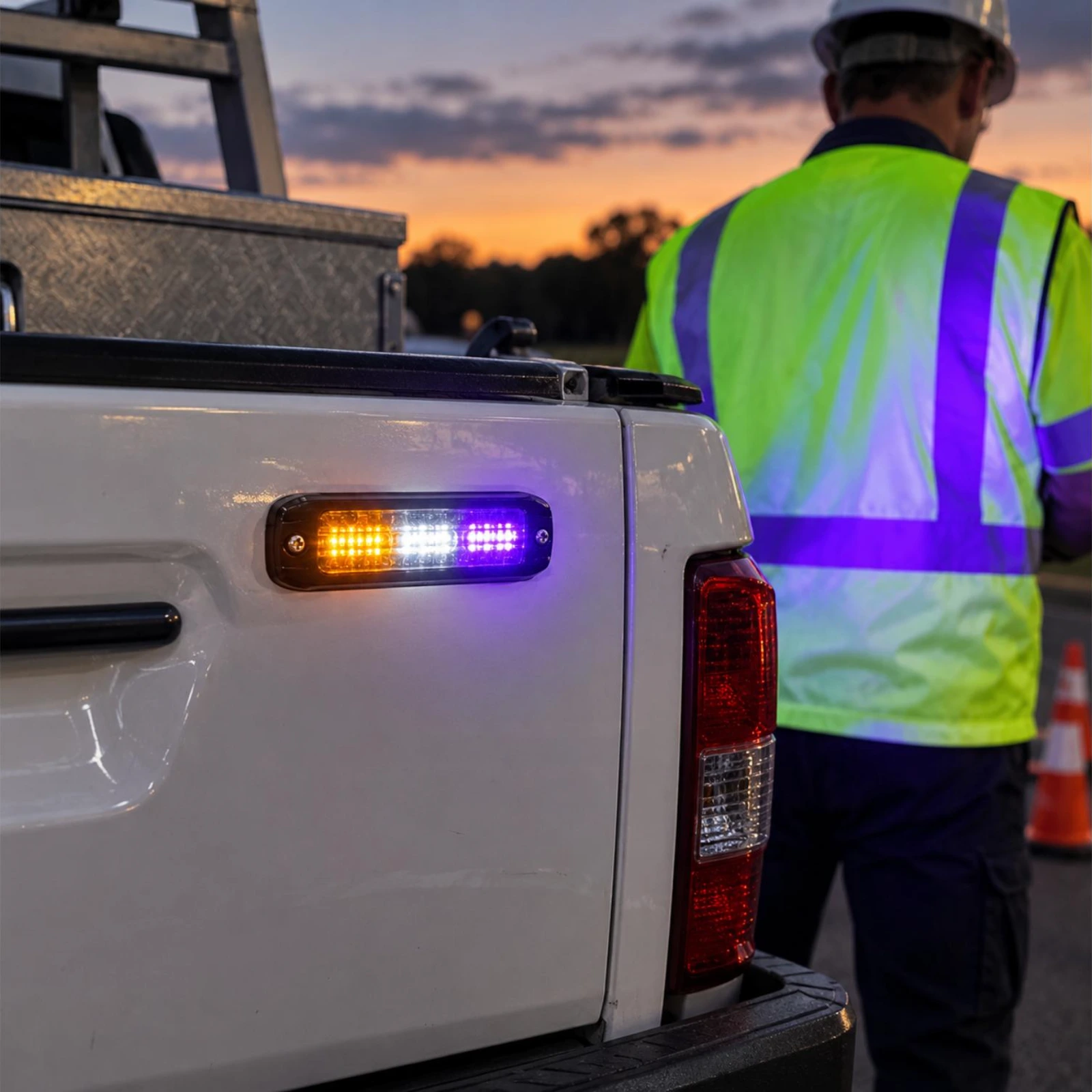

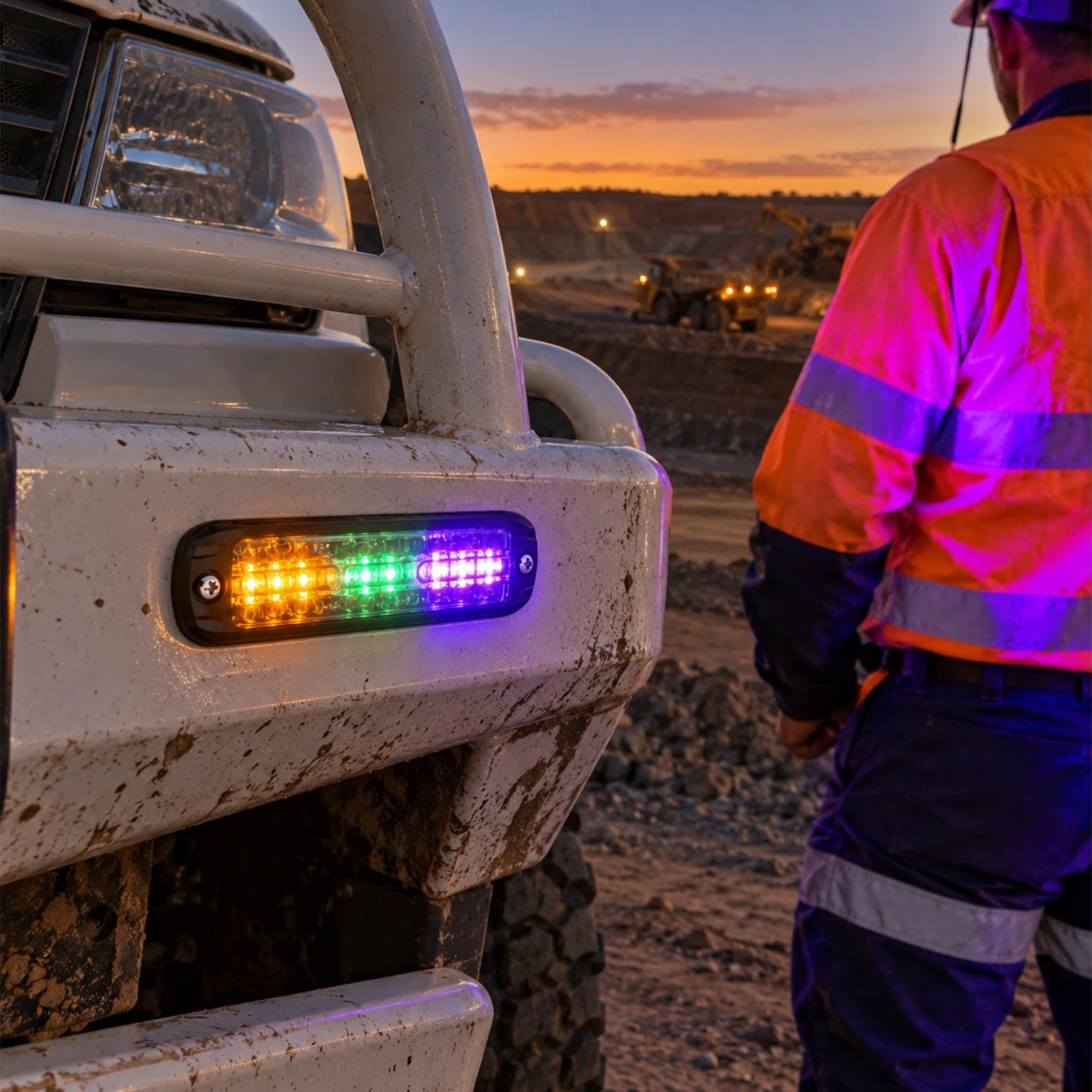

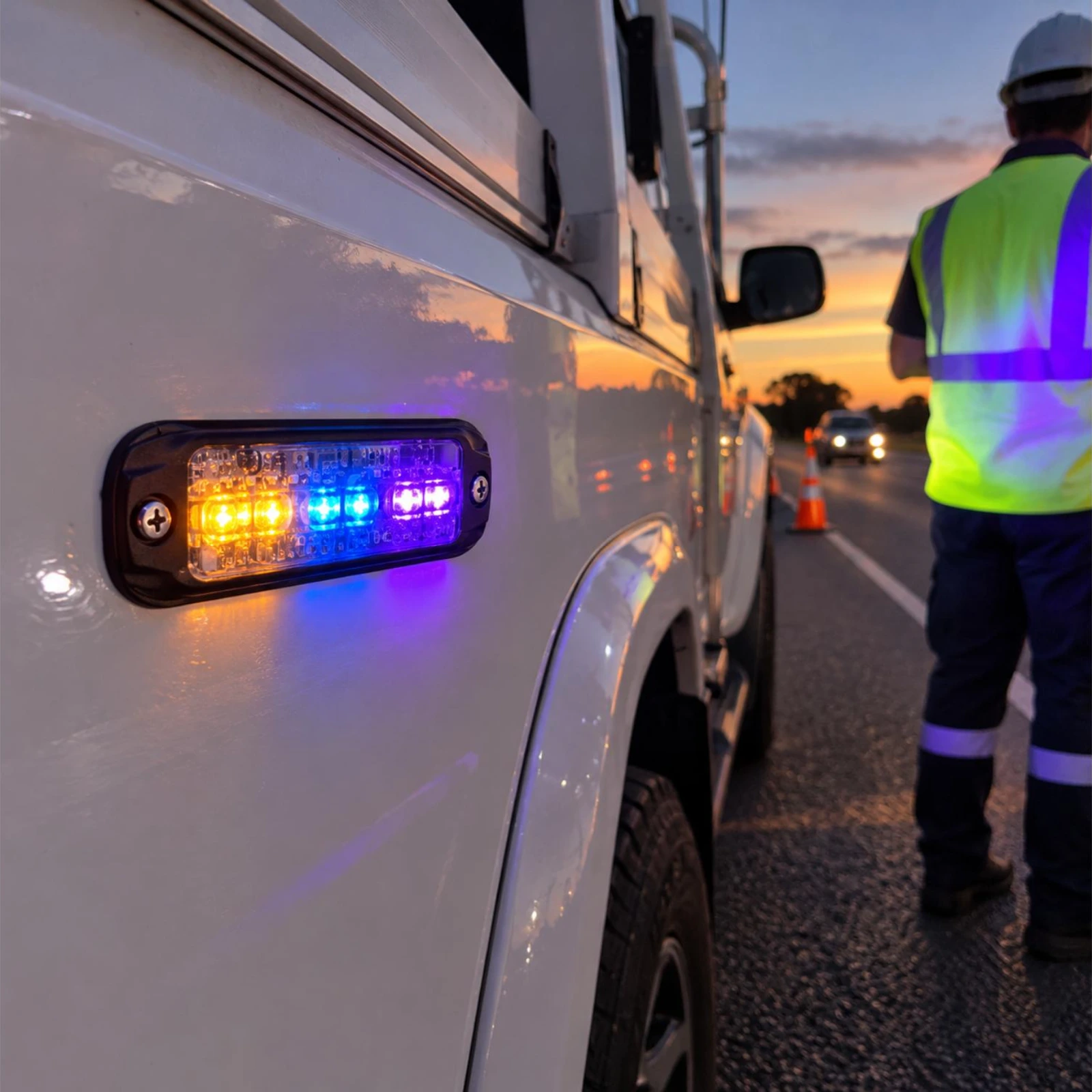

- Four versions: amber, amber/blue, amber/green and amber/white, each with HINVII
- Ultra-low 9 mm profile mounts almost anywhere with two screws
- Up to 69 flash patterns plus steady burn
- Synchronises with up to 8 units
- Wide −40 °C to +65 °C operating range
- IP67 and IP69K sealed aluminium housing
- Backed by ECCO’s 5-year warranty
Specifications
- Part numbers – ED3802AH amber, ED3802ABH amber/blue, ED3802AGH amber/green, ED3802AWH amber/white (all with HINVII illumination)
- Series – ECCO ED3800 Series VIZ ultra thin directional LED
- Input voltage – 12–24 VDC
- Current draw – 0.8–1.0 A @ 12 VDC; 11–12.8 W max depending on version
- Flash patterns – Up to 69 (AH) or 24 (ABH, AGH, AWH), including steady burn
- Synchronisation – Up to 8 units, Phase 1 / Phase 2
- Approvals – SAE J595 Class 1 (amber; also blue on ABH and white on AWH; green SAE Class 3 on AGH), California Title 13 Class B (amber), ECE R10 (EMC), CE, UKCA, RoHS
- Ingress protection – IP67, IP69K
- Dimensions – 121 mm L × 36 mm H × 9 mm D (without gasket)
- Mounting – 2-bolt surface mount, 105 mm hole centres
- Wiring – 22 AWG leads, 191 mm: 5 wires (AH), 6 wires (ABH, AGH, AWH)
- Operating temperature – −40 °C to +65 °C
- Warranty – 5 years
Applications
- Mining, quarry and construction vehicles working around people on foot
- Forklifts, yard and warehouse vehicles
- Traffic management, utility and roadside vehicles
- Waste, municipal and fleet vehicles
