Description
Ionnic’s BMS-18 and LS11004 lockouts let a metal fixed handle battery master switch be padlocked in the OFF position for lockout/tagout. They suit the Ionnic BMS-17 and all switches in Ionnic’s Fixed Handle – Metal range, which includes the Cole Hersee 75903, 75907, 75910B and 75912B.

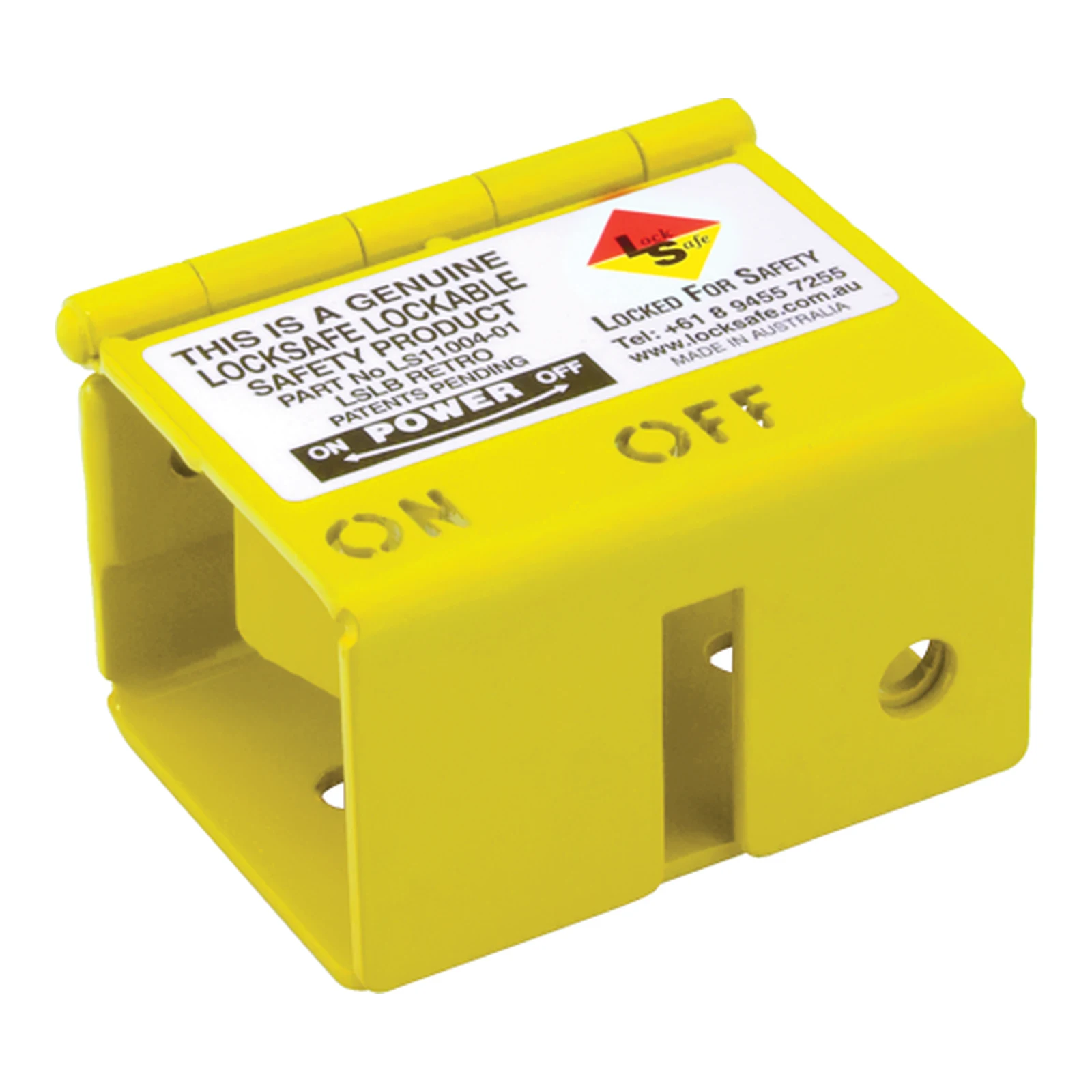

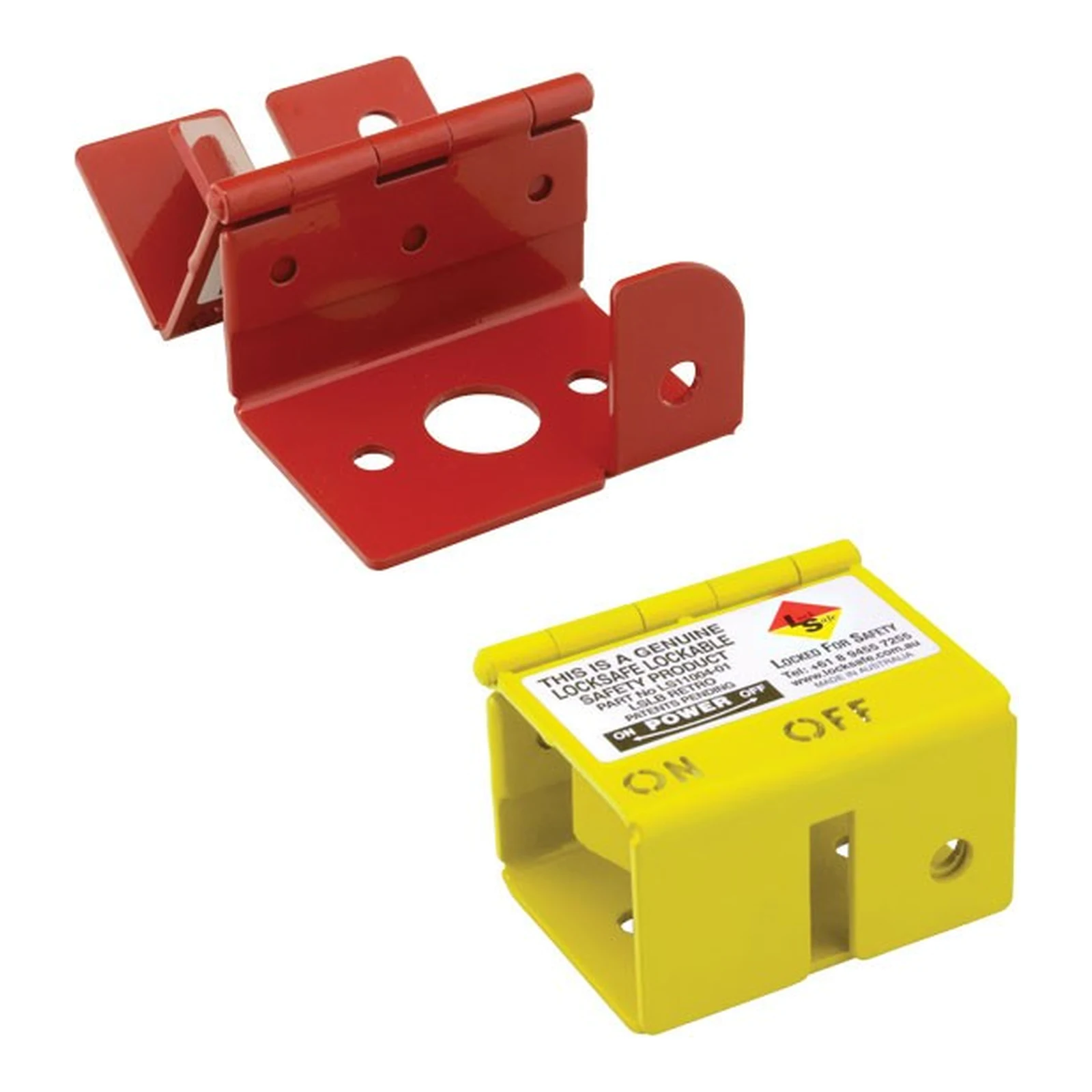

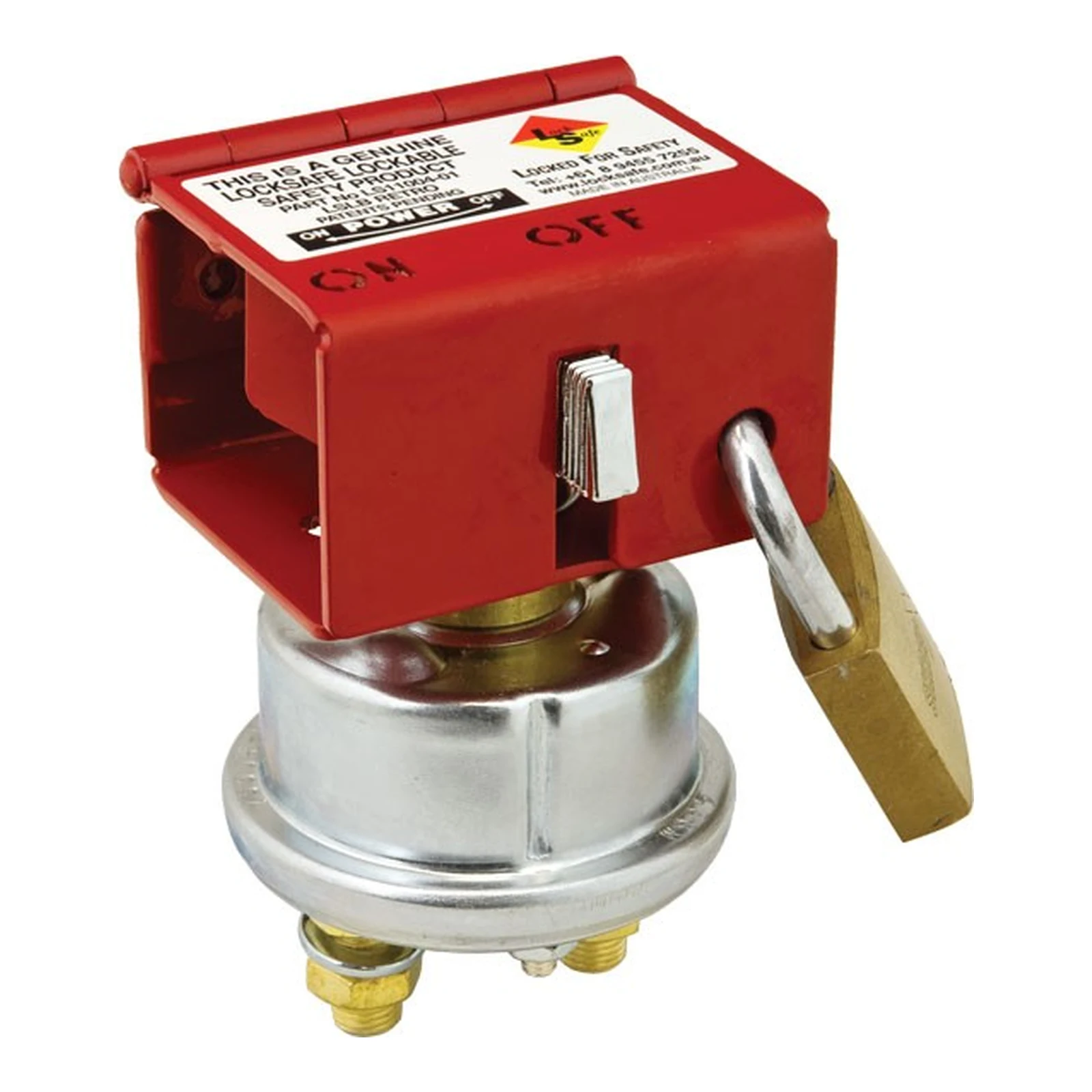

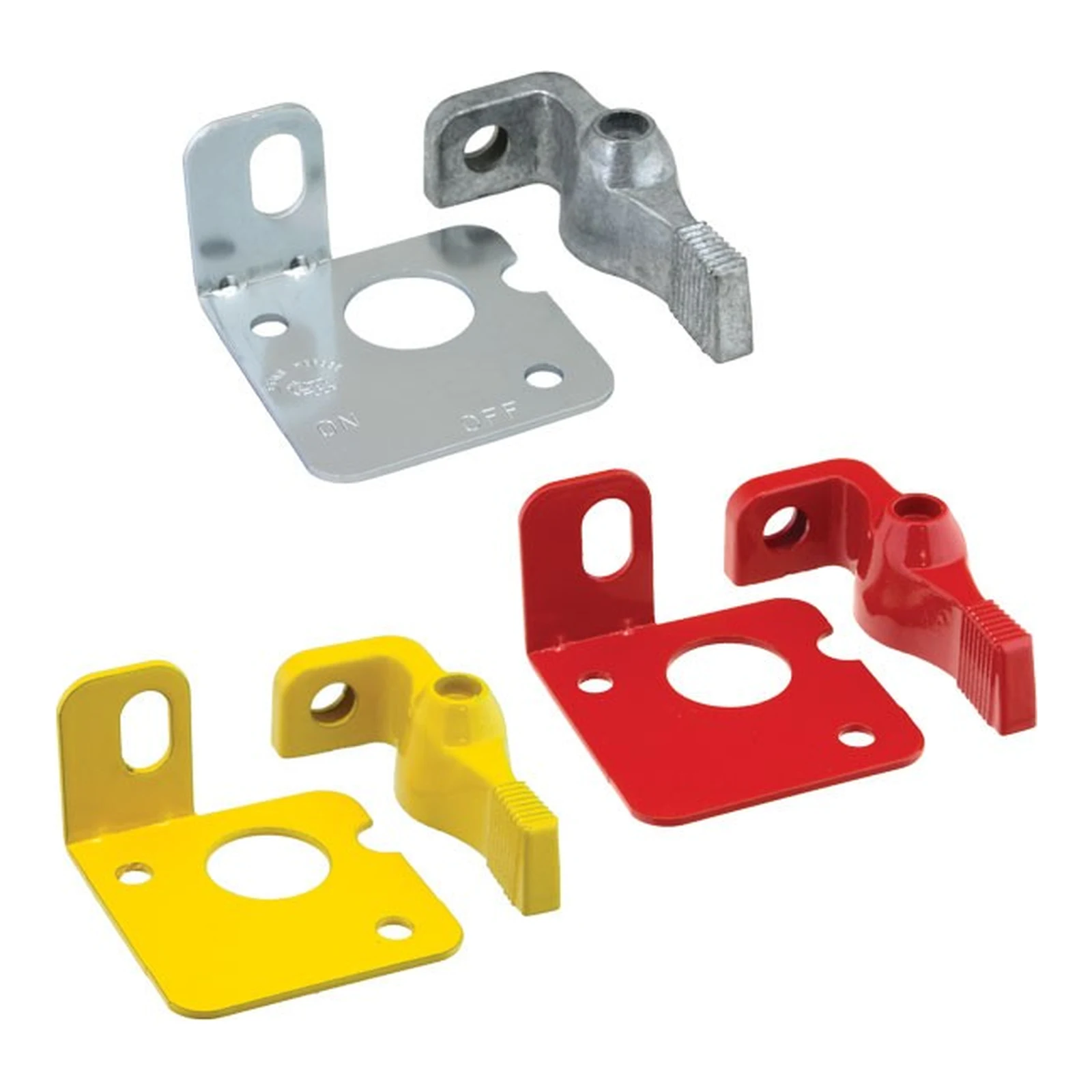

The BMS-18 is a two-piece metal lockout available plain, or powder-coated red for battery isolation and yellow for starter isolation. The LS11004 is a hinged stainless steel cover, powder-coated red (LS11004-01) or yellow (LS11004-02), that encloses the handle completely when locked and carries a warning label.
Use red on the battery isolator and yellow on the starter isolator so the purpose of each switch is obvious at a glance. Padlocks are not supplied.
Key Benefits
- Padlockable lockout for metal fixed handle switches
- Two-piece metal or hinged stainless steel
- Red (battery) and yellow (starter) colour coding
- Suits BMS-17 and Cole Hersee 75903, 75907, 75910B and 75912B
Specifications
- BMS-18 – Lockout, 2 piece metal
- BMS-18R / BMS-18Y – Lockout, 2 piece metal, powder-coated red / yellow
- LS11004-01 / LS11004-02 – Lockout, hinged stainless steel, powder-coated red / yellow
- Suits – All Fixed Handle – Metal battery master switches
- Padlock – Not supplied
Applications
- Lockout/tagout on mine-site vehicles
- Battery and starter isolation points
- Universal lockout kit replacements
