Description
Ionnic’s L handle lockout brackets let the BMS-05 and BMS-12 removable L handle battery master switches be padlocked for lockout/tagout. Each bracket fits with the switch and accepts a padlock to hold it in the OFF position.
The BMS-2 suits the single-pole BMS-05 and the BMS-1 suits the double-pole BMS-12. The BMS-4 and the stainless steel LS11003 suit both switches. Every bracket comes powder-coated red for battery isolation or yellow for starter isolation.
Select the bracket and colour above. Lockout brackets are supplied without padlocks or mounting hardware.
Key Benefits
- Padlock lockout for BMS-05 and BMS-12
- Red (battery) and yellow (starter) colour coding
- Powder-coated metal or stainless steel
- Brackets to suit single-pole, double-pole or both
Specifications

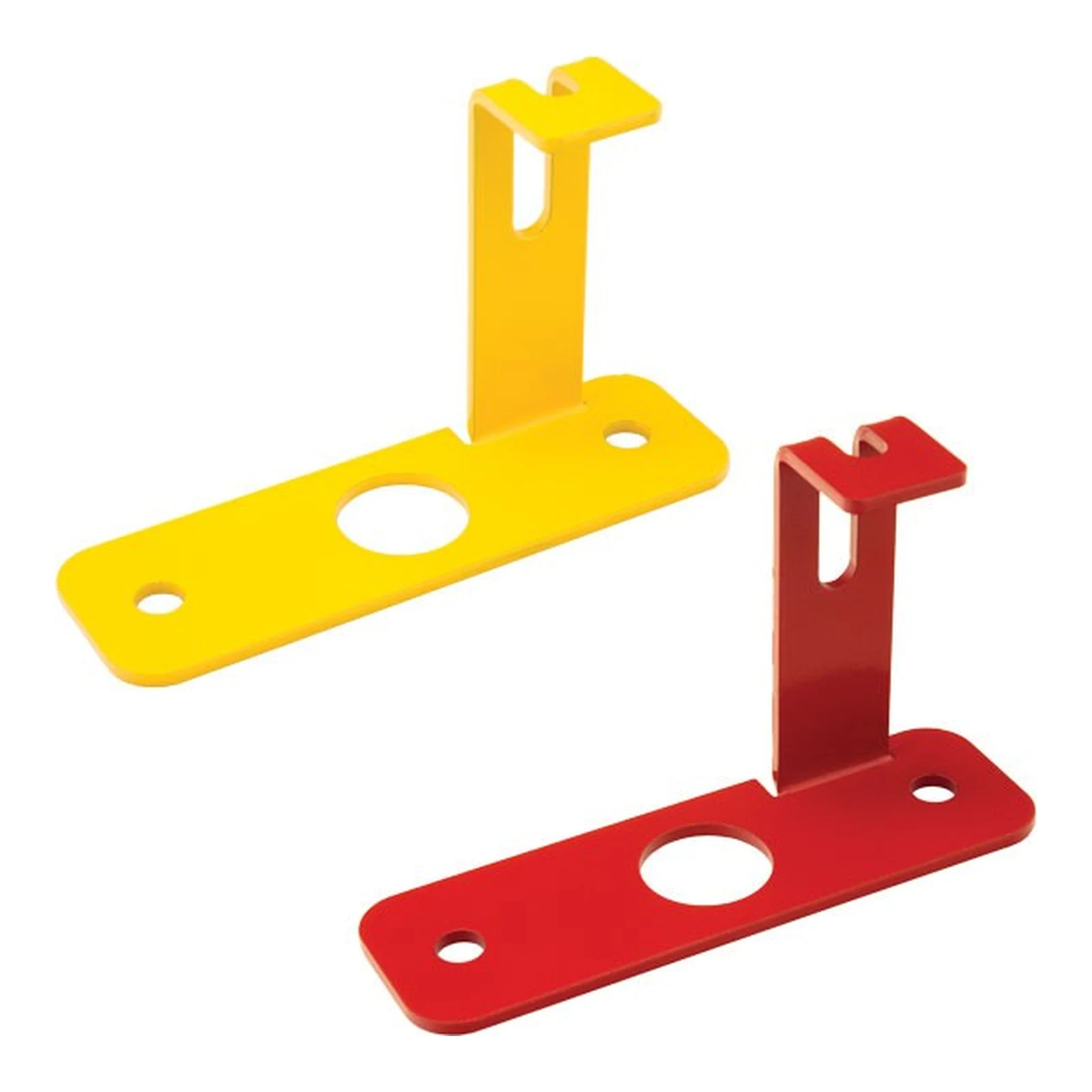

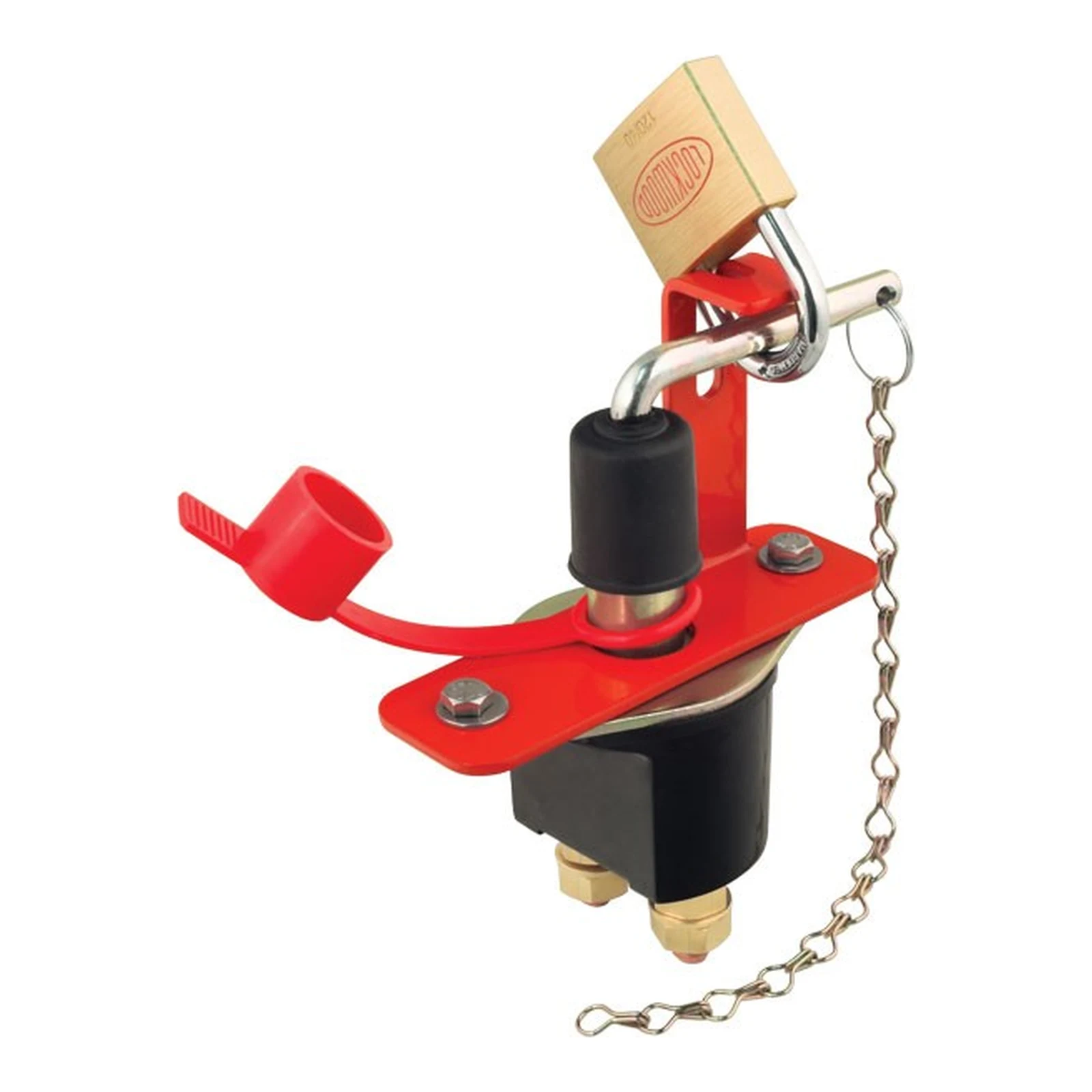

- BMS-2R / BMS-2Y – Metal, powder-coated red / yellow; suits BMS-05

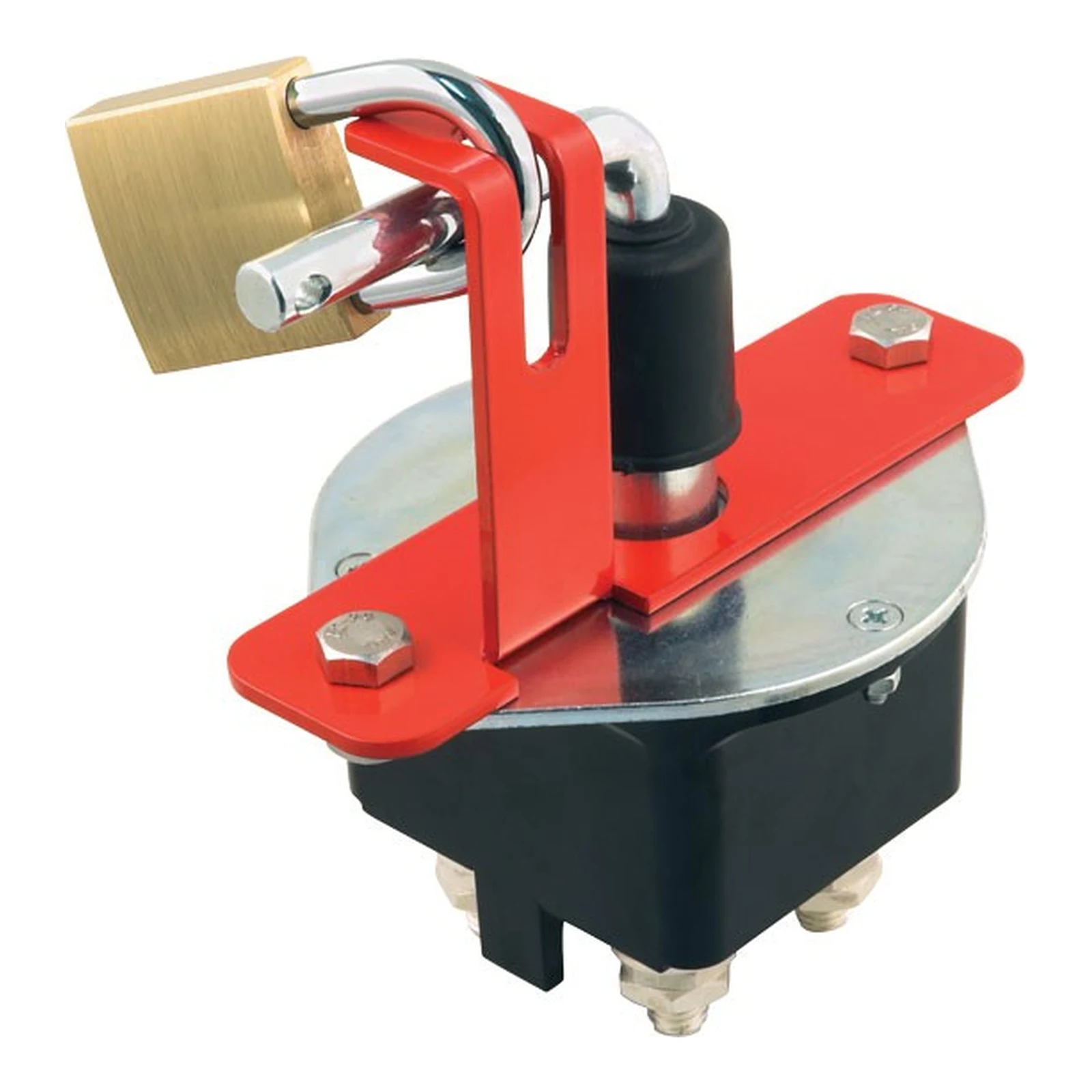

- BMS-1R / BMS-1Y – Metal, powder-coated red / yellow; suits BMS-12

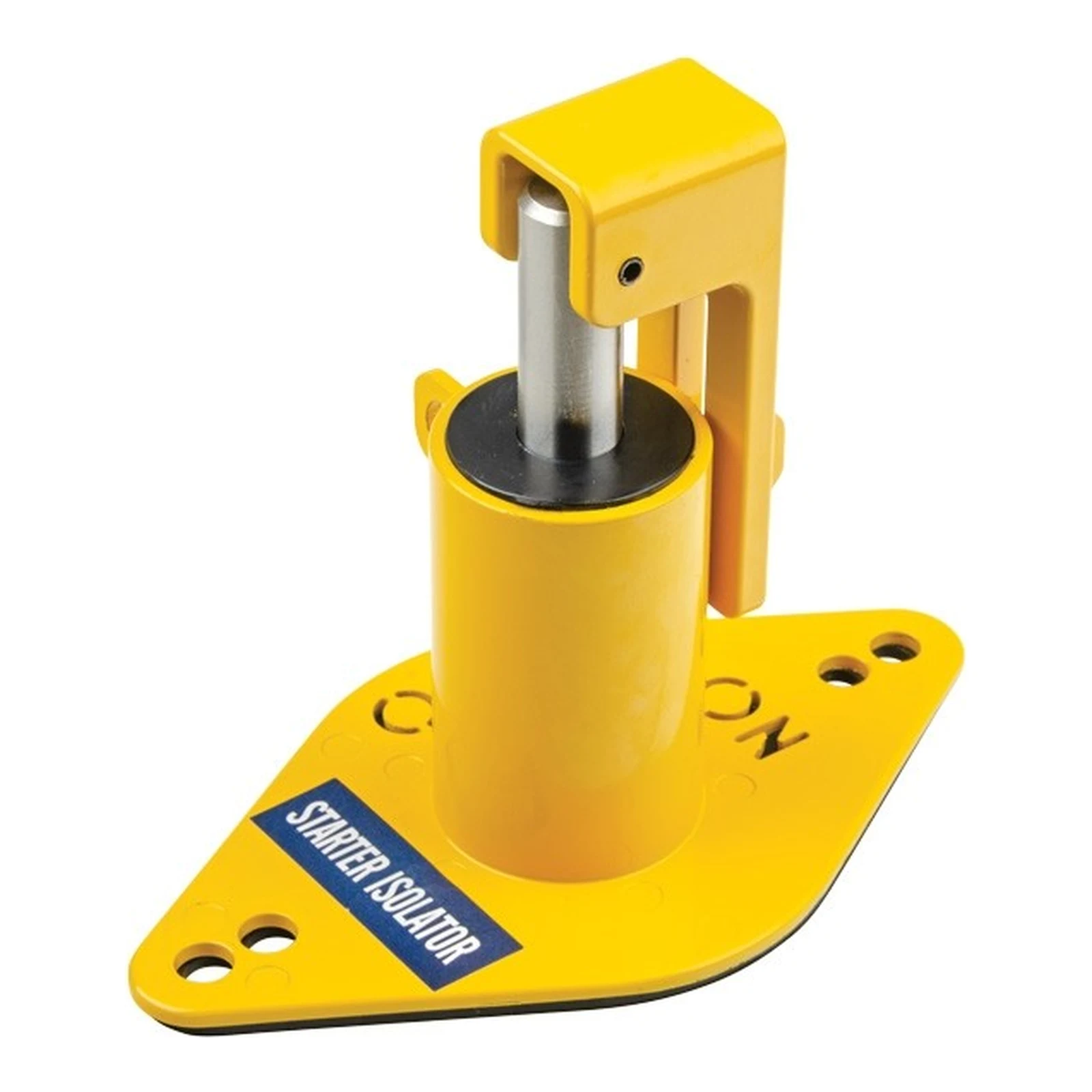

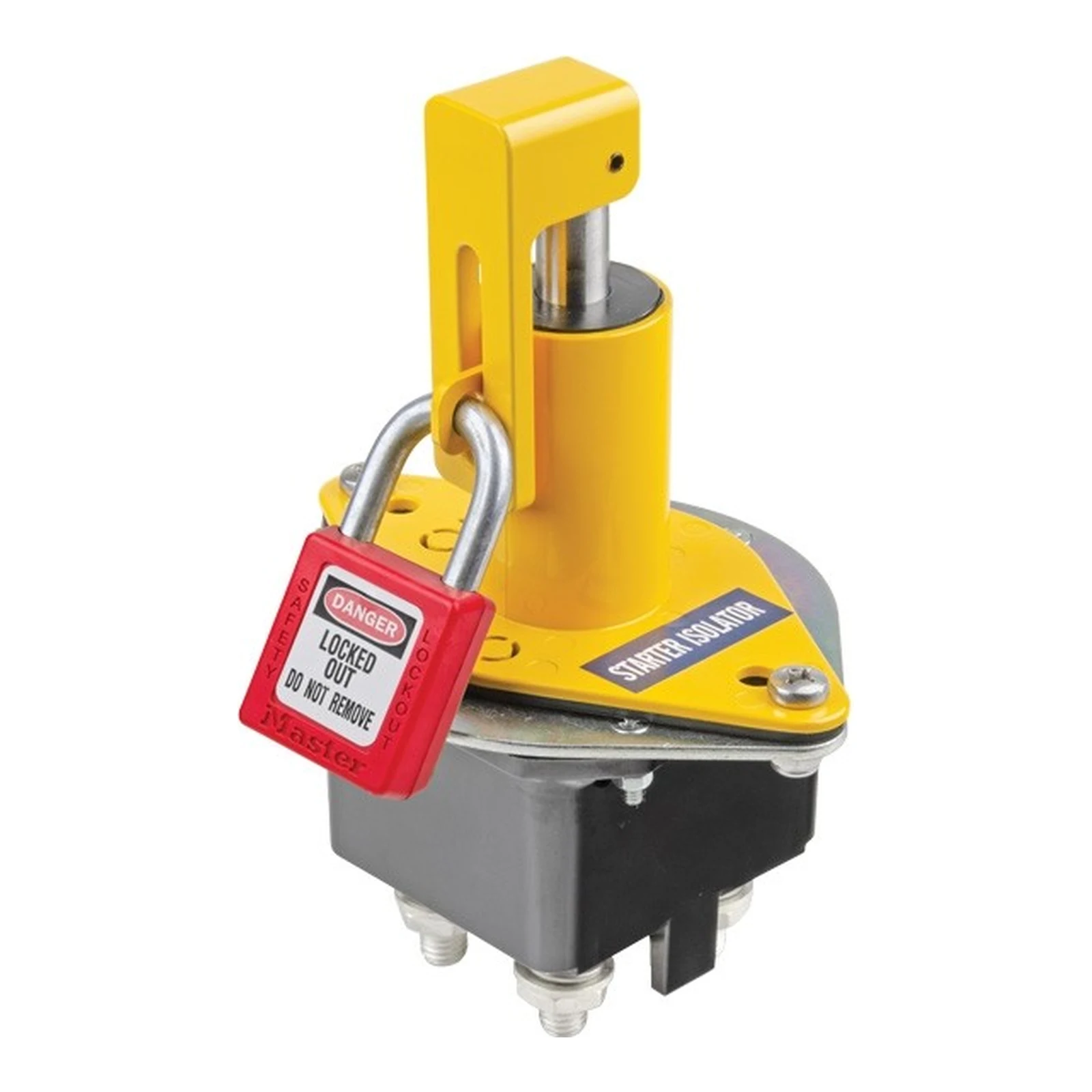

- BMS-4R / BMS-4Y – Metal, powder-coated red / yellow; suits BMS-05, BMS-12

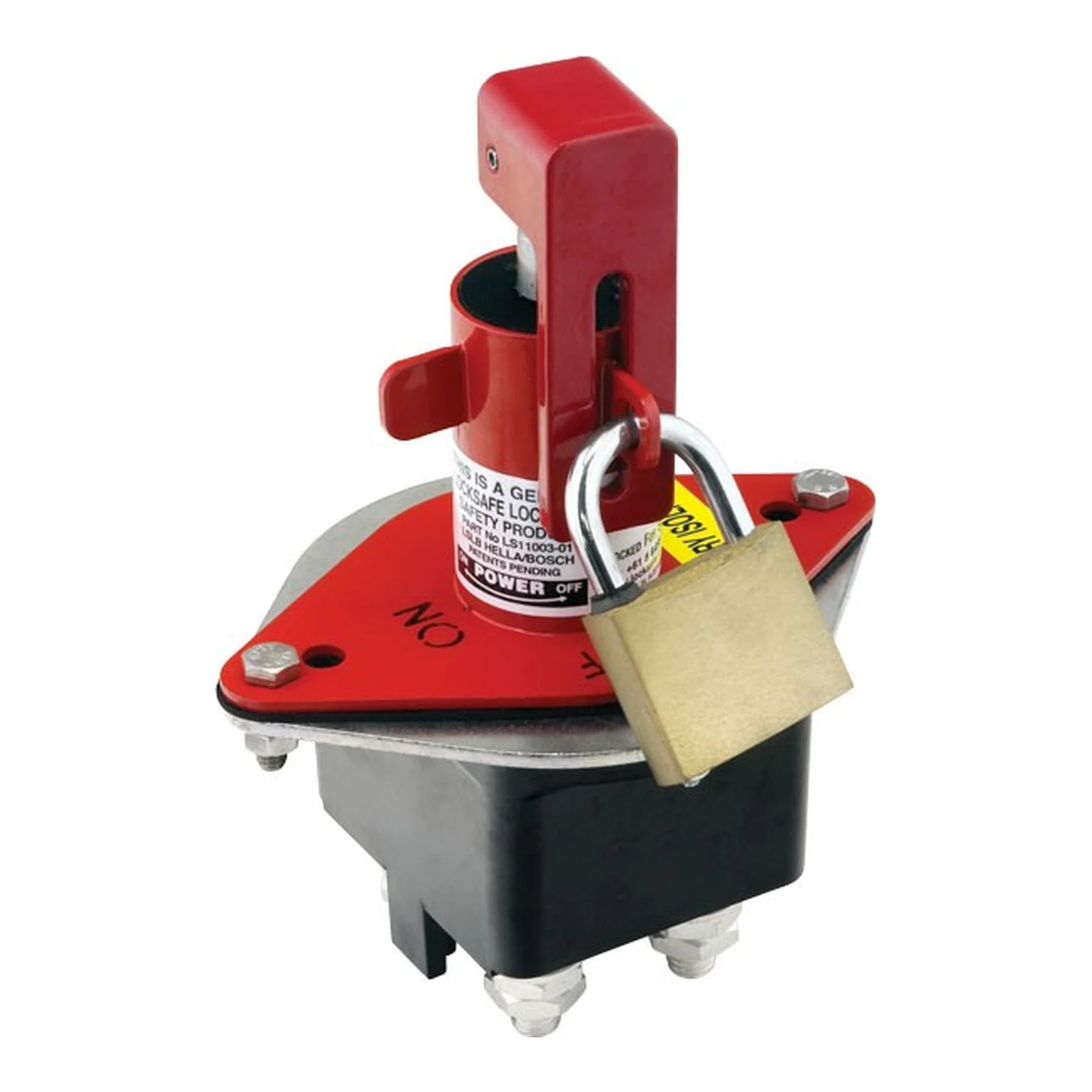

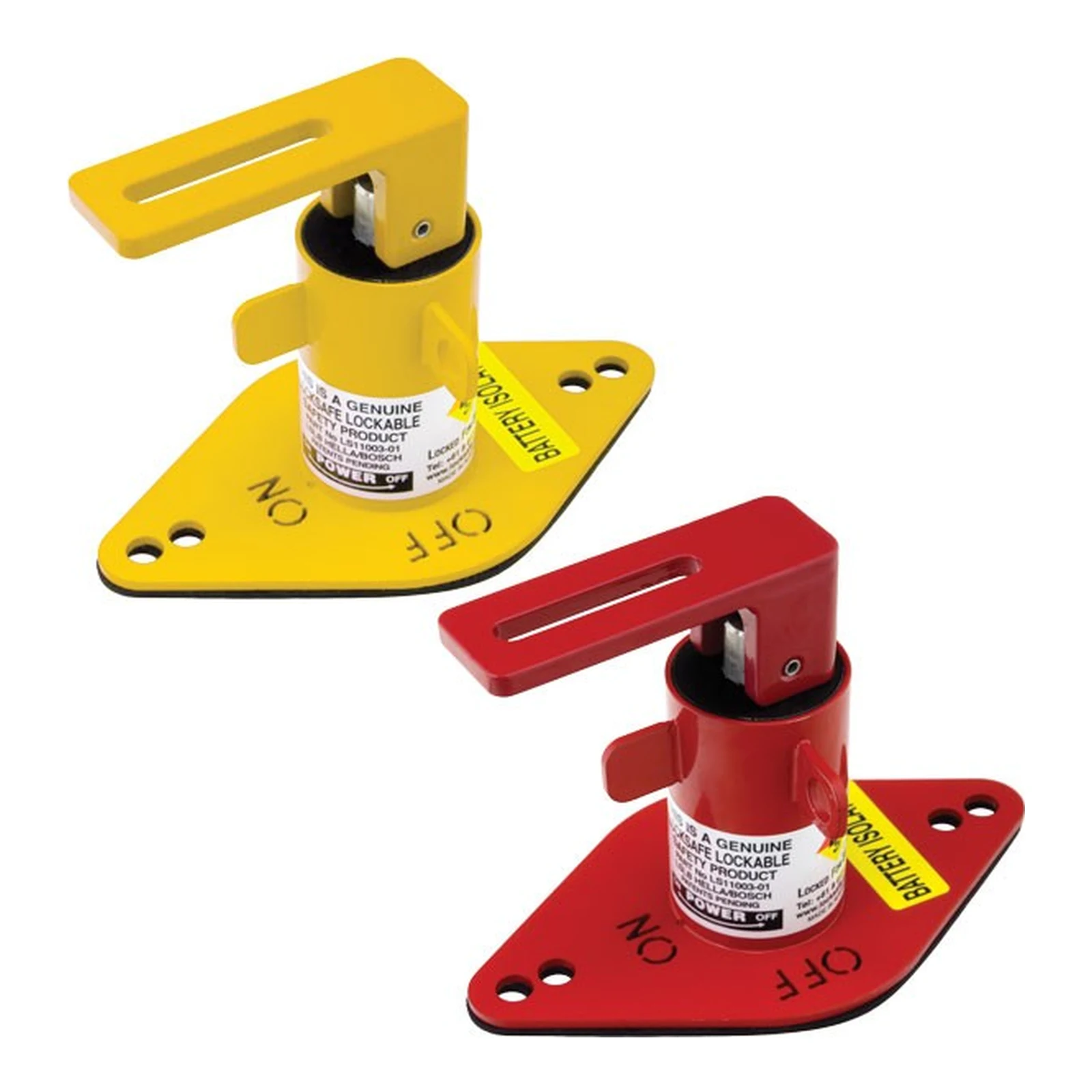

- LS11003-01 / LS11003-02 – Stainless steel, powder-coated red / yellow; suits BMS-05, BMS-12
- Supplied without – Padlock and mounting hardware
Applications
- Mine-site battery and starter lockout
- Fleet and plant lockout/tagout
