Description

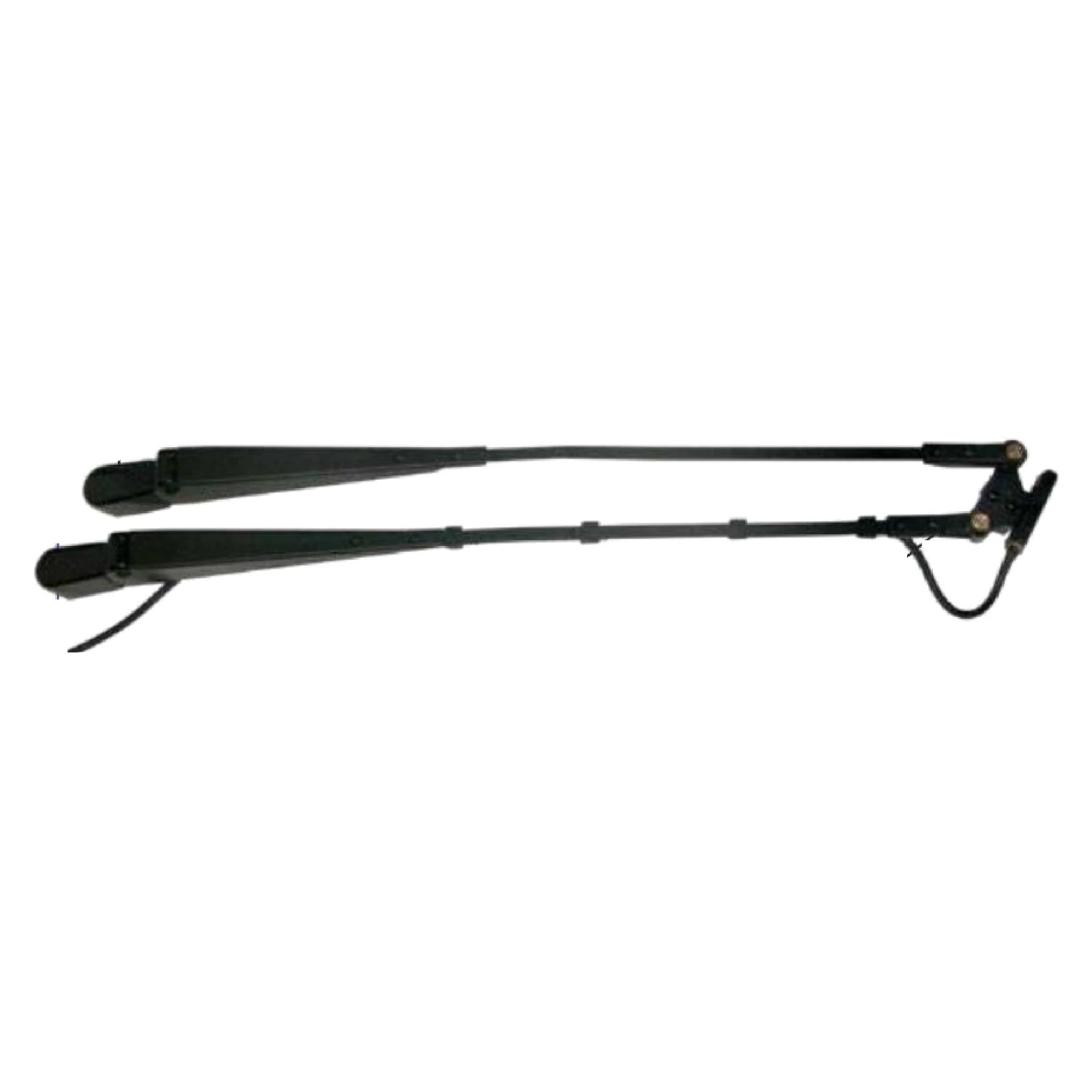

The Tru Vision ZD1530-P-450 is a 450 mm pantograph (parallel action) wet wiper arm with M8-DIN12 pivot drives at 60 mm centres and a 14 mm blade saddle. Suits Tru Vision ZD1530 series wiper motors.
A pantograph arm keeps the blade upright as it sweeps, clearing a larger square area of glass. It is the standard choice for split screens on buses and coaches. The ZD1230JET-T travel jet sprays washer fluid right where the blade is working. Check your existing part number, or browse our bus wiper systems and contact us to confirm the right part for your vehicle.
Key Benefits
- 450 mm pantograph wet arm
- M8-DIN12 pivot drives, 60 mm centres
- 14 mm blade saddle
- Built-in ZD1230JET-T travel jet
Specifications
- Brand – Tru Vision
- Part number – ZD1530-P-450
- Type – Pantograph wet wiper arm
- Arm length – 450 mm
- Pivot drive – M8-DIN12
- Pivot centres – 60 mm
- Blade connection – 14 mm blade saddle
- Washer – ZD1230JET-T travel jet
- Pack quantity – 1 arm
