Description

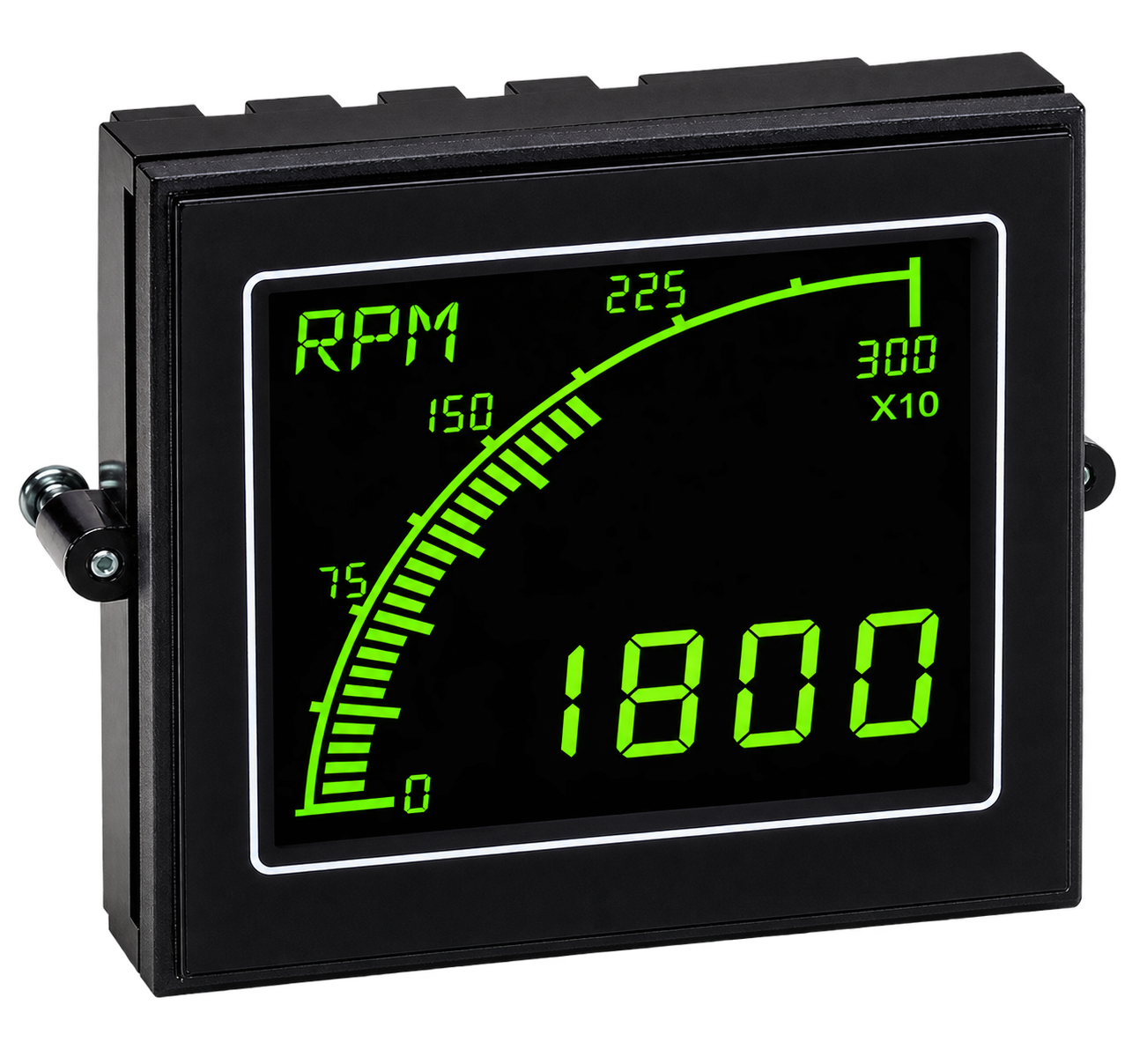

The most visible, easy to use, programmable panel meter on the market. The APM Rate Meter accepts high-speed pulse inputs from 0.001Hz to 60kHz (NPN, PNP, or Push-Pull) with 0.01% accuracy, making it well suited to motor speed, RPM, and production-line rate measurement, with process time measurement also supported. It combines the instant readability of an analog meter with the precision of a digital meter: a 40-segment curved bar graph gives an immediate visual indication, while four 12mm digits provide a precise numeric readout.
This variant uses a negative (dark-background) LCD, giving strong contrast in normal indoor and panel-mounted lighting conditions.
The colour-changing backlight can be programmed to alert operators when a monitored value is too high or too low, reducing the risk of equipment failure and improving efficiency. Free APM configuration software allows full customisation of scale and range, with 16 preset configurations selectable via back-panel switches and 20-point non-linearisation scaling for non-linear sensors. It is fitted with two configurable outputs (digital open collector or analog 4–20mA), supporting up to 10 independent alarm setpoints with a configurable digital output delay (0.5–120 seconds). Optional Modbus RTU communication and remote monitoring via Trumeter Cloud and the APM Gateway are also supported, making it easy to fold this meter into a wider monitoring or alarm system.
Typical applications include motor speed monitoring, pump controls, and production line rate measurement.
Specifications:
- Input Range: 0.001 – 60kHz (NPN, PNP or Push-Pull)
- Accuracy: 0.01%
- Power Supply: 12–24V DC
- Display: Negative LCD, 40-segment curved bar graph + four 12mm digits, adjustable brightness
- Outputs: Two configurable (digital open collector or analog 4–20mA), 10 alarm setpoints, optional Modbus RTU
- Non-linearisation: 20-point scaling table
- Dimensions: 72mm × 72mm × 53mm (57mm × 53mm screen, 68mm cutout)
- Certifications: CE, cUL, IP65, NEMA Type 4 & 12, RoHS, UL
- Brand: Trumeter
