Description
Trumeter Rate Signal Conditioner for Speed, Rate and Flow Applications

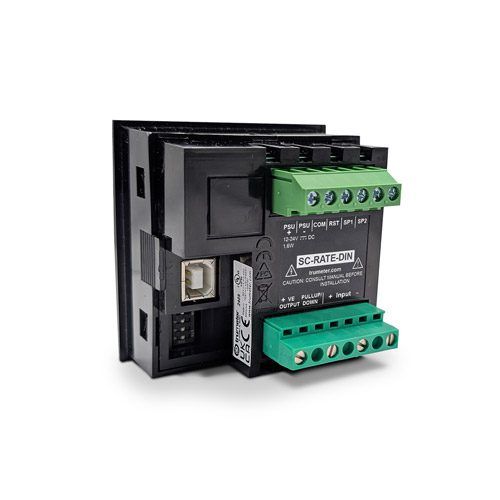

The Trumeter Rate Signal Conditioner (SC-RATE-DIN) is a DIN rail-mount device that measures input frequencies from 0-60kHz and is compatible with NPN, PNP, and Push-Pull sensors. It suits speed monitoring, flow control, and process automation. As a result, it reads directly from most common sensor output types without an additional converter.
- Wide 0-60kHz Input Range
- Compatible with NPN, PNP & Push-Pull Sensors
- 0.01% Accuracy for High-Precision Measurement
- Dual Outputs Configurable as Digital (Open Collector) or Analog (4-20mA)
- 10 Alarm Setpoints with Configurable Output Delays
- Optional Modbus RTU Communication
Because the unit reads NPN, PNP, and Push-Pull sensors without rewiring, it suits mixed fleets of flow meters and speed sensors on the same line. Therefore, the same conditioner can be redeployed across different sensor types as equipment changes.
Configuration and Installation
The unit clips onto standard Top Hat Slotted (TS35) DIN rail and measures 72mm x 72mm x 61mm. It runs from a 12-24V AC/DC supply, and an optional Modbus RTU output supports integration with SCADA or BMS platforms.
The unit carries CE, cUL, UL, RoHS, and IP20 ratings, covering most industrial and OEM panel-building requirements without extra certification paperwork.
Specifications
- Input: 0.001-60kHz (NPN, PNP, or Push-Pull)
- Power Supply: 12-24V AC/DC
- Outputs: 2 x Digital (Open Collector) or Analog (4-20mA)
- Communication: Modbus RTU (Optional)
- Accuracy: 0.01%
- Dimensions: 72mm x 72mm x 61mm
- Mounting: Top Hat Slotted (TS35) DIN Rail
- Certifications: CE, cUL, UL, RoHS, IP20
