Description

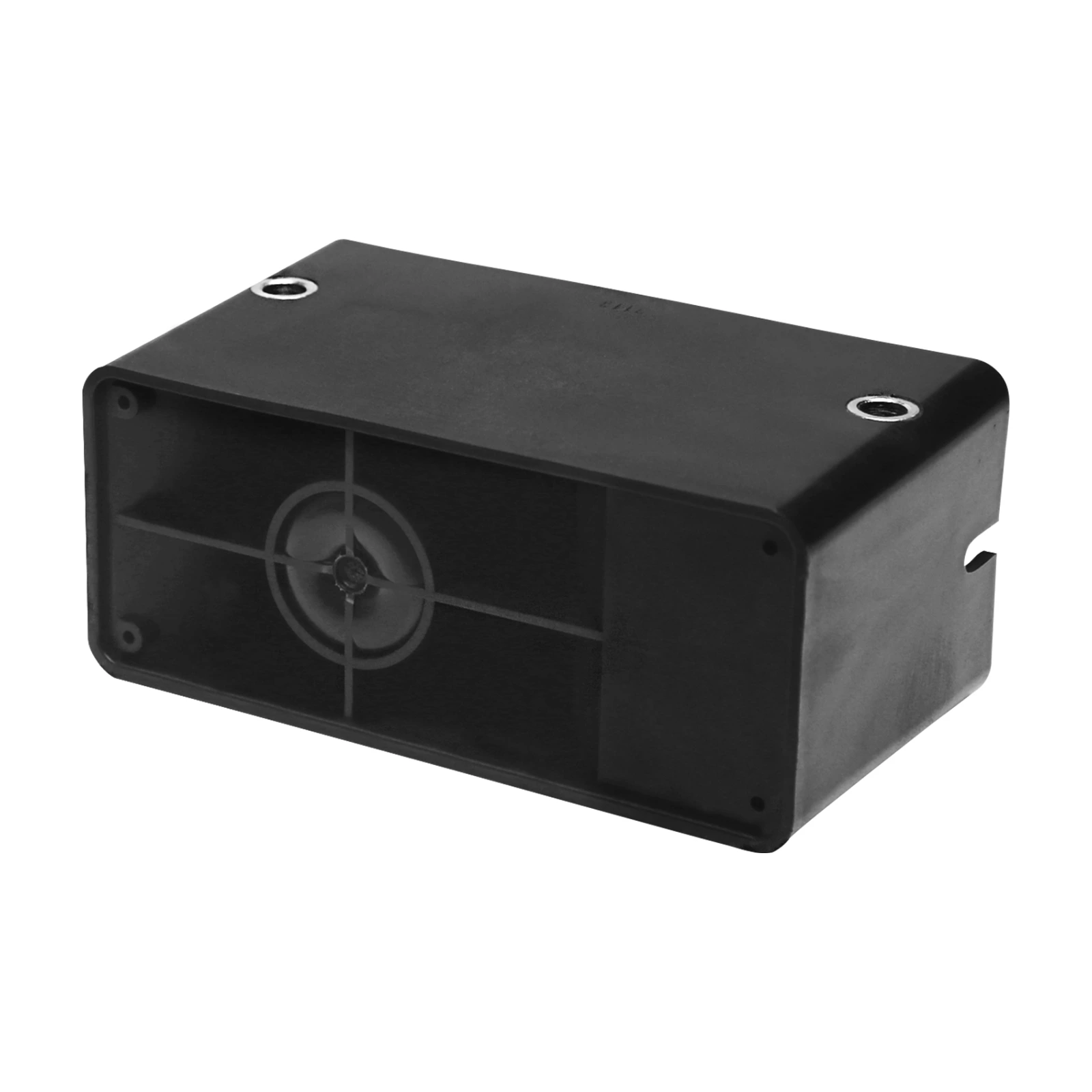

The ECCO EA7070 is a multi-frequency back-up alarm that warns people in the danger zone behind a reversing vehicle without the shrill, far-carrying beep of a conventional tonal alarm. It emits sound across multiple frequencies attenuated above 4000 Hz, so the warning is more directional and seems to fade faster outside the hazard area – ideal for night work, residential streets, depots and confined sites where noise complaints matter.
The EA7070 delivers a fixed 107 dB(A) output. It runs on 12–24V DC and draws 0.8 A, with SAE J994 Type B, CE, ECE R10, AMECA, IP66 approvals.
The electronics are sealed in epoxy against dust, moisture and vibration inside a reinforced nylon housing, and the alarm is rated from −40 °C to +85 °C. It mounts with two bolts (1/4″ Grade 5 recommended) and is backed by ECCO’s 5-year warranty.
Key Benefits
- Multi-frequency sound attenuated above 4000 Hz – directional and less intrusive than a tonal beeper
- 107 dB(A) fixed output
- 12–24V DC operation, 0.8 A draw
- Epoxy-sealed electronics resist dust, moisture and vibration
- Reinforced nylon housing, −40 °C to +85 °C
- SAE J994 Type B, CE, ECE R10, AMECA, IP66
- ECCO 5-year warranty
Specifications
- Part number – EA7070
- Brand – ECCO
- Series – Multi-Frequency
- Type – Multi-Frequency Back-Up Alarm
- Sound output – 107 dB(A)
- Operating voltage – 12–24V DC
- Current draw – 0.8 A
- Dimensions – H 81 × W 183 × D 102 mm
- Mounting – 2-bolt
- Approvals – SAE J994 Type B, CE, ECE R10, AMECA, IP66
- Operating temperature – −40 °C to +85 °C
- Warranty – 5 years
Applications
- Night-shift and urban delivery trucks
- Refuse, street-sweeping and council vehicles
- Construction and civil plant near residential areas
- Forklifts, yard tractors and depot vehicles
