Description

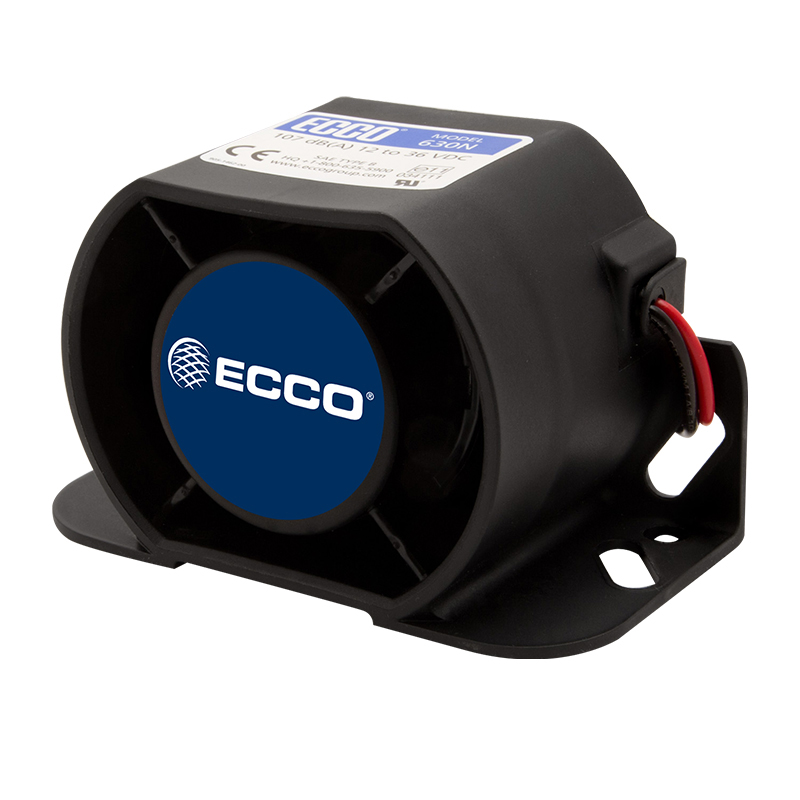

The ECCO 630N is a heavy-duty 107 dB(A) tonal back-up alarm from ECCO’s 600 Series, designed to meet the harsh operational demands of trucks, mining and construction equipment. Its loud SAE J994 Type B output cuts through high background noise on busy work sites.
A reverse-mounted speaker enhances sound and protects the speaker from dust and moisture ingress, while the reinforced nylon housing eliminates corrosion damage. The electronics are sealed in epoxy against dust, moisture and vibration, and the alarm is steam cleanable and pressure washable.
The 630N runs on 12–36 VDC, works on positive or negative ground systems and connects with 16 AWG wire leads. It is approved to SAE J994 Type B, CE, ECE R10, UL and AMECA, and ECCO backs it with a 5-year warranty.
Key Benefits
- Loud 107 dB(A) reversing warning, SAE J994 Type B
- Reverse-mounted speaker protects against dust and moisture
- Reinforced nylon housing eliminates corrosion damage
- Epoxy sealed; steam cleanable and pressure washable
- 12–36 VDC, positive or negative ground
- Backed by ECCO’s 5-year warranty
Specifications
- Part number – 630N
- Series – ECCO 600 Series back-up alarm (tonal)
- Sound output – 107 dB(A)
- Input voltage – 12–36 VDC
- Current draw – 1.2 A
- Approvals – SAE J994 Type B, CE, ECE R10, UL, AMECA
- Connection – 16 AWG blunt-cut wire leads
- Mounting – 2-bolt; 5/16-18 UNC Grade 5 bolts, 156 in·lb torque
- Dimensions – 127 mm W × 78 mm H × 68 mm D (96 mm mounting centres)
- Housing – Reinforced nylon, epoxy sealed
- Operating temperature – −40 °C to +85 °C
- Warranty – 5 years
Applications
- Trucks, tippers, utes and delivery vehicles
- Forklifts, loaders and earthmoving plant
- Waste, municipal and council fleet vehicles
- Agricultural and mining equipment
