Description

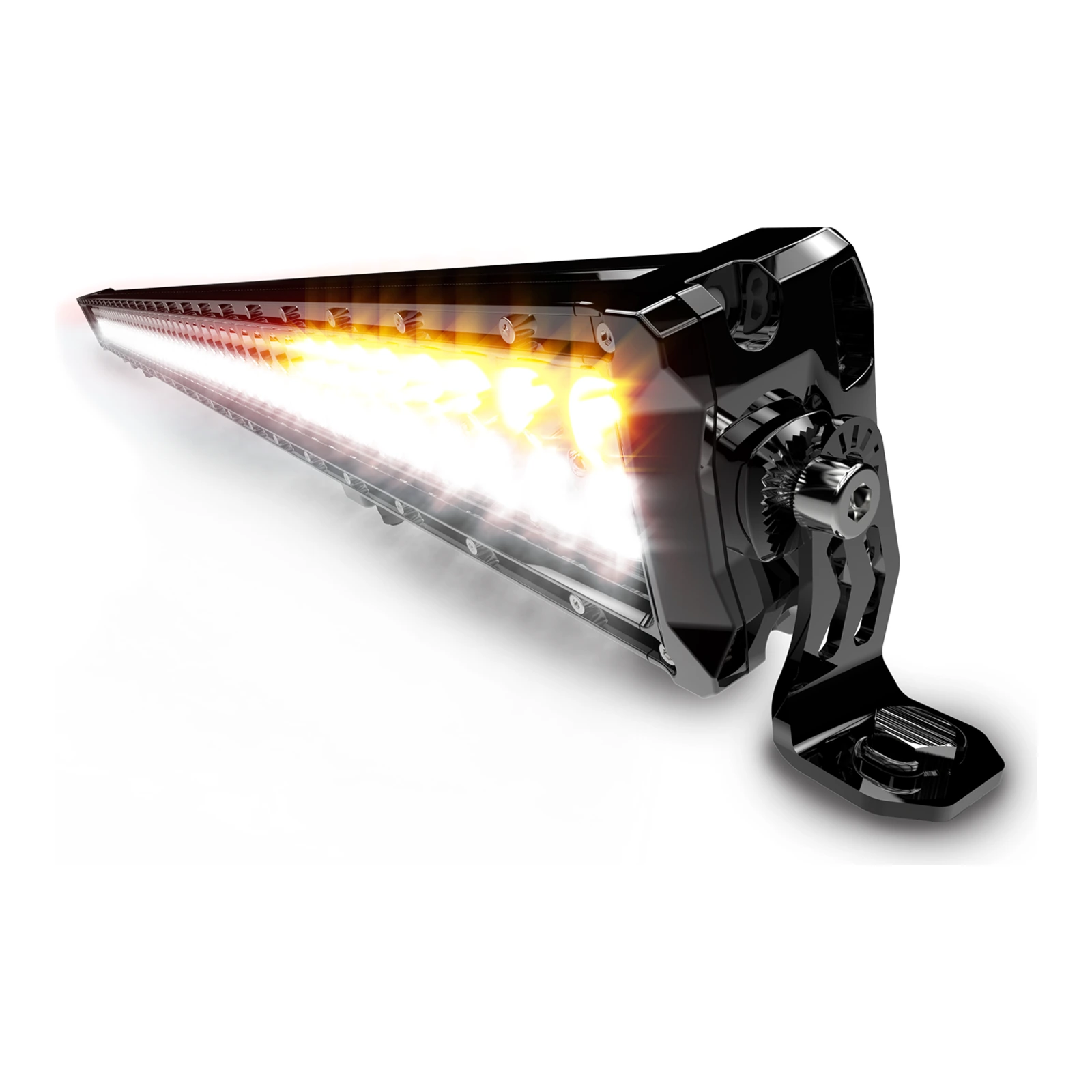

The ECCO EW3420 combination utility bar puts a high-intensity amber LED Safety Director™ and a powerful white worklight in a single 1275 mm aluminium housing. Exclusive dual-function optics let the same bar direct approaching traffic around a stopped vehicle, then illuminate the work area behind or in front of it once the job starts.
Five-watt LEDs deliver up to 36,695 candela in white and 6,500 candela in amber, with a beam distance of up to 381 m in white. Safety Director mode offers left, left solid, right, right solid, centre out, centre out solid, wig wag, alternating quad and alternating single flash, and a steady-burn amber mode is ideal for dust, fog and inclement weather. It runs on 12 VDC, drawing 10 A in white and 5 A in steady amber.
The EW3420 is IP67 sealed, rated SAE Class I and California Title 13 with CE marking and ECE R10 compliance, and has a weather-protected controller connection. Brackets are included for front or rear mounting, and ECCO offers a replacement controller box (ER3420CB), mounting kit (ER3420MK) and a 4.6 m extension harness (EZ3420-CBL). It is backed by ECCO’s 5-year warranty.
Key Benefits
- Amber LED Safety Director and white spot/flood worklight in one bar
- Up to 36,695 cd white and 6,500 cd amber output
- Nine arrow and warning patterns plus steady-burn amber
- IP67 sealed aluminium housing with polycarbonate lens
- Brackets for front or rear vehicle mounting
- SAE Class I, CA Title 13, CE and ECE R10
- Backed by a 5-year ECCO warranty
Specifications
- Part number – EW3420
- Type – Combination Safety Director™ / spot-flood worklight
- Length – 1275 mm
- Height × depth – 90 mm × 58 mm
- LED colour – Amber and white
- LEDs – 5 W LEDs
- Output – 36,695 cd white; 6,500 cd amber
- Beam distance – 381 m white; 116 m amber
- Flash patterns – 9 Safety Director patterns plus steady-burn amber
- Input voltage – 12 VDC
- Current draw – 10 A steady white; 5 A steady amber
- Ingress protection – IP67
- Construction – Aluminium housing, polycarbonate lens
- Mounting – Brackets included for front or rear mounting
- Accessories (sold separately) – ER3420CB controller box, ER3420MK mounting kit, EZ3420-CBL 4.6 m extension harness
- Approvals – SAE Class I, CA Title 13, CE, ECE R10
- Warranty – 5 years
Applications
- Utes, tray-backs and service bodies needing work and warning light
- Utility, power and telco line vehicles
- Tow trucks and roadside assistance
- Mining, agricultural and construction plant
