Description
Ionnic’s universal battery lockout kits turn a single battery master switch into a complete, lockable isolation point for any vehicle. Each kit combines a switch, a powder-coated mounting bracket, a Battery Isolator or Starter Isolator label and, on most kits, a jump-start receptacle, so one part number covers everything needed at the isolation point.

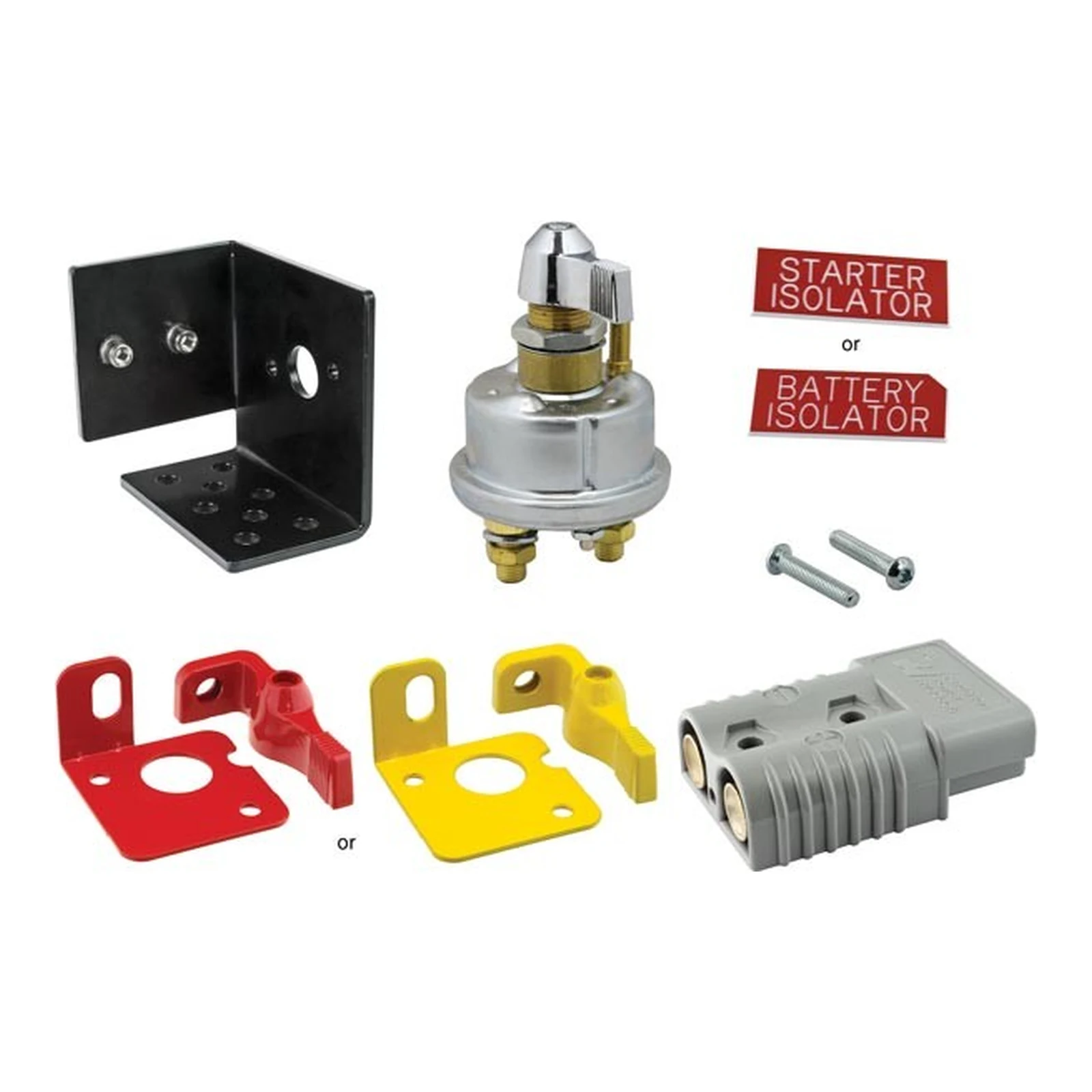

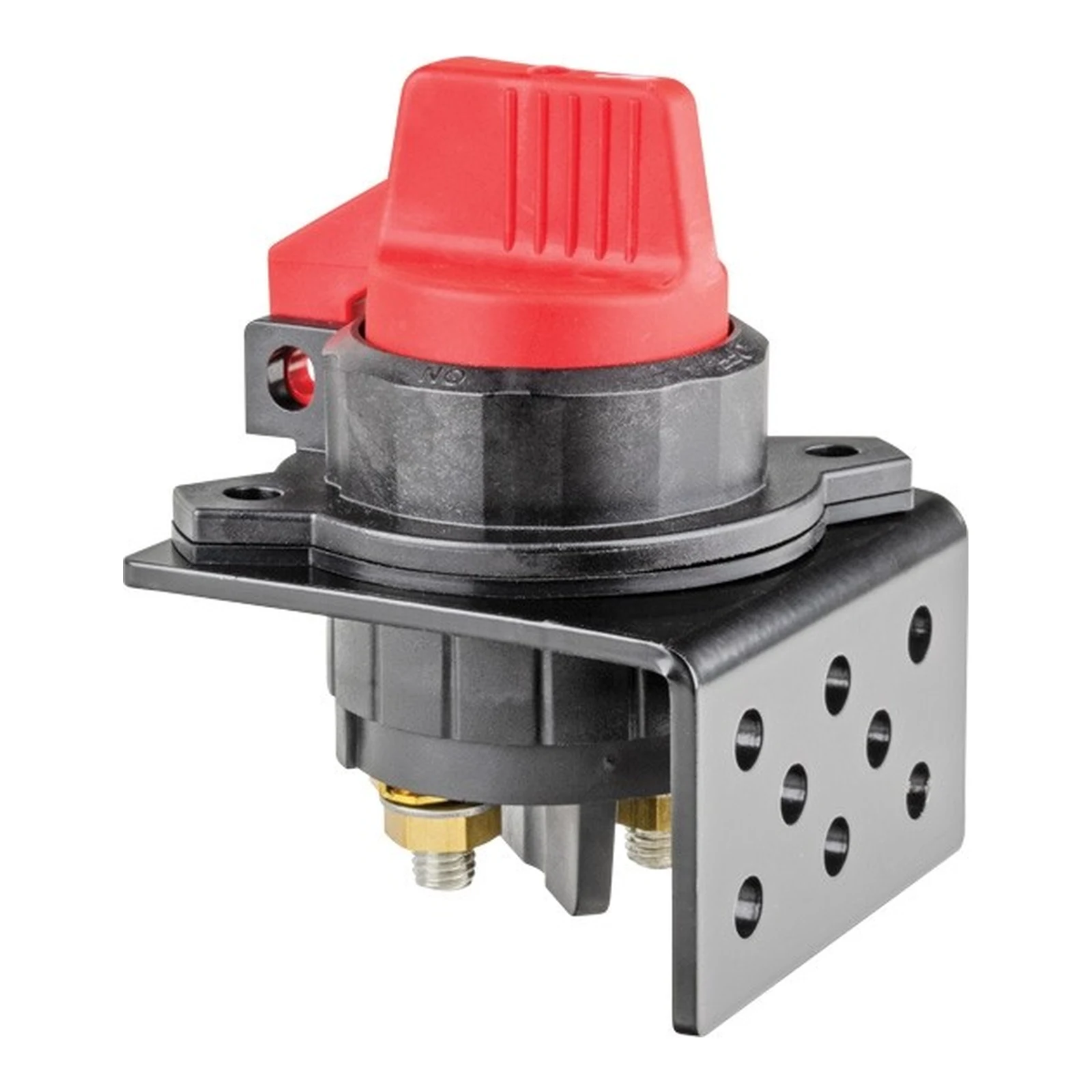

Kits are built on either the BMS-001/BMS-002 polymer switch, with integrated lockout and IP67/IP69K sealing, or the metal BMS-17 switch with its BMS-18 lockout bracket and 20A auxiliary contact. Choose no receptacle, a 175A (SB175) or a 350A (SB350) jump-start receptacle. Red kits are labelled as battery isolators and yellow kits as starter isolators.
Kits are supplied in component form, and most components are also available separately. Brackets are powder-coated aluminium and made in Australia. Fit a red battery-isolator kit and a yellow starter-isolator kit together for full battery and starter lockout.
Key Benefits
- Complete isolation point in one part number
- Battery isolator (red) or starter isolator (yellow)
- No receptacle, 175A or 350A jump-start receptacle
- BMS-001/002 polymer or BMS-17 metal switch
- Padlockable in the OFF position
- Australian-made powder-coated brackets
Specifications

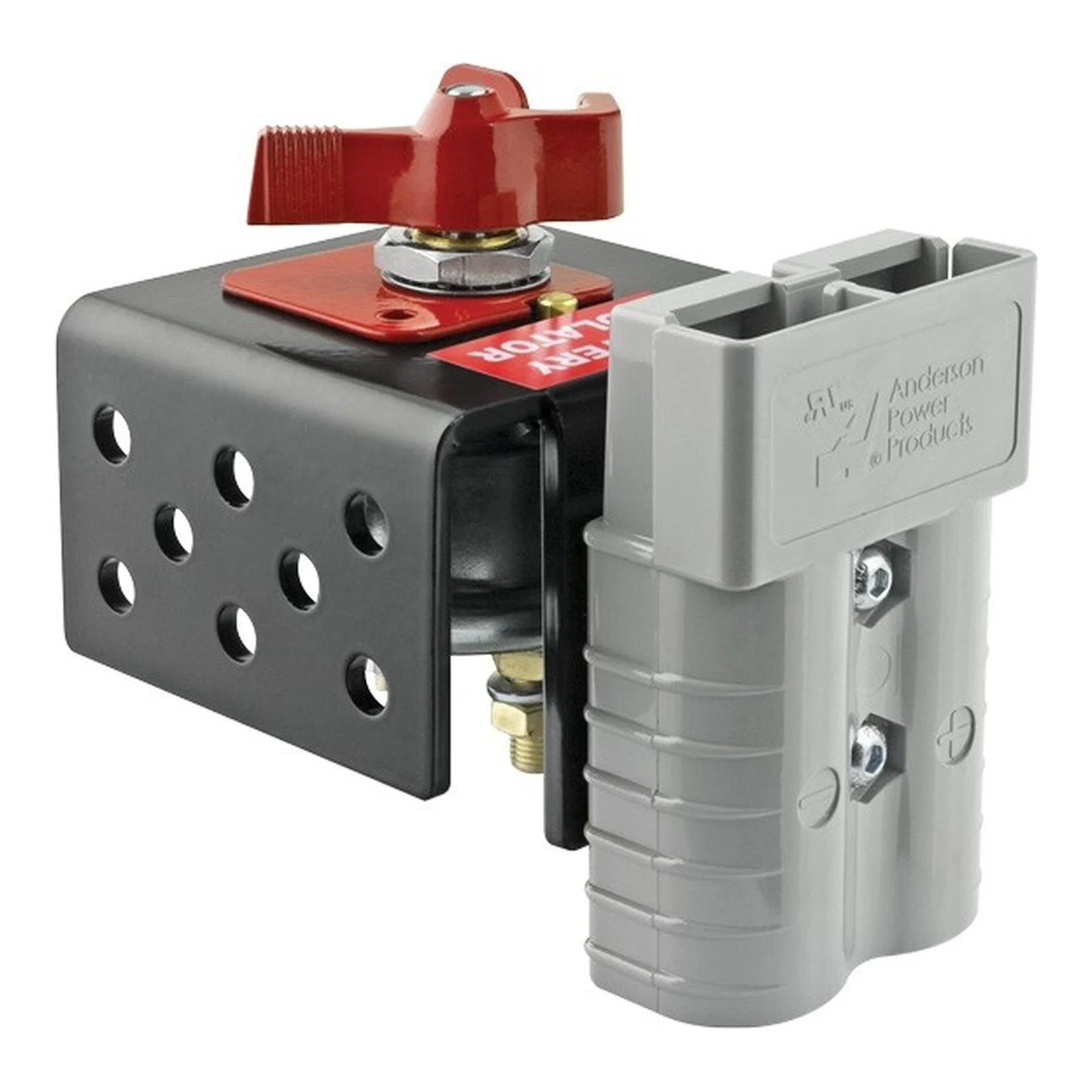

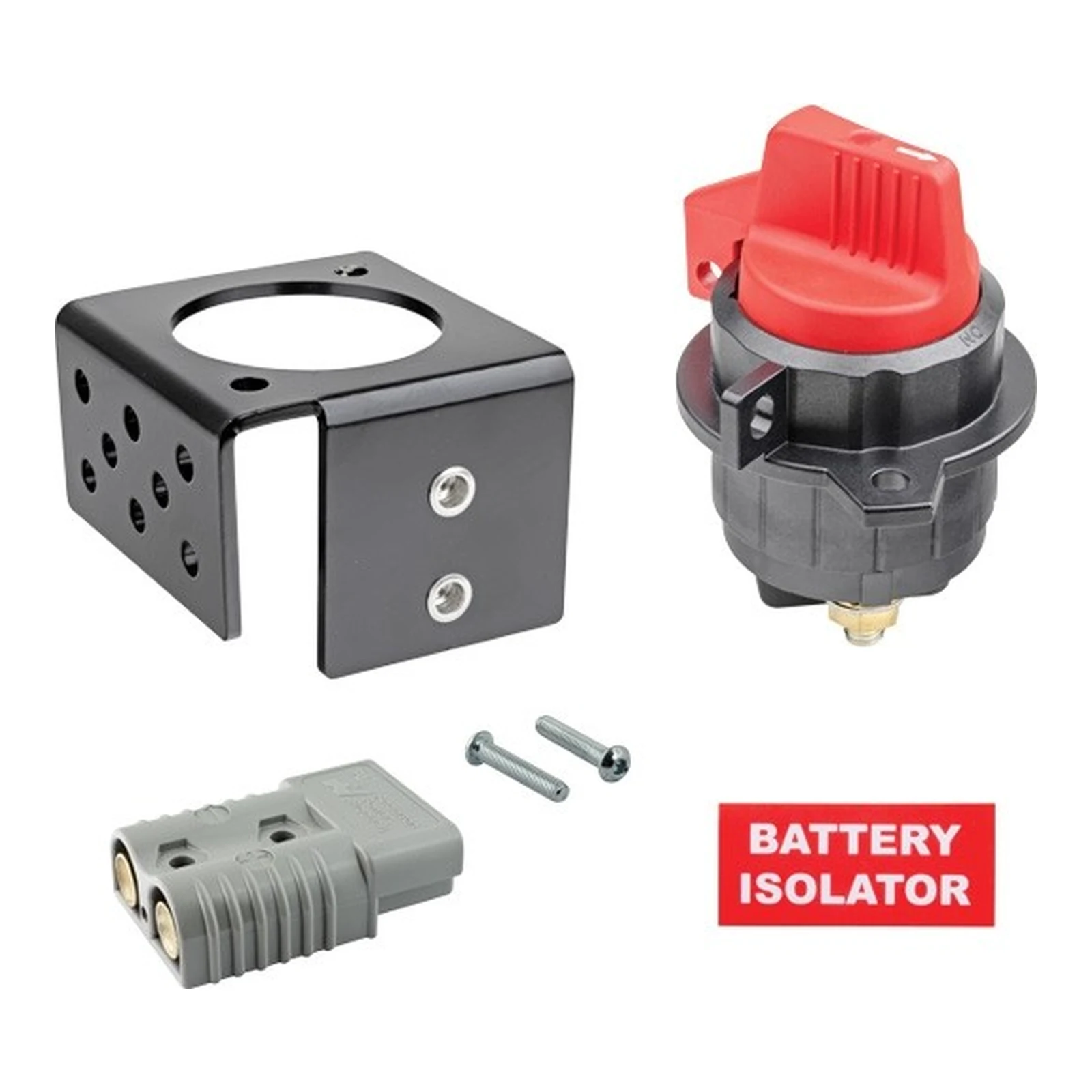

- Part numbers – MSU-01, MSU-02 (BMS-001/002, no receptacle, BMS-003BKT); MSU-14, MSU-15 (BMS-001/002 + SB175, BMS-004BKT); MSU-18, MSU-19 (BMS-001/002 + SB350, BMS-004BKT); MSU-04, MSU-05 (BMS-17 + SB175, BMS-005BKT); MSU-08, MSU-09 (BMS-17 + SB350, BMS-005BKT)
- Function – Battery isolator (red): MSU-01, MSU-04, MSU-08, MSU-14, MSU-18; starter isolator (yellow): MSU-02, MSU-05, MSU-09, MSU-15, MSU-19
- Voltage – 6–36V DC
- Switch rating – BMS-001/002 2000A/250A; BMS-17 1000A/300A with 20A auxiliary
- Brackets – Powder-coated aluminium
- Supplied – In component form; BMS-001/002 kits include gasket
- Made in – Australia
Applications
- Mine-site vehicles without a dedicated kit
- Trucks, buses and mobile plant
- Battery and starter lockout/tagout
- Remote jump-starting points
