Description

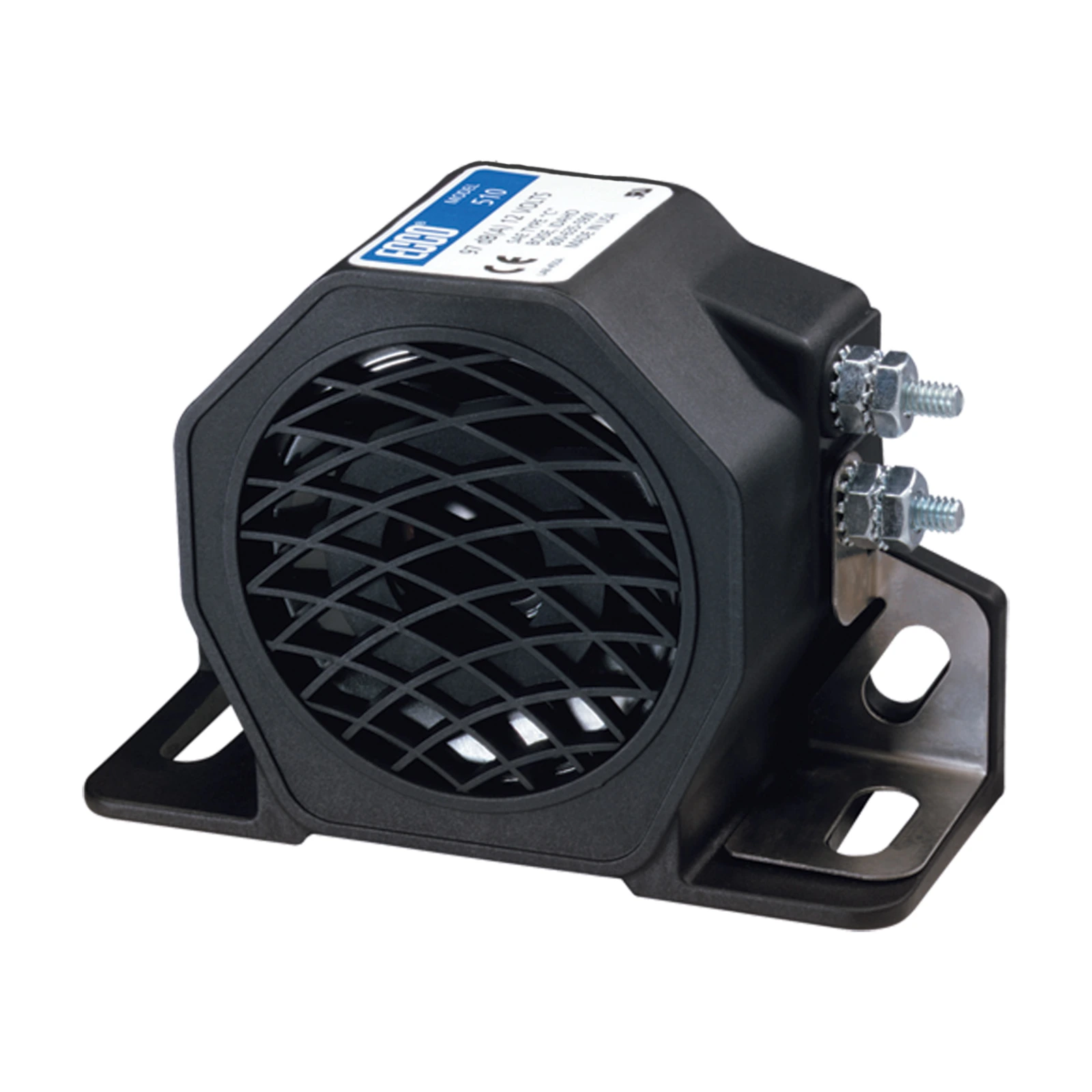

The ECCO 505 is part of the 500 Series, ECCO’s most compact and popular back-up alarm range, giving a cost-effective reversing warning with ECCO quality and reliability. Self-resonating circuitry produces a fixed 87 dB(A) tonal warning.
A glass-filled nylon housing and epoxy-encapsulated electronics give excellent protection against moisture, dust and vibration, and the alarm is rated from −40 °C to +85 °C. The compact body and universal mounting bracket make it easy to place on utes, trucks, trailers and mobile plant, and it is self-grounding. Wiring is via an 8-32 uni-stud connection.
It runs on 12–24V DC and draws 0.1 A, with SAE J994 Type D, CE, ECE R10, UL, AMECA, IP65 approvals. Mount with 1/4″ Grade 5 bolts. ECCO backs the 500 Series with a 2-year warranty.
Key Benefits
- 87 dB(A) tonal output
- Compact 71 × 102 × 41 mm body with universal mounting bracket
- Self-grounding, 8-32 uni-stud wiring connection
- Glass-filled nylon housing, epoxy-sealed electronics
- 12–24V DC, 0.1 A draw
- SAE J994 Type D, CE, ECE R10, UL, AMECA, IP65
- ECCO 2-year warranty
Specifications
- Part number – 505
- Brand – ECCO
- Series – 500 Series
- Type – Tonal Back-Up Alarm
- Sound output – 87 dB(A)
- Operating voltage – 12–24V DC
- Current draw – 0.1 A
- Dimensions – H 71 × W 102 × D 41 mm
- Mounting – 2-bolt
- Approvals – SAE J994 Type D, CE, ECE R10, UL, AMECA, IP65
- Operating temperature – −40 °C to +85 °C
- Warranty – 2 years
Applications
- Utes, light trucks and vans
- Trailers, tippers and small plant
- Forklifts and warehouse equipment
- Fleet replacement alarms
