Description

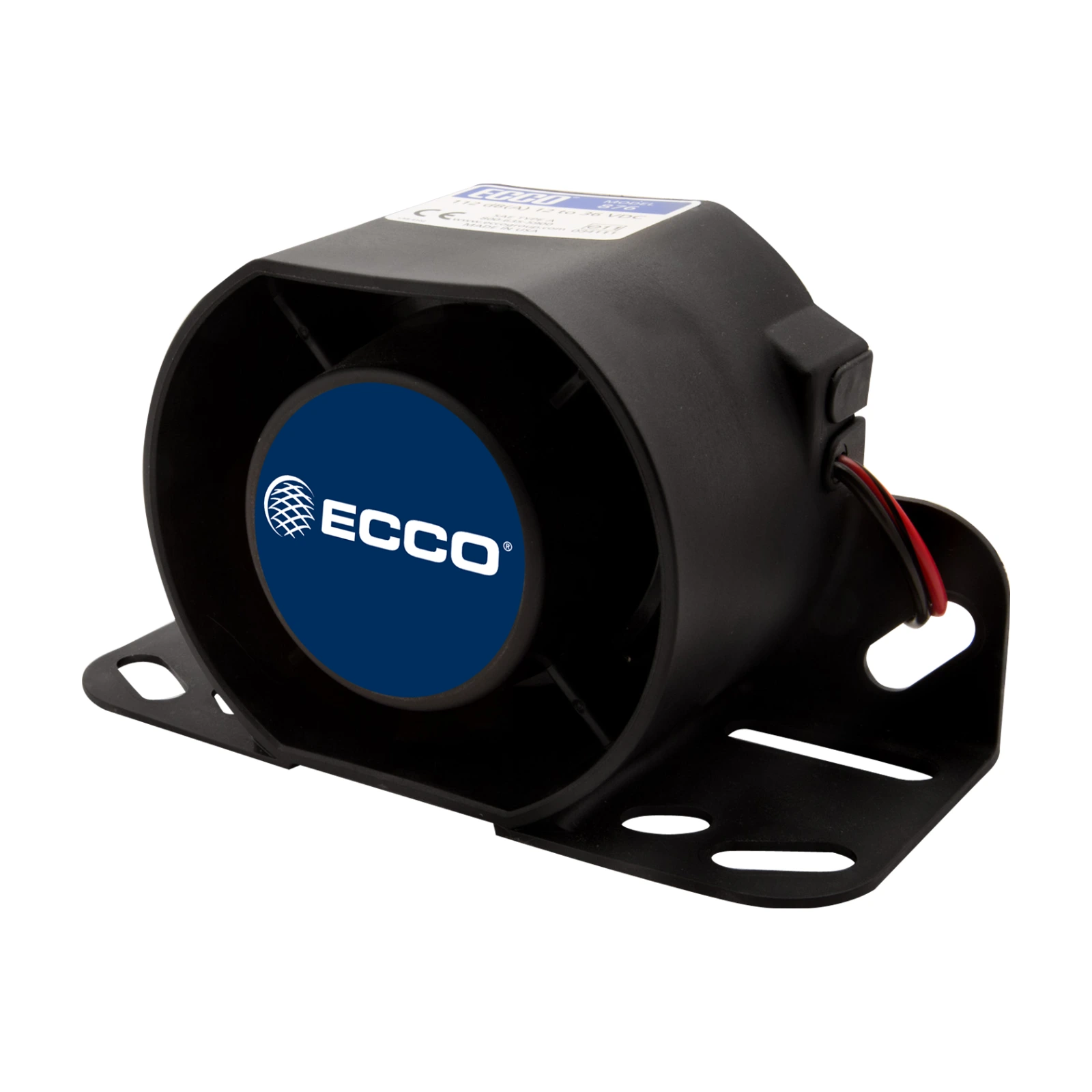

The ECCO 876N is an 800 Series heavy-duty back-up alarm for the toughest fleet equipment. A reverse-mounted speaker enhances sound and protects against dust and moisture ingress, and the reinforced nylon housing will not corrode.
It delivers a fixed 112 dB(A) tonal warning – among the loudest in ECCO’s range. It runs on 12–36V DC and draws 1.3 A, with SAE J994 Type A, CE, ECE R10, UL, AMECA approvals.
It is sealed in epoxy against dust, moisture and vibration, steam cleanable and pressure washable, and rated from −40 °C to +85 °C. This model mounts by two bolts or the supplied bracket, with 16 AWG blunt-cut leads. ECCO backs the 800 Series with a 5-year warranty.
Key Benefits
- 112 dB(A) heavy-duty tonal output
- Reverse-mounted speaker resists dust and moisture
- Corrosion-free reinforced nylon housing
- 2-bolt or bracket mounting
- Steam cleanable and pressure washable
- 12–36V DC, 1.3 A draw
- ECCO 5-year warranty
Specifications
- Part number – 876N
- Brand – ECCO
- Series – 800 Series
- Type – Tonal Back-Up Alarm
- Sound output – 112 dB(A)
- Operating voltage – 12–36V DC
- Current draw – 1.3 A
- Dimensions – H 104 × W 180 × D 79 mm
- Mounting – 2-bolt or bracket
- Approvals – SAE J994 Type A, CE, ECE R10, UL, AMECA
- Operating temperature – −40 °C to +85 °C
- Warranty – 5 years
Applications
- Mining haul trucks and service vehicles
- Earthmoving, quarry and construction plant
- Heavy trucks and prime movers
- Port and heavy industrial equipment
