Description

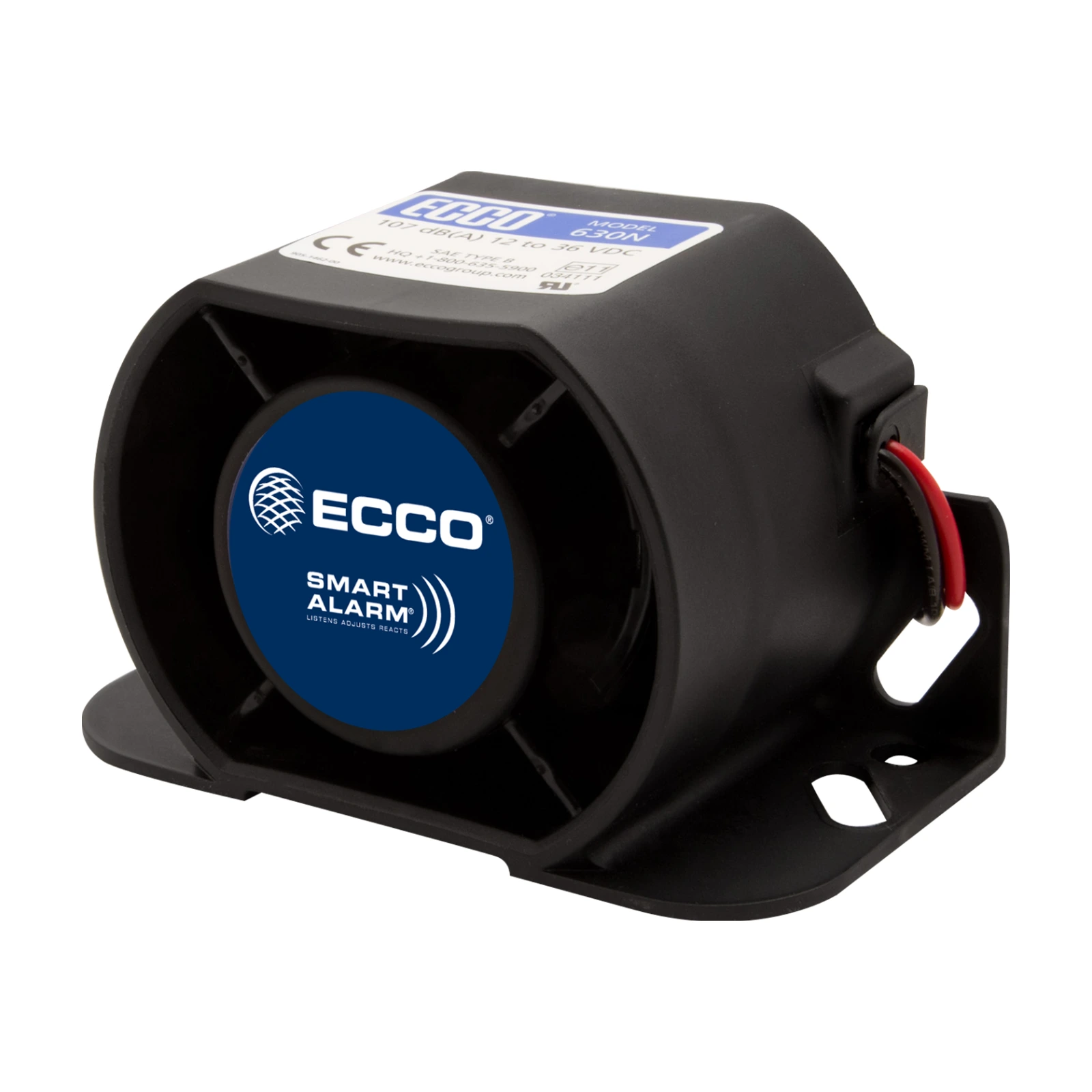

The ECCO SA901N is a 600 Series back-up alarm, built to meet the harsh operating demands of fleet equipment. Its reverse-mounted speaker improves sound projection and keeps dust and moisture away from the speaker, while the reinforced nylon housing eliminates corrosion damage.
As a Smart Alarm® model it measures ambient noise and adjusts its output within 82–107 dB(A), so the warning stays safe without contributing to noise pollution. It runs on 12–24V DC and draws 0.3 A, with CE, ECE R10, UL, IP64 approvals.
The electronics are sealed in epoxy, the alarm is steam cleanable and pressure washable, and it works on positive or negative ground systems from −40 °C to +85 °C. Wiring is via 16 AWG blunt-cut leads and it mounts with 5/16-18 UNC Grade 5 bolts. Warranty: 5 years.
Key Benefits
- Reverse-mounted speaker protects against dust and moisture
- Smart Alarm® self-adjusts to ambient noise (82–107 dB(A))
- Reinforced nylon housing – no corrosion
- Steam cleanable and pressure washable
- Works on positive or negative ground systems
- 12–24V DC, 0.3 A draw
- Warranty: 5 years
Specifications
- Part number – SA901N
- Brand – ECCO
- Series – 600 Series
- Type – Smart Back-Up Alarm
- Sound output – 82–107 dB(A)
- Operating voltage – 12–24V DC
- Current draw – 0.3 A
- Dimensions – H 79 × W 127 × D 69 mm
- Mounting – 2-bolt
- Approvals – CE, ECE R10, UL, IP64
- Operating temperature – −40 °C to +85 °C
- Warranty – 5 years
Applications
- Trucks, tippers and prime movers
- Earthmoving and construction plant
- Refuse and municipal fleets
- Mining and quarry vehicles
