Description

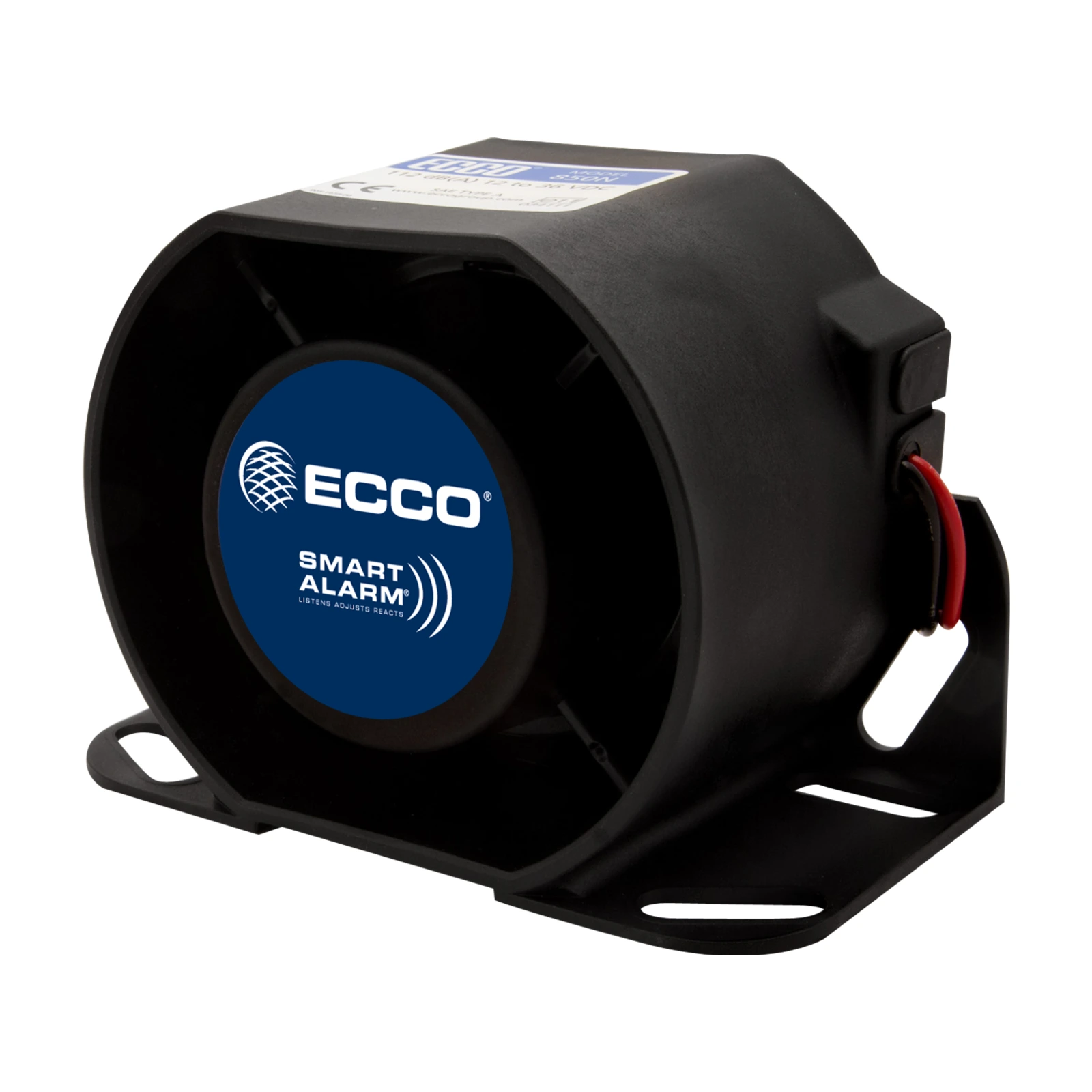

The ECCO SA917N is an 800 Series heavy-duty back-up alarm for the toughest fleet equipment. A reverse-mounted speaker enhances sound and protects against dust and moisture ingress, and the reinforced nylon housing will not corrode.
As a Smart Alarm® model it measures ambient noise and adjusts its output within 87–112 dB(A), reaching up to 112 dB(A) on the loudest sites. It runs on 12–24V DC and draws 1.5 A, with SAE J994 Type F, CE, ECE R10 approvals.
It is sealed in epoxy against dust, moisture and vibration, steam cleanable and pressure washable, and rated from −40 °C to +85 °C. This model is a 2-bolt mount, with 16 AWG blunt-cut leads. ECCO backs the 800 Series with a 5-year warranty.
Key Benefits
- Smart Alarm® self-adjusts up to 112 dB(A)
- Reverse-mounted speaker resists dust and moisture
- Corrosion-free reinforced nylon housing
- 2-bolt mounting
- Steam cleanable and pressure washable
- 12–24V DC, 1.5 A draw
- ECCO 5-year warranty
Specifications
- Part number – SA917N
- Brand – ECCO
- Series – 800 Series
- Type – Smart Back-Up Alarm
- Sound output – 87–112 dB(A)
- Operating voltage – 12–24V DC
- Current draw – 1.5 A
- Dimensions – H 104 × W 145 × D 79 mm
- Mounting – 2-bolt
- Approvals – SAE J994 Type F, CE, ECE R10
- Operating temperature – −40 °C to +85 °C
- Warranty – 5 years
Applications
- Mining haul trucks and service vehicles
- Earthmoving, quarry and construction plant
- Heavy trucks and prime movers
- Port and heavy industrial equipment
