Description

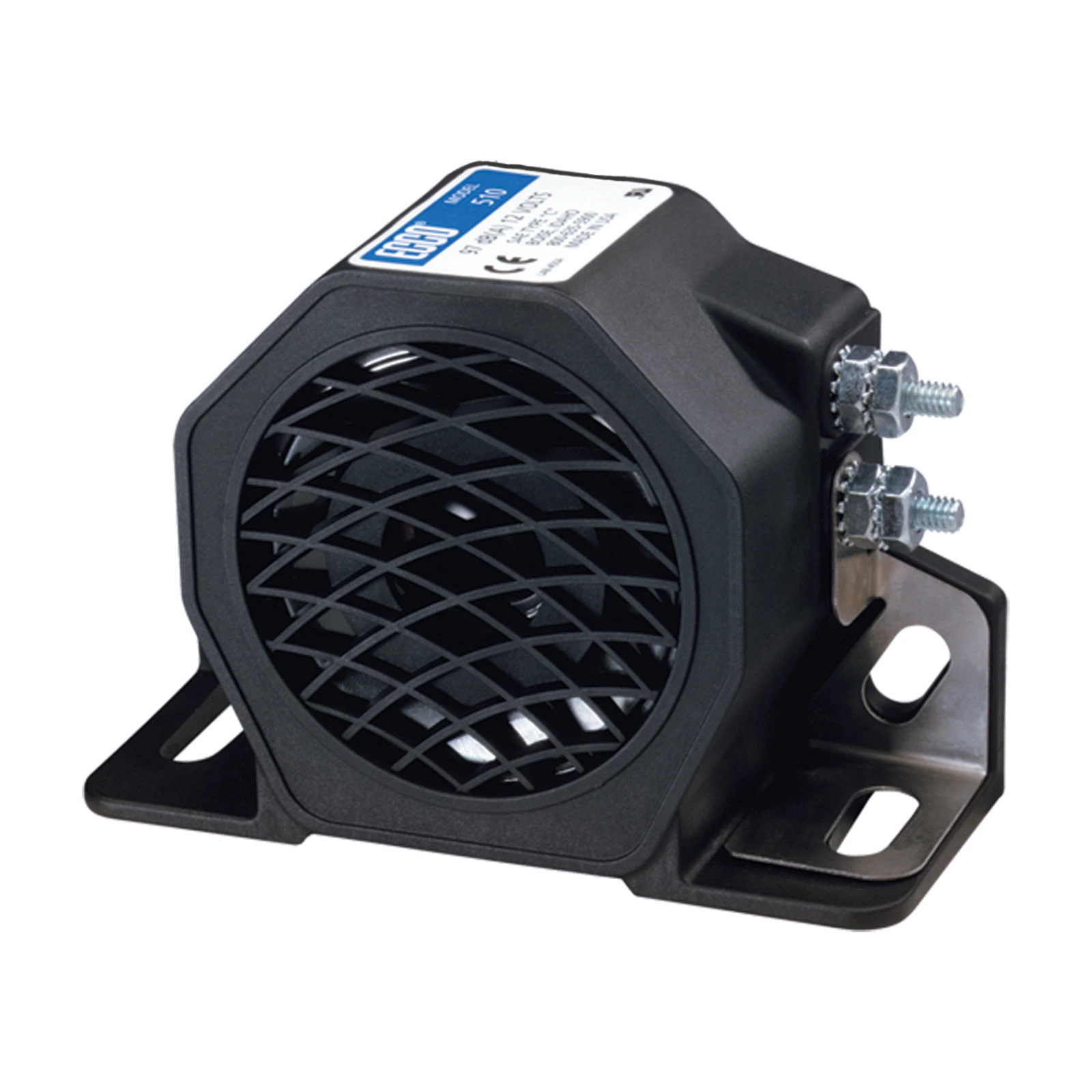

The ECCO SA950 is part of the 500 Series, ECCO’s most compact and popular back-up alarm range, giving a cost-effective reversing warning with ECCO quality and reliability. It is a Smart Alarm® model that measures ambient noise and adjusts its output within 82–102 dB(A), keeping the warning safe without being annoying – which also discourages operators from disconnecting it.
A glass-filled nylon housing and epoxy-encapsulated electronics give excellent protection against moisture, dust and vibration, and the alarm is rated from −40 °C to +85 °C. The compact body and universal mounting bracket make it easy to place on utes, trucks, trailers and mobile plant, and it is self-grounding. Wiring is via an 8-32 uni-stud connection.
It runs on 12–24V DC and draws 0.4 A, with CE, ECE R10, UL, IP65 approvals. Mount with 1/4″ Grade 5 bolts. ECCO backs the 500 Series with a 2-year warranty.
Key Benefits
- Smart Alarm® self-adjusts to ambient noise (82–102 dB(A))
- Compact 71 × 102 × 41 mm body with universal mounting bracket
- Self-grounding, 8-32 uni-stud wiring connection
- Glass-filled nylon housing, epoxy-sealed electronics
- 12–24V DC, 0.4 A draw
- CE, ECE R10, UL, IP65
- ECCO 2-year warranty
Specifications
- Part number – SA950
- Brand – ECCO
- Series – 500 Series
- Type – Smart Back-Up Alarm
- Sound output – 82–102 dB(A)
- Operating voltage – 12–24V DC
- Current draw – 0.4 A
- Dimensions – H 71 × W 102 × D 41 mm
- Mounting – 2-bolt
- Approvals – CE, ECE R10, UL, IP65
- Operating temperature – −40 °C to +85 °C
- Warranty – 2 years
Applications
- Utes, light trucks and vans
- Trailers, tippers and small plant
- Forklifts and warehouse equipment
- Fleet replacement alarms
