Description

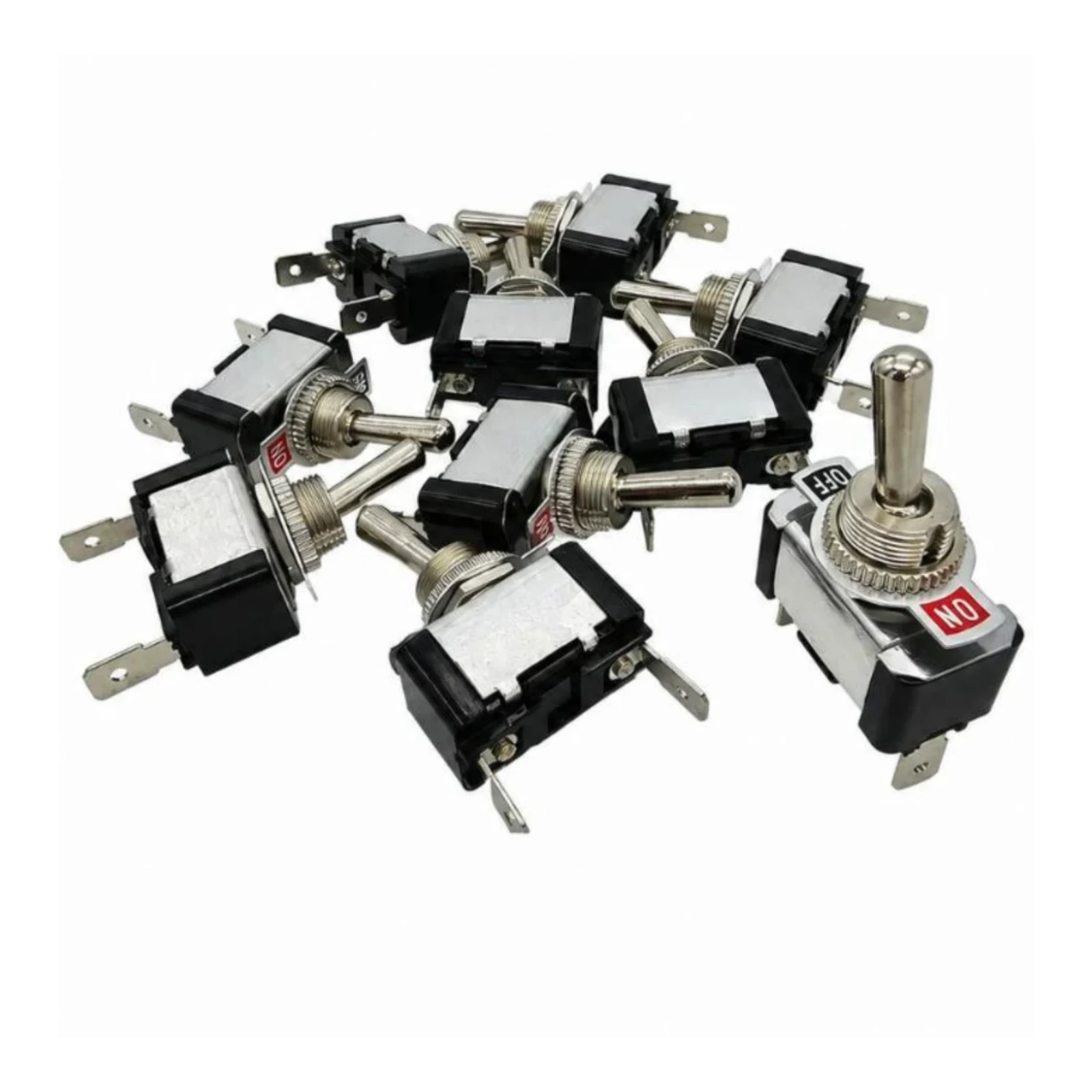

This ten-pack contains R13-5 series maintained ON/OFF toggle switches for builders, installers and workshops that require multiple matching SPST controls.
Key Features
- Pack of ten matching toggle switches
- Maintained SPST ON/OFF operation
- 20A published current rating
- Compact 12.5mm panel mounting
- Cost-effective workshop or production quantity
Specifications
- SKU: R13-5-10
- Pack quantity: 10 switches
- Switch series: R13-5
- Configuration: SPST
- Switch positions: Maintained ON/OFF
- Published current rating: 20A

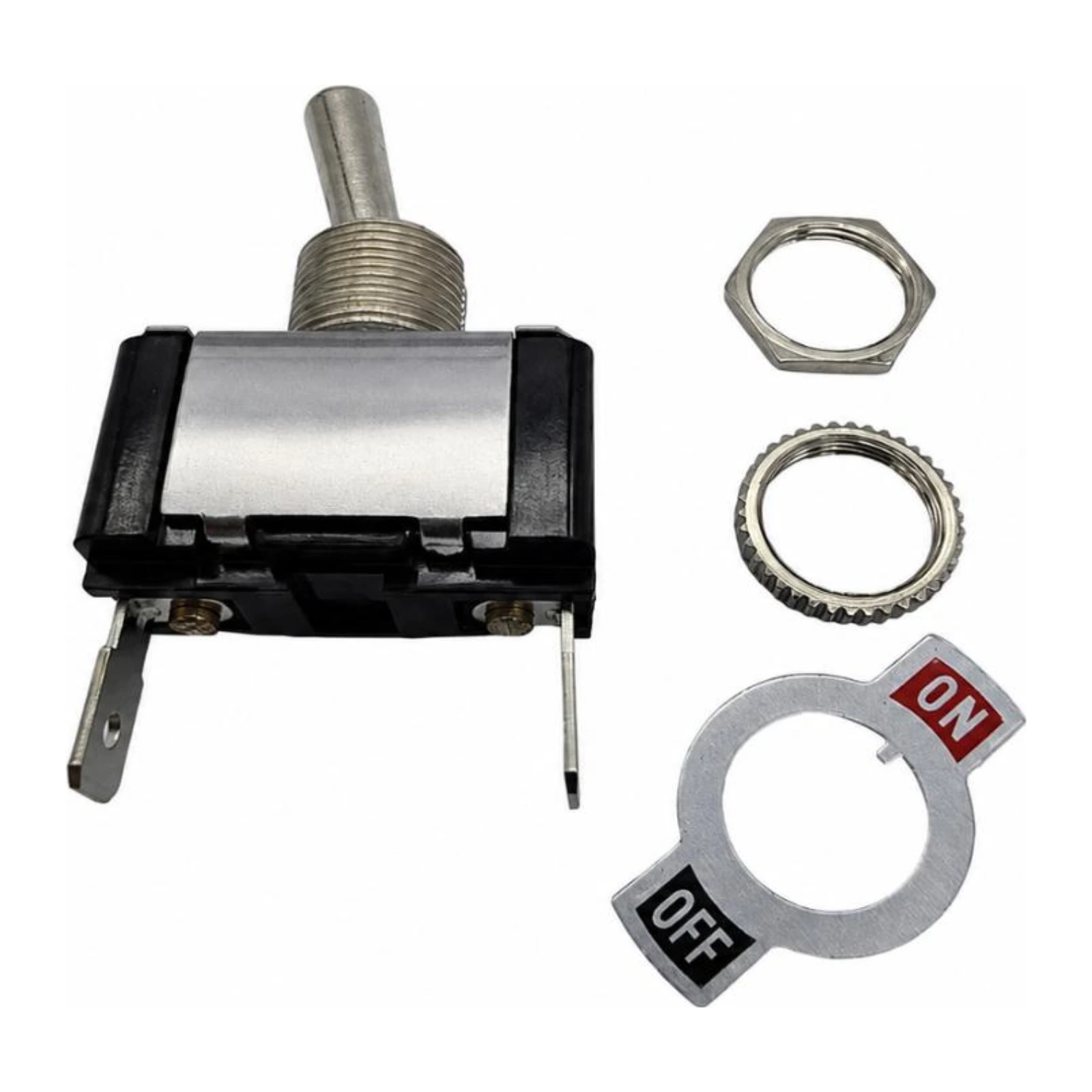

- Panel cut-out: 12.5mm diameter
- Body dimensions: 28mm L × 15mm W × 16mm H
- Thread length: 10mm
- Toggle length: 16mm above the thread
Applications
- Workshop stock and replacement programs
- Fleet and production installations

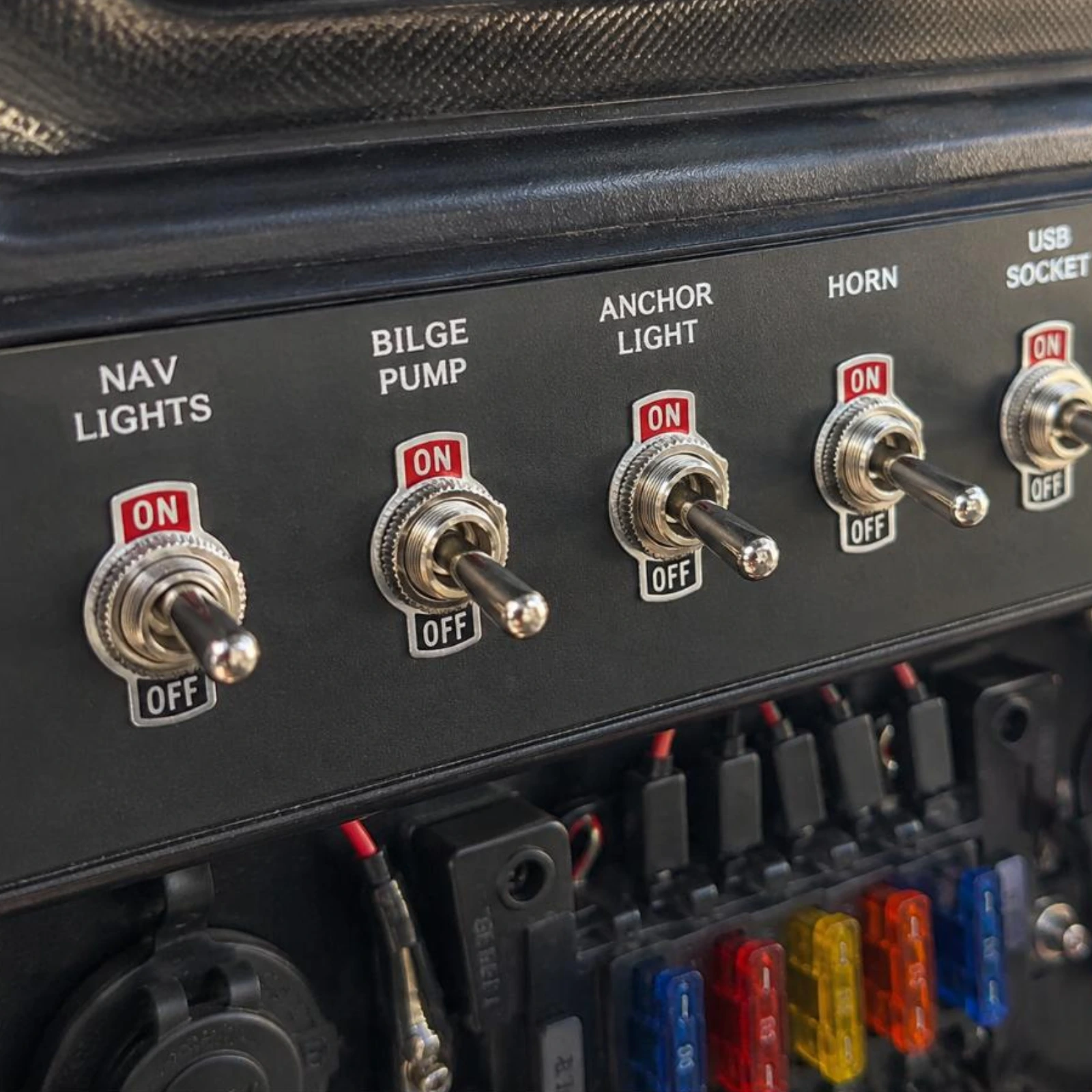

- Automotive accessory panels
- Equipment builds requiring multiple matching switches
Installation Notes
Confirm the required operating voltage, load, terminal arrangement and 12.5mm panel cut-out before installation. Use correctly sized wiring and circuit protection for each connected circuit.
